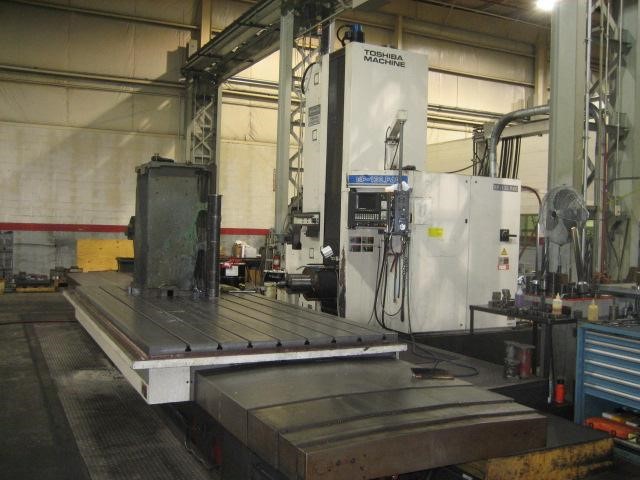

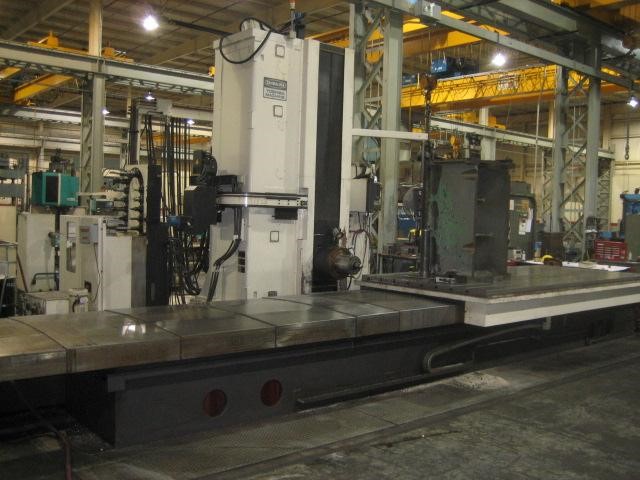

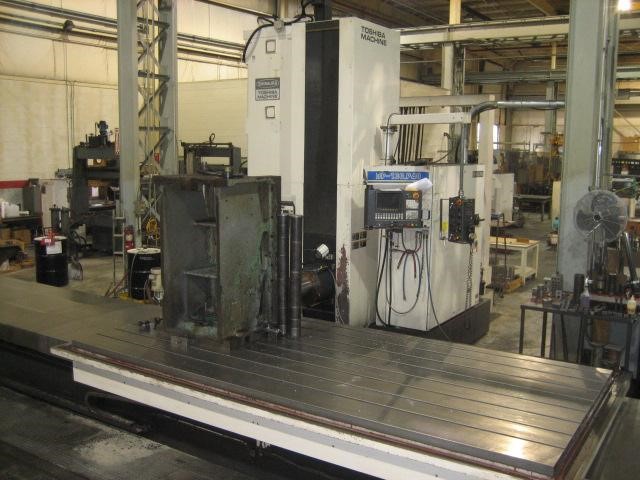

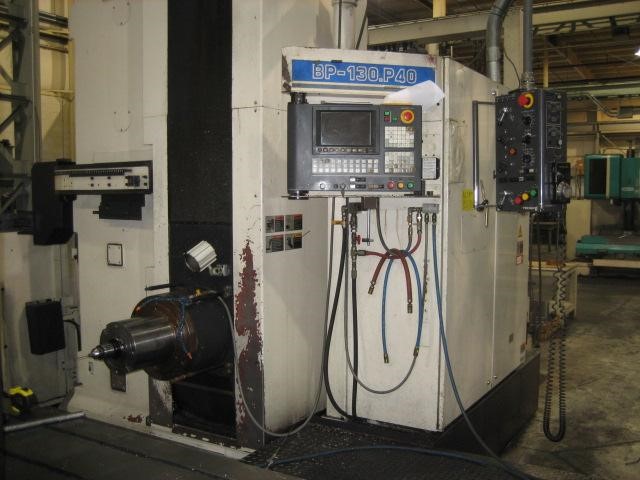

2000 TOSHIBA BP-130.P40, MBORING MILLS, HORIZ, TABLE TYPE CNC W/ ATC ACHINE # 8337

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


BP-130.P40
Boring Mills
Horizontal, Table Type NC, CNC
used
90000 (LB)
2000
$0.00

Description

Reference #: 8337
Machine Type:
Year: 2000
Manufacturer: Toshiba
Model: BP-130.P40
Control: Tosnuc 888
Condition: Used
Under Power: Yes
Code: B5751A
Spindle:
Spindle Diameter: 5.12"
Spindle Motor: 30 HP
Spindle Speed (Maximum): 5-2,500 RPM
Spindle Taper: 50 Taper
Travels:
X-Axis (Table) Travel: 160"
Y-Axis (Vertical Spindle) Travel: 90"
Z-Axis (Spindle in/out) Travel: 28"
W-Axis (Column in/out) Travel: 60"
Feedrates:
Rapid Traverse Rate X, Y, Z: 393 IPM
Rapid Traverse Rate w: 196 IPM
Table:
Table Size: 70" x 155"
Weight Capacity: 55,000 Lbs
Tool Changer:
Number Tools: 38 ATC
General:
Machine Weight: 90,000 Lbs
Floor Space: 311" x 483"
Equipped With:
Tosnuc 888 Control
38 Pocket Automatic Tool Changer
Coolant Thru Spindle 140 PSI
Flood Coolant
Chip Conveyor
