2000 O-M LTD. VT5-16N, CNC VERTICAL TURRET LATHE MACHINE # 8896

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


VT5-16N
Vertical Turret Lathes VTL
CNC Vertical Turret Lathes
used
41800 (LB)
2000
$0.00

Feature Video

Description

Reference #: 8896
Machine Type: Vertical Lathes
Year: 2000
Manufacturer: O-M Ltd.
Model: VT5-16N

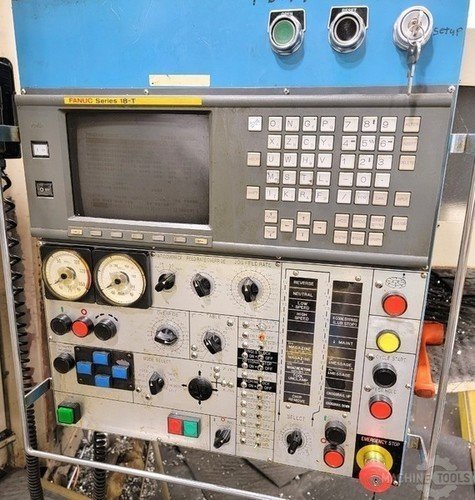

Control: Fanuc 18i
Condition: Used - Very Good
Under Power: Yes
Code: B6200A
Capacity:
Table Diameter: 63"
Maximum Swing: 78.74"
Maximum Height Under Rail: 62.99"
Spindle:
Speeds: 320 RPM
Motor: 75 HP
Head(s):
Number Of Heads: ??
Type Head(s): ??
X-Axis Travel: ??
Z-Axis Travel: ?
Tool Changer:
Number Of Positions: ??
Dimensions:
Floor Space: 205" x 169"
Height: 214"
Weight: 41,800 Lbs
Equipped With
Fanuc 18i CNC
2-Speed Gearbox

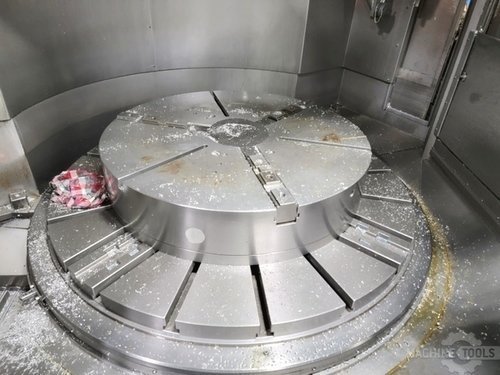

63" Table Diameter Combination T-Slotted
48" 3- Jaw Manual Extra Height Chuck on Table ($20,000 added value)
Side Discharge Chip Conveyor

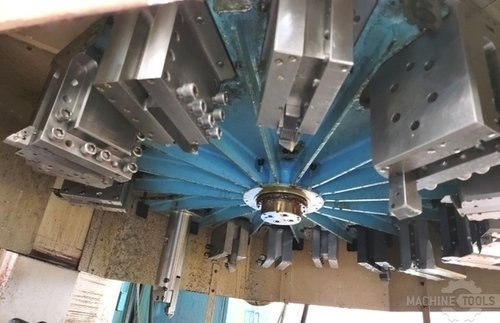

All Available O-M Proprietary Tool Holders in ATC Photos 40k Added Value
Multitap Transformer
Air Filtration Unit Installed
Tight tolerance cutting application machine from aerospace shop
Video:
Terms:
Payment in Full Prior to Shipment or Machines Can be Secured and Ordered
with Deposits with Shipping Dates 2 Weeks on Schedule on Local Prep &
Rigging. Preparation and Rigging costs apply
