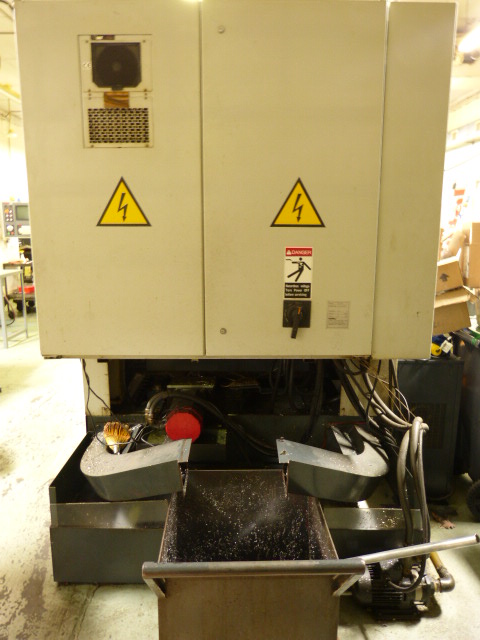

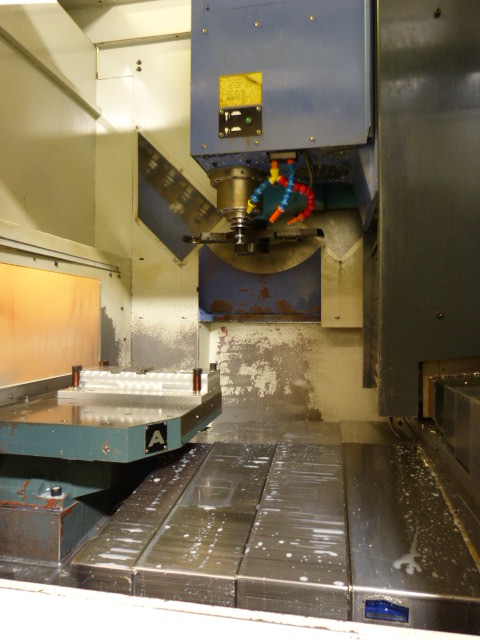

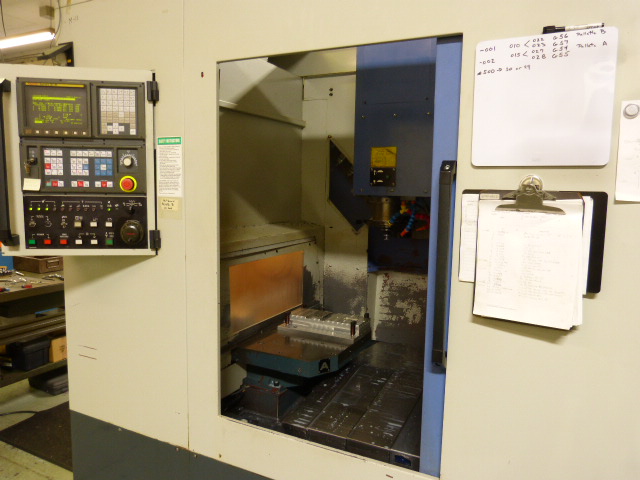

2000 LEADWELL SV500, MACHINING CENTER MACHINE # 7530

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


SV500
Machining Centers Vertical Horizontal CNC
Vertical Machining Centers
used
16500 (LB)
2000
$0.00

Feature Video

Description

Reference #:7530
Machine Type:CNC Verticals
Year:2000
Manufacturer:Leadwell
Model:SV500
Control:Fanuc 21iM
Condition:Good
Under Power:Yes
Code:M0185P
Location:PA

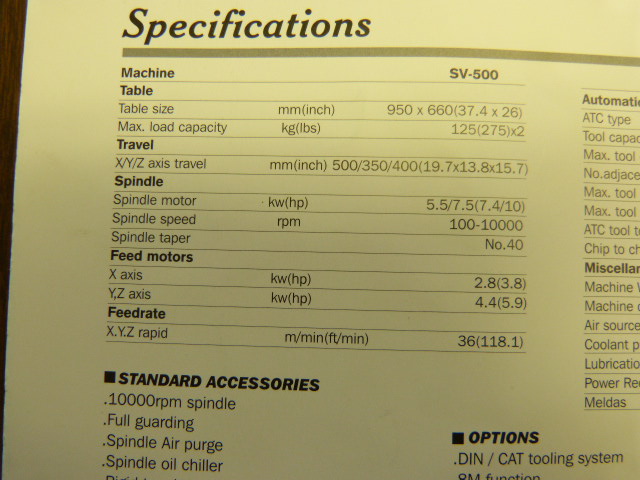

Table:

  • Table Size: 37.4" x 26"
  • Maximum Table Load: 275 lb. per table
  • Table Height: 29.5"

Travels:

  • X-Axis Travel: 19.7"
  • Y-Axis Travel: 13.8"
  • Z-Axis Travel: 15.7"

Spindle:

  • Spindle Speeds Minimum - Maximum: 100-10,000 RPM
  • Spindle Taper: BT 40
  • Main Motor (30 min. / cont.): 10 / 7.4 HP

Speeds:

  • Rapids (X-Y-Z): 1417 inches/min
  • Feed Rate (X-Y-Z): 118.1 inches/min.

Tool Changer:

  • Tool Changer Positions: 32 ATC
  • Tool Change Time (Tool-Tool): 2 seconds
  • Tool Change Time (Chip-Chip): 4 seconds
  • Max. Tool Length: 9.8"
  • Max. Tool Weight: 15.4 pounds
  • Max. Tool Diameter: 4"

General:

  • Length: 167.7"
  • Width: 63"
  • Height: 90"
  • Weight: 16,500 pounds

Equipped With:

  • Automatic Pallet Changer
  • Fanuc 21M Control, motors, and drives
  • Approximately 30+ Tool Holders Available

Comments:

  • Very Good Condition - only about 9,000 hours of use
  • Traveling Column
  • Machine still holds tenths tolerances

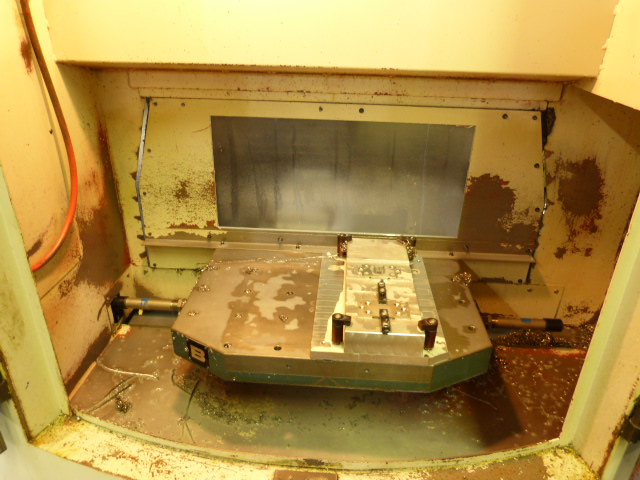

  • Rotary Pallet
  • "The brochure states 10 HP, but I assure you this machine is more likely 15HP+"
  • Machine can be inspected under power in plant in eastern Pennsylvania

Video:

  • https://youtu.be/jZ5xkgfnpY0
