2000 HAAS SL-20, TURNING CENTER # 7779

Add to Your File

Brand: 2000 HAAS SL-20, TURNING CENTER # 7779

Model: SL-20

Serial No. :

Category: Lathes and Turning Centers CNC

Sub Category: Slant Bed Turning center

Condition: new

Weight: 9000 (LB)

Year Built: 2000

Status:

Price: $0.00

Description

Reference #:7779
Machine Type:CNC Lathes
Year:2000
Manufacturer:Haas
Model:SL-20

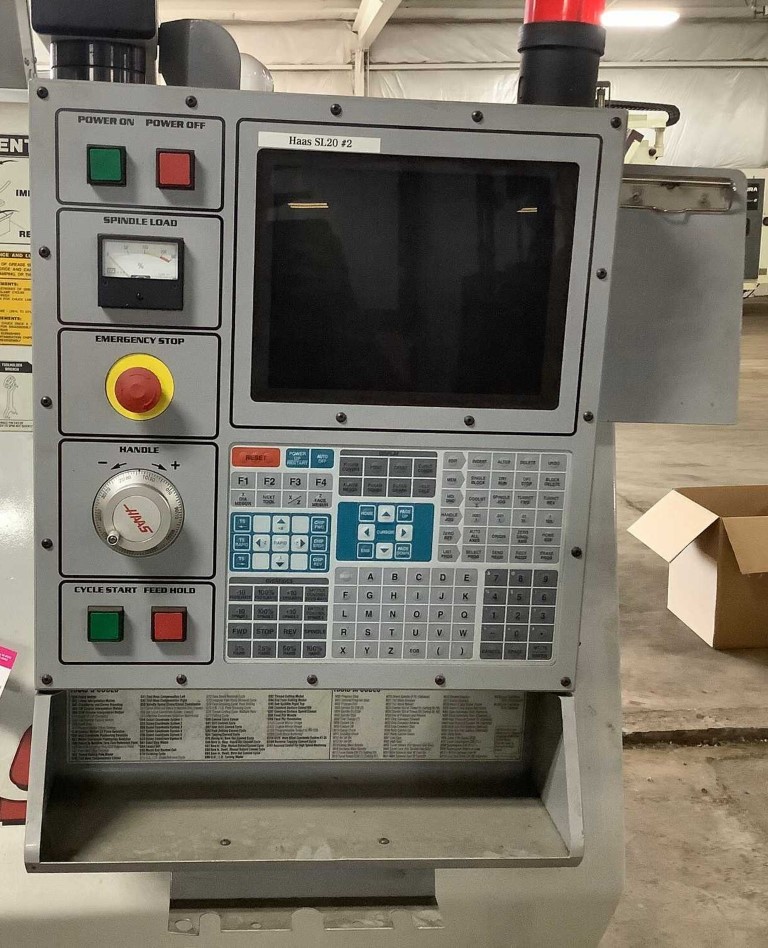

Control:Haas 32 BIT/CRT
Condition:Used
Under Power:Yes
Code:L2150

Capacity:

Swing / Swing Over Cross Slide: 23" / 9.5"
Max. Turning Diameter / Max. Turning Length: 10.3" / 20"
Distance Between Centers: 24"

Spindle:

Spindle Speeds: 6 - 4,000 RPM
Spindle Bore / Bar Cap: 3" / 2"
Spindle Nose: A2-6
Main Motor: 20 HP

Turret:

Number of Positions: 10 Positions
X-Axis Travel: 8.45"
Z-Axis Travel: 20"
Rapid Traverse Rate: 710 IPM

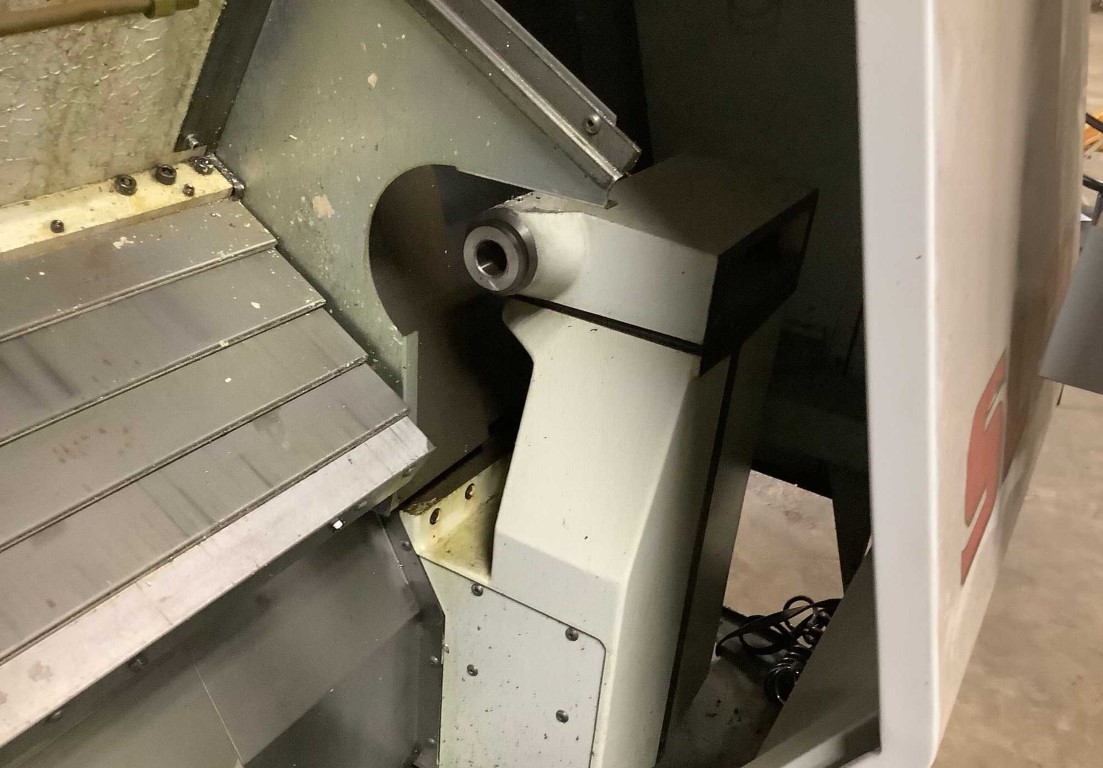

Tailstock:

Stroke of Body / Quill: 20" / 3.1"
Quill Diameter / Taper: 3.13" / MT #4

Dimensions:

Floor Space: 96"L x 62"W x 70"H
Weight (approx.): 9,000 Lbs
Electrics: 208 / 230 V / 3 Ph

Equipped With:

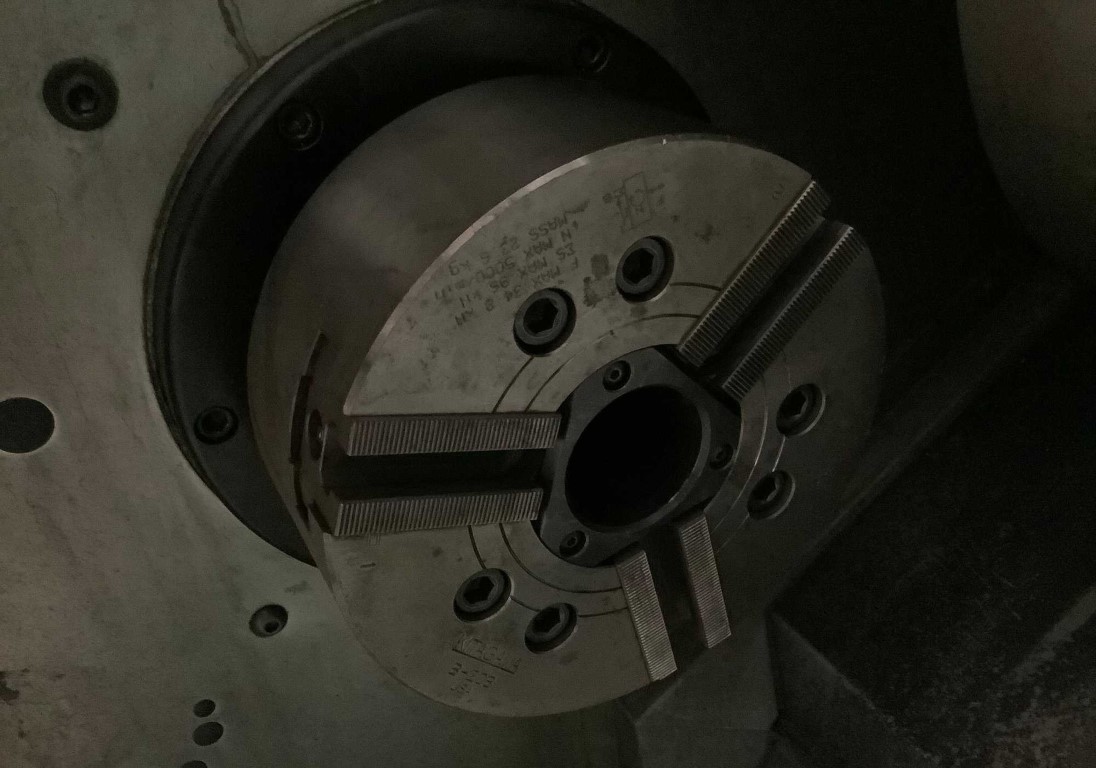

Kitagawa 3 Jaw 8 in Chuck
