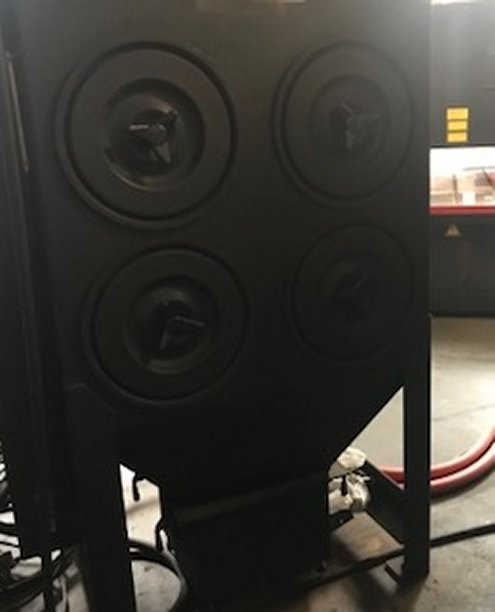

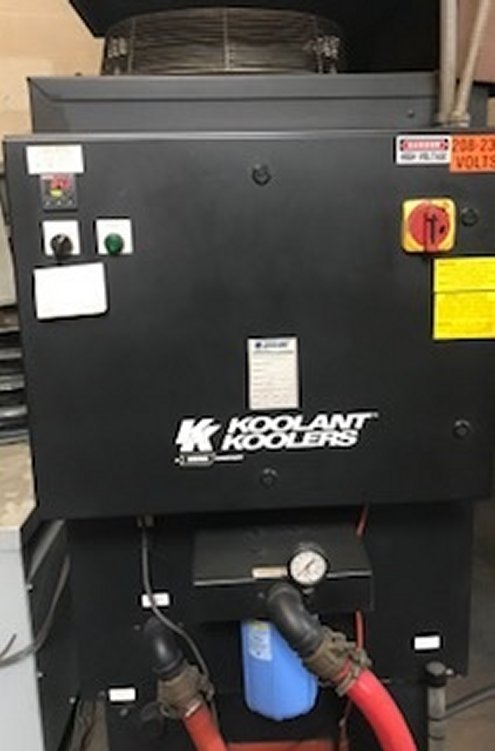

Description

Technical Specifications

MOTION PACKAGE
Travel Method X axis for work piece movement, Y axis for cutting head

movement
Control Method X, Y & Z simultaneous 3 axis control and B axis
Drive Motors FANUC AC Servo (X, Y, Z, and B)
Maximum Sheet Size 61" (Y) x 198" (X) with one repositioning cycle
Maximum Axis Travel 61" (Y) x 99" (X) x 11.8" (Z) x 0.78" (B)
Maximum Cutting Speed 787 IPM
Maximum Table Speed 3,149 IPM. per axis (4,454"/min. 45 vector)
Maximum Speed Z-Axis 787 IPM
Positioning Accuracy 0.0004"/20"
Repeatability 0.0004"
Maximum Material Weight 727 lbs. (5 x 10 x 3/8" or 4 x 8 x 1/2")
Number of Clamps 3
Work Chute 66" (Y) x 21" (X)
Assist Gas 4 ports, part program selectable
Machine Size 125.0" x 150.0" x 95.0"
Machine Weight 18,700 lbs including laser resonator
Electrical Requirements 208 VAC, 3 phase, 60 Hz., 10 KVA

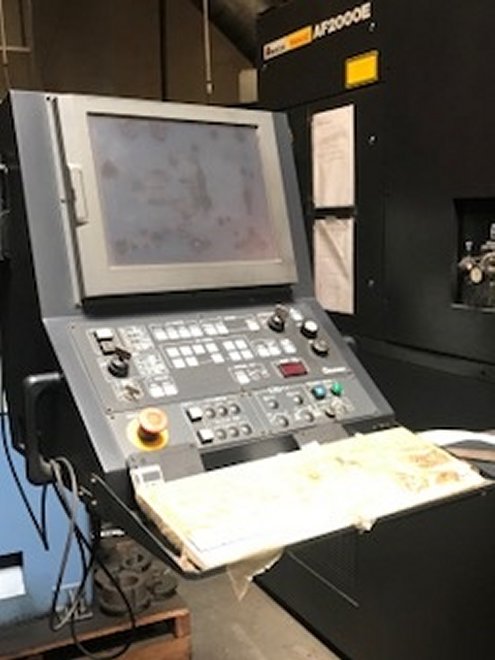

CNC CONTROLLER

Model AMNC-F
Display LCD Color Graphics Display
Control Function X, Y, Z-Axis Simultaneous and Focus Lens B-axis, and Laser

Power control (CW, Gated Pulse, Pierce Routines etc.).

Data Input Method Manual (MDI), Edit, DNC, or 3 " PC compatible disk.
Minimum Command Unit 0.0001" (X, Y, Z)
Minimum Travel Unit 0.0001" (X, Y, Z)
Standard Memory 1 mb
Optional Memory 2 mb
Hard Drive 10 gb
Operating Modes Automatic and Manual
Display Modes Program Contents, Position Information, Program Check, Settings,
Parameters, Beam Diameter Compensation, Assist Gas Status, Self Diagnostics
Interlock Displays Cooling Water Status, Gas Pressure Status, Vacuum Status,
Turbo Blower Malfunction, Shutter Status, Beam Power, Resonator Discharge,
Door Open, WACS.
Electrical requirements See Motion Package
