20in

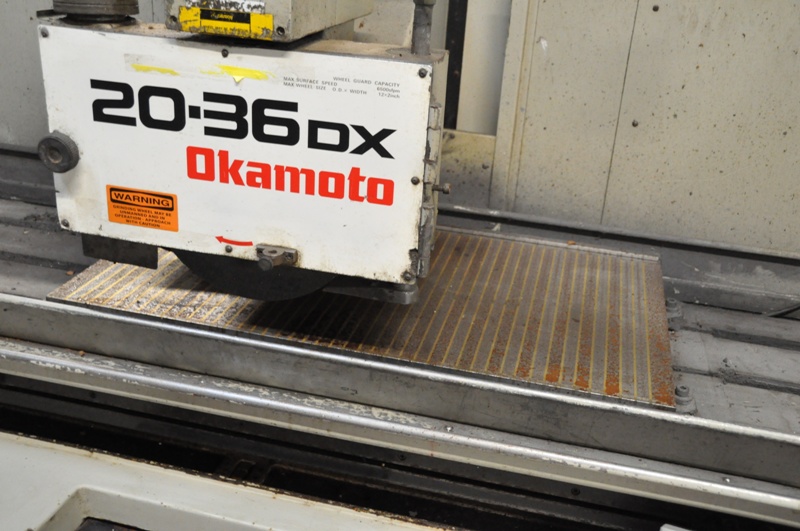

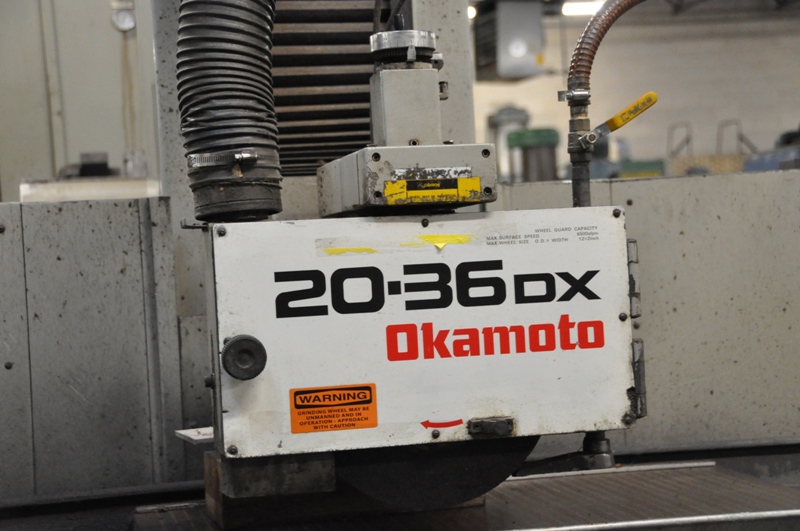

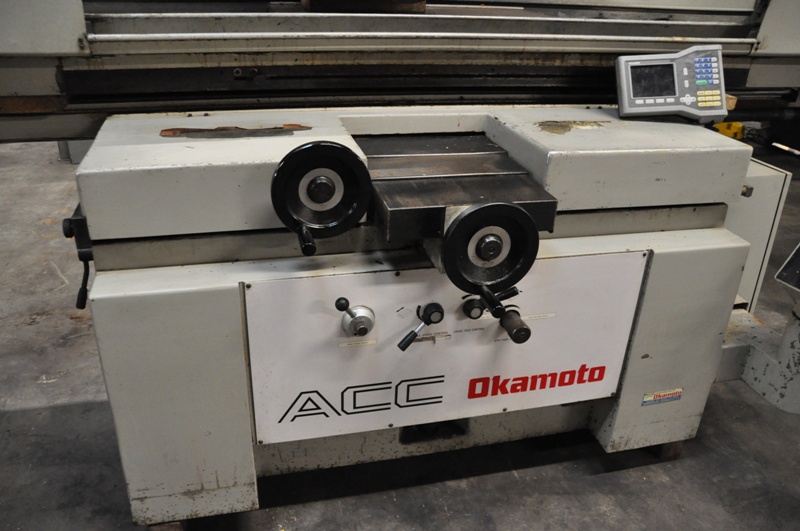

X 36in OKAMOTO 3-AXIS HYDRAULIC SURFACE GRINDER

PRICE: Loaded on
Truck, Our Warehouse, York, PA      $52,500.00

HMC Stock No.
19033-P

Machine Serial No. 69019

Machine Model No.
ACC-20-36DX

New Date: 1994

SPECIFICATIONS:
Table Working
Capacity: 20in x 36in
Table Capacity Manual: 21.3in x
41.3in
Distance from Table Top to Underside of 12in Wheel:
20.5in
Maximum Wheel Size with Current Wheel Guard: 12in x 2in,
6500 SFPM
Electro Magnetic Chuck Size: 20in x 35-1/2in with 5/8in
Pole Spacing
Table Load Capacity with Chuck: 1,540 Lbs.
Maximum
Traverse Manually: 21.3in x 41.3in
Number of Table T
Slots: 3 x 0.7in
Longitudinal Feed Rates: 1 to 82
ft/min
Longitudinal Feed per Hand Wheel Revolution: 1.85in
Manual
Cross Feed per Hand Wheel Revolution: 0.25in
Automatic Cross Feed
- Intermittent: 0.02in to 0.8in
Automatic Cross Feed - Continuous:
4 to 40 ft/min
Automatic Down Feed (Traverse & Plunge Cut): 10
Steps, 0.00005in to 0.0015in
Manual Down Feed Micro: 0.00001in
/0.0001in / 0.001in
Manual Down Feed per Hand Wheel Revolution:
0.001in / 0.01in / 0.1in
Number of Sparkout Passes: 0 to
5
Vertical Rapid Feed: 16 IPM
5 HP Grinding Wheel Spindle
Motor, 3.7 KW, 1740 RPM
Grinding Spindle Motor is Direct Drive to
Spindle
Grinding Wheel Speed: 1800 RPM

EQUIPPED
WITH:
Hydraulic Over the Wheel Dresser, Single Point with
Diamond
Machine Work Light
(1) Wheel Grinding Hub
Wheel

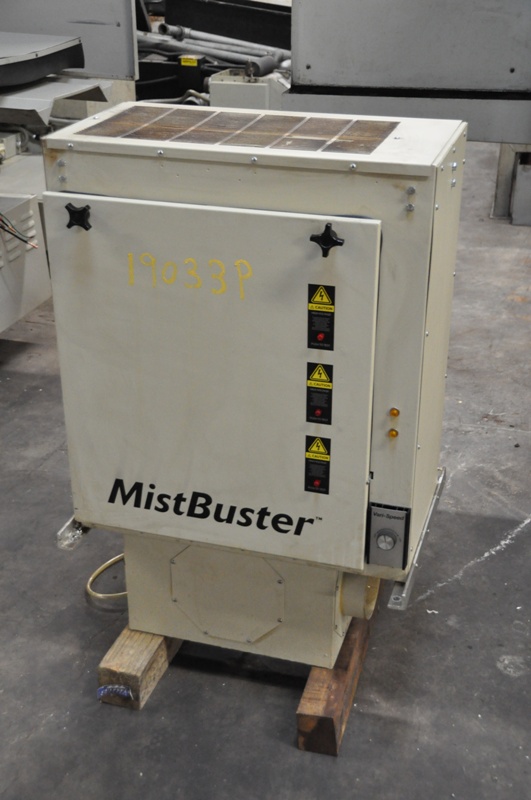

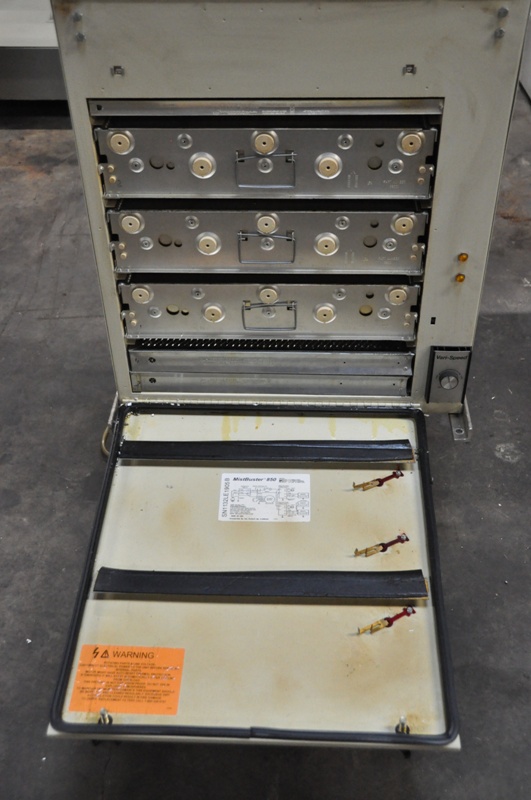

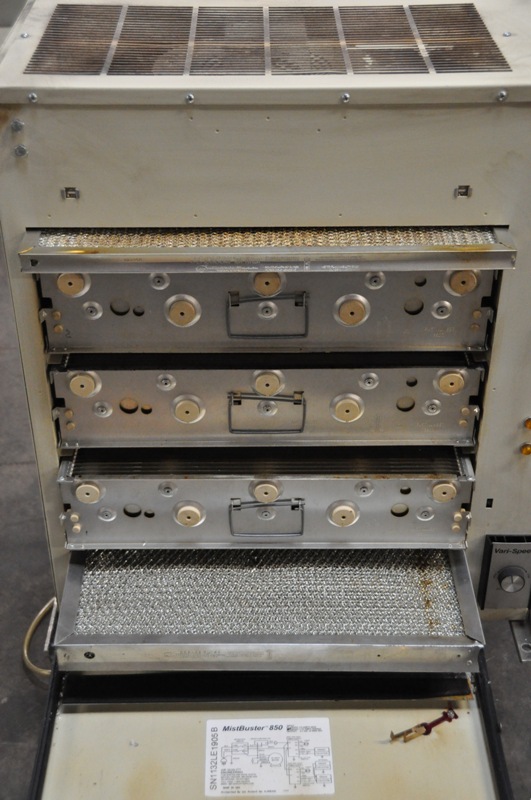

Guard with Dust/Mist Collector Connection

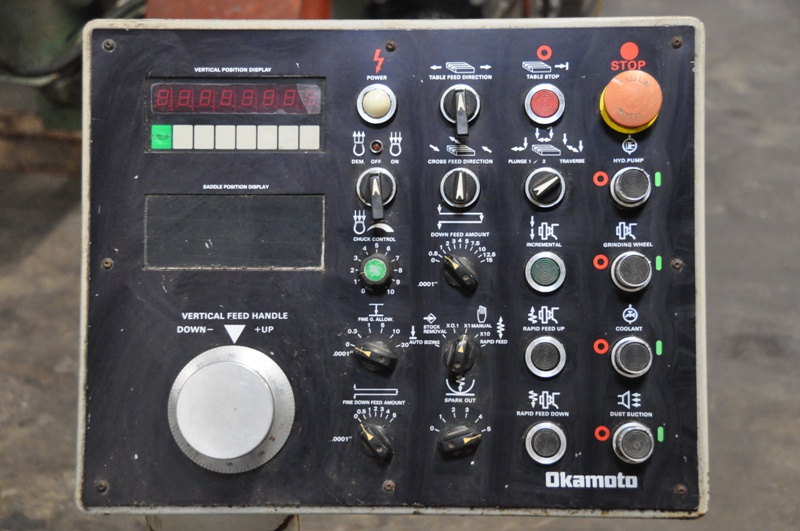

Operators Console with
the Following Features:
Digital Display of Saddle and Head
Position
Incremental Down Feed of Head
Coarse and Fine Head
Down Feeds
Settable Spark Out Control
Power Positioning or Head
Vertically
Controls for Coolant and Mist Collector
Operation
Hydraulic System Built into Base of the Machine
2-Axis
Acu-Rite Digital Readout
Work Area Guarding
(2) Input Internal
Multi Tap Transformers for 200 to 480 Volts

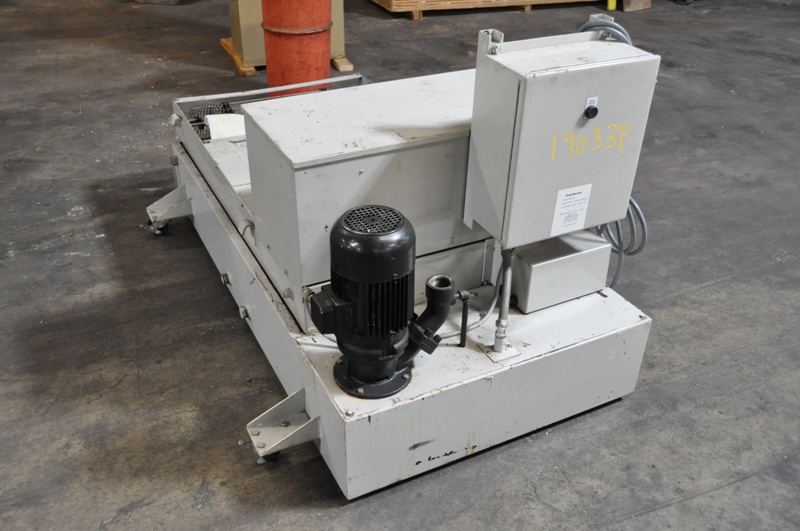

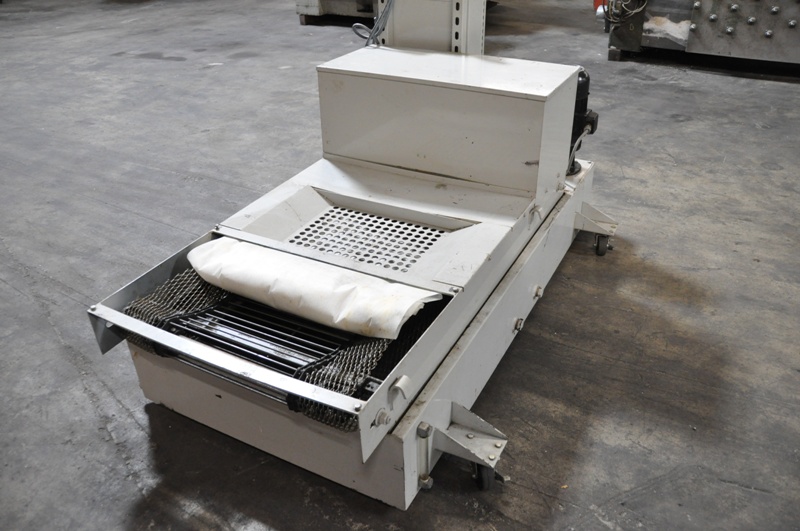

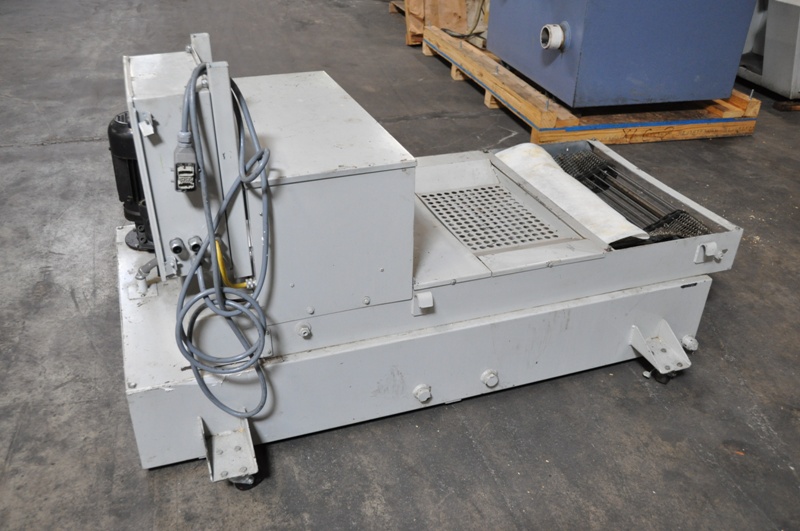

PRAB-MONLAN
GRAVITY FED COOLANT SYSTEM WITH FILTER:
Serial No. 34990-2, Model
No. PFA-150, New Date: 2009
Flow Rate (Water): 40 GPM
Tank
Capacity: 90 Gallons
Paper Media Motor: 1/10 HP
