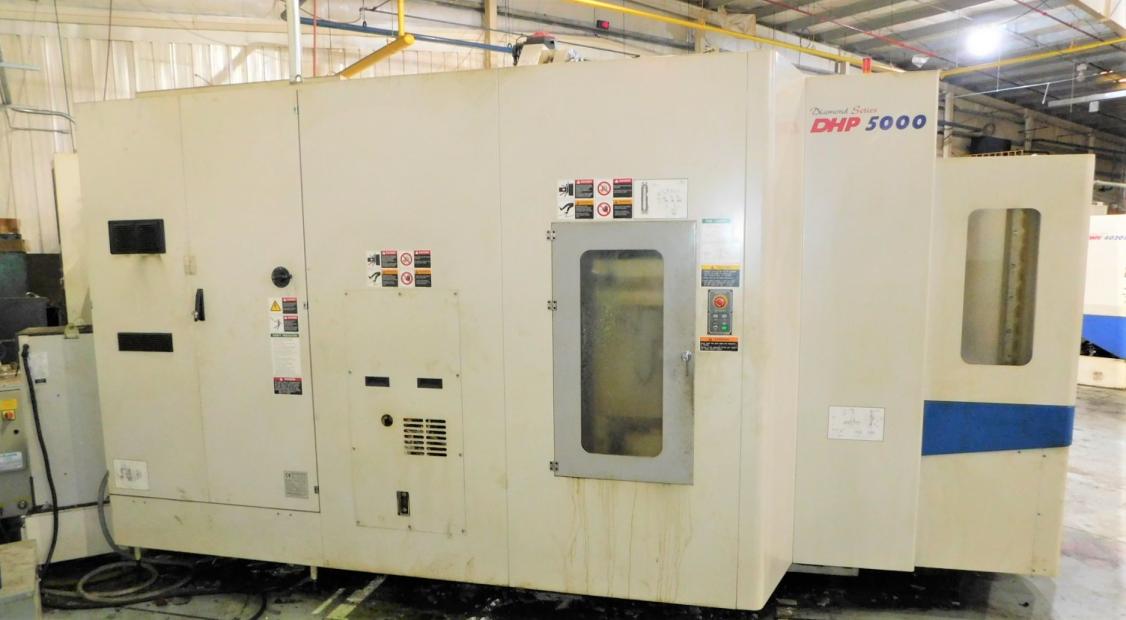

20" X 20" DOOSAN DHP-5000 CNC 4-AXIS HORIZONTAL MACHINING CENTER - DOOSAN DAEWOO DHP 5000

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


DHP-5000
HP510088
Machining Centers Vertical Horizontal CNC
Horizontal Machining Centers
used
28000 (LB)
2007
$0.00

Feature Video

Description

Specifications:
X 33.0
Y 27.0
Z 30.0
Power 20.0
RPM 14000.0
# ATC 60.0
Taper CAT 40
Pallet-W 19.7
Pallet-L 19.7

Year 2007
Control Type Fanuc 18i-MB
# Axis 4
Pallet Length 19.7"
Pallet Width 19.7"
Pallet Capacity 1,102 pounds
Pallet Indexing (B-Axis) 1deg
X-Axis Travel 33.4"
Y-Axis Travel 27.5"
Z-Axis Travel 29.5"
Rapid Traverse Rate (X/Y/Z) 1,889 ipm
Spindle Taper CAT 40

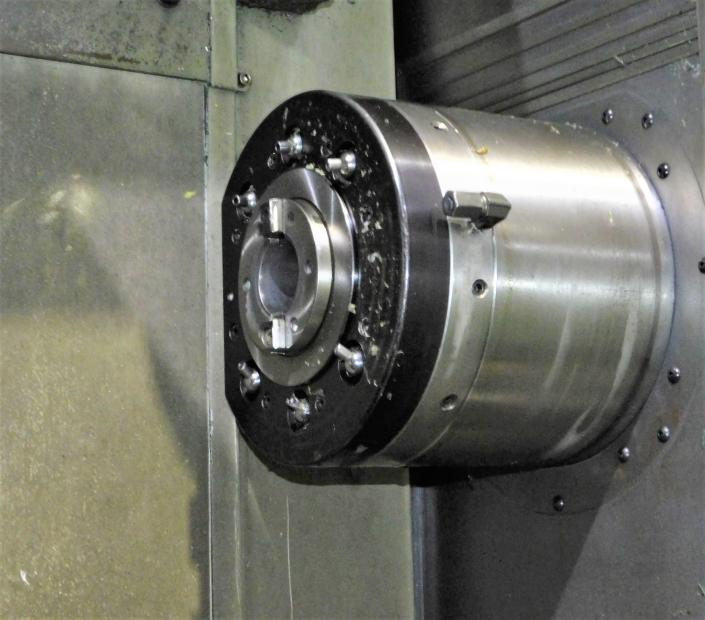

Spindle Speed 14,000 rpm
Spindle Motor (HP) 30 hp
Tool Changer Capacity 60
Coolant Through Spindle yes
Machine Dimensions  137" x 208" x 118"
Machine Weight   28,000 pounds

EQUIPPED WITH:

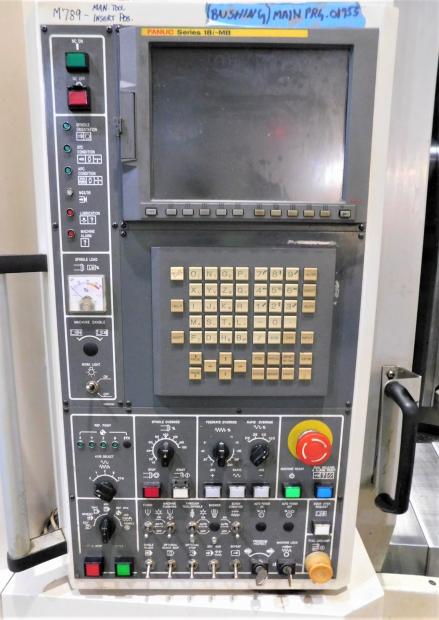

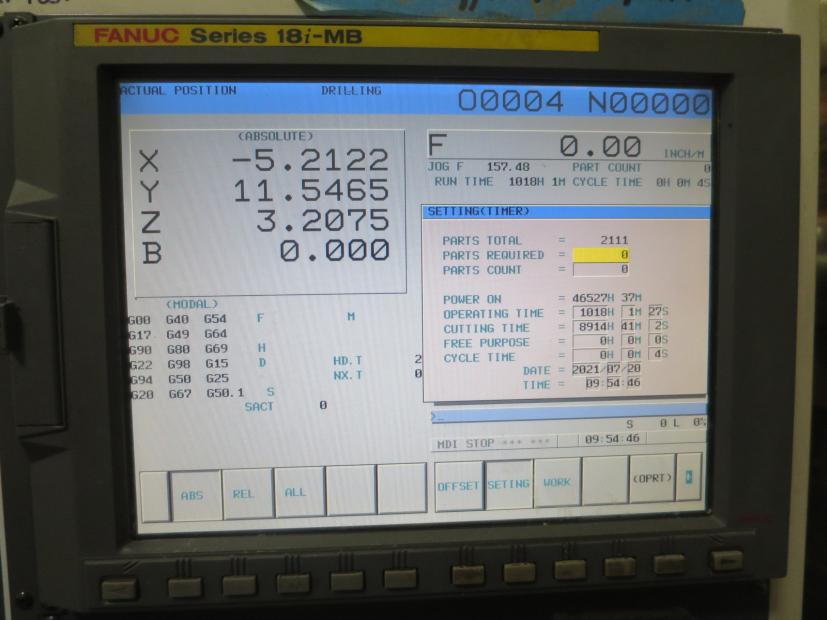

- Fanuc 18i-MB Control
60 position automatic tool changer

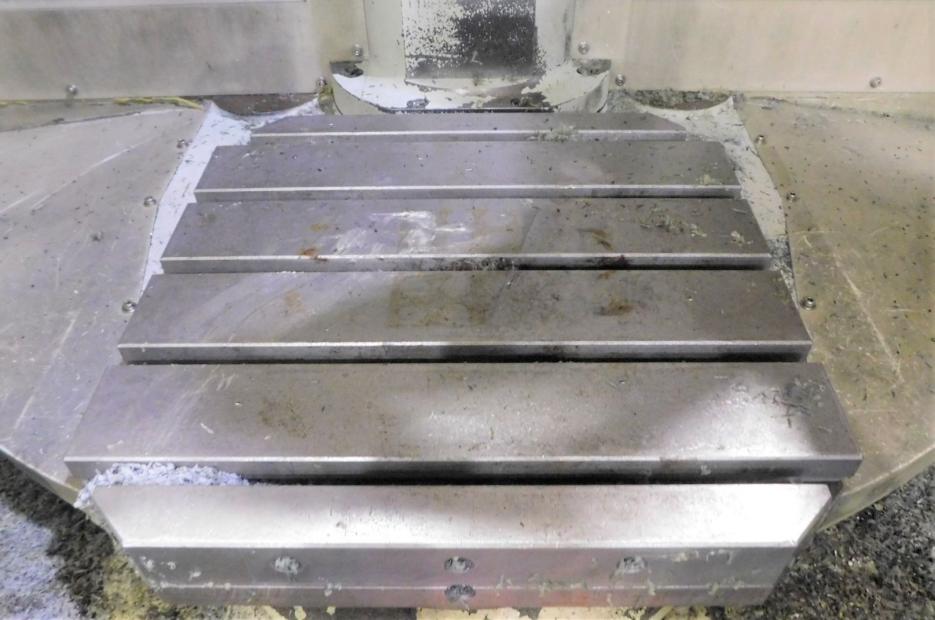

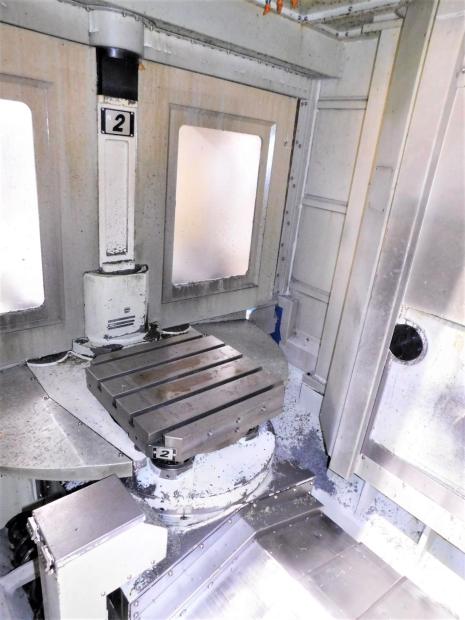

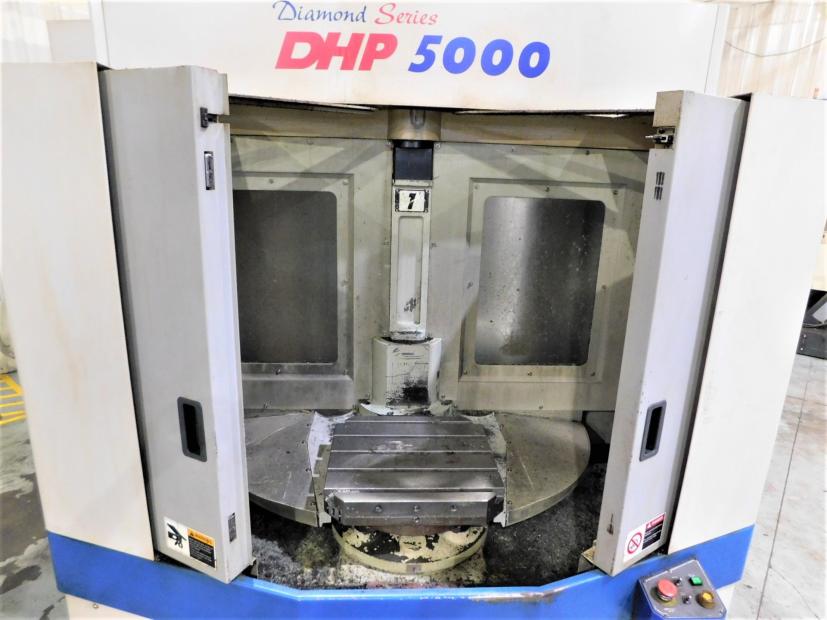

(2) 19.7" x 19.7" Pallets
- Coolant Thru Spindle

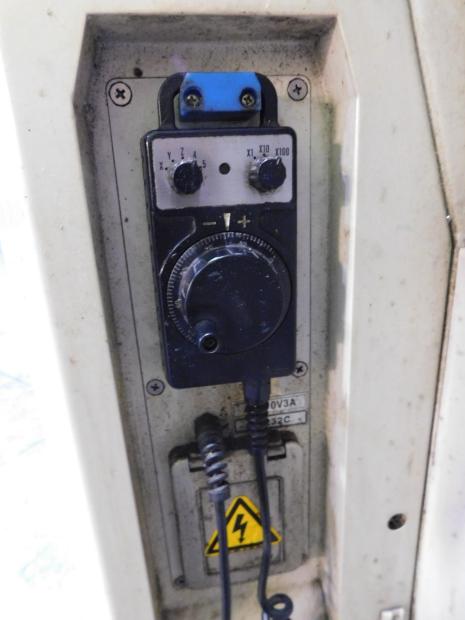

- Remote Hand Held MPG
Cool blaster high pressure pump

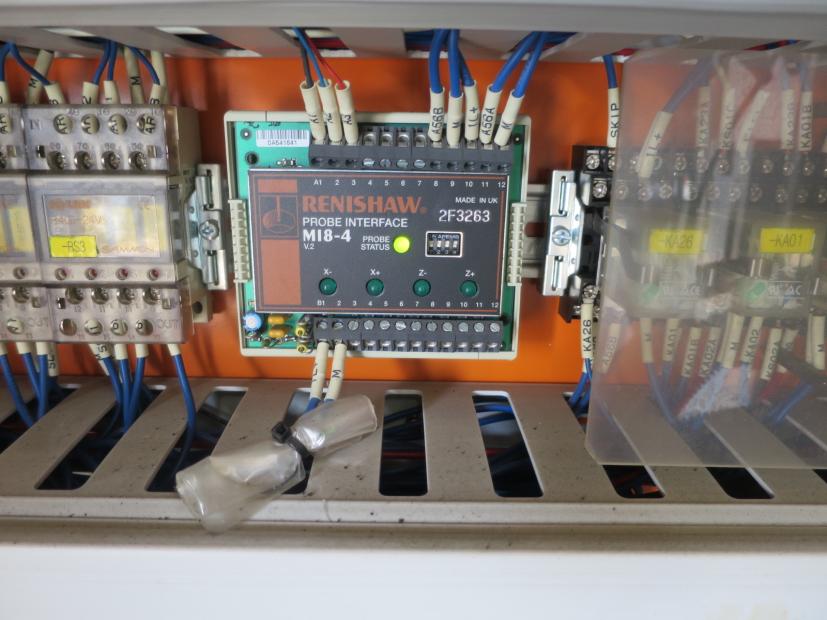

Renishaw TS27R Tool Setting Probe with M18-4 Interface

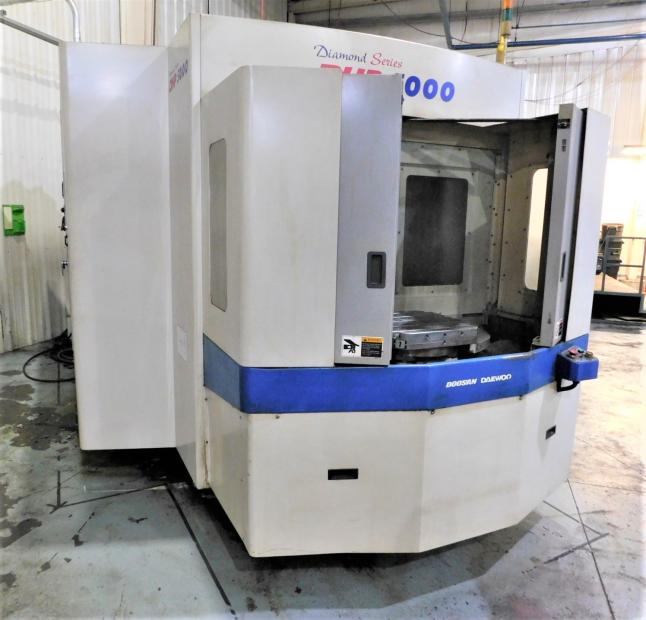

20" x 20" DOOSAN DHP-5000 CNC 4-AXIS HORIZONTAL MACHINING CENTER

Stock Number 12689
