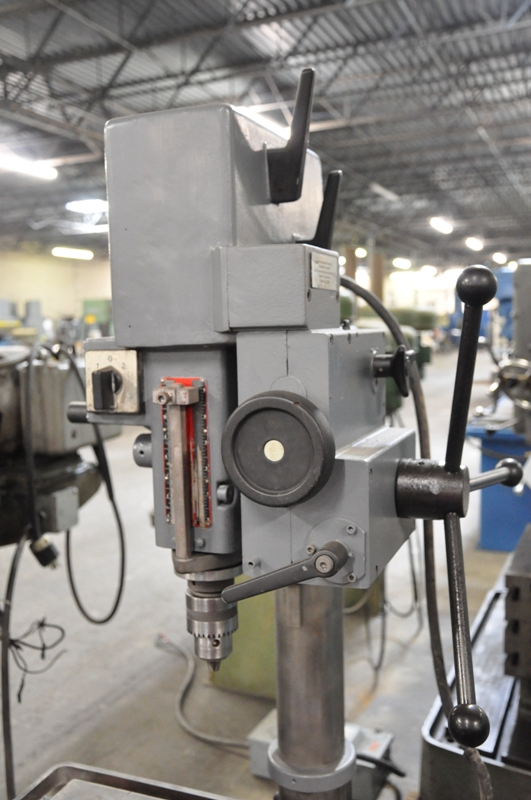

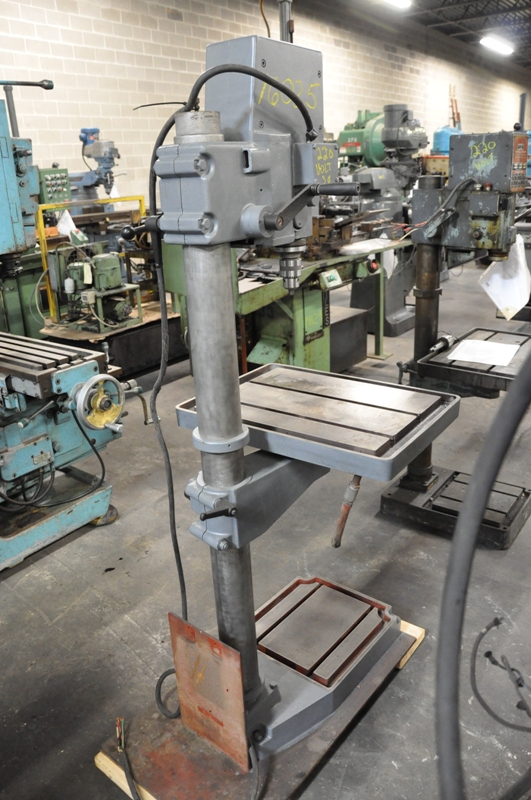

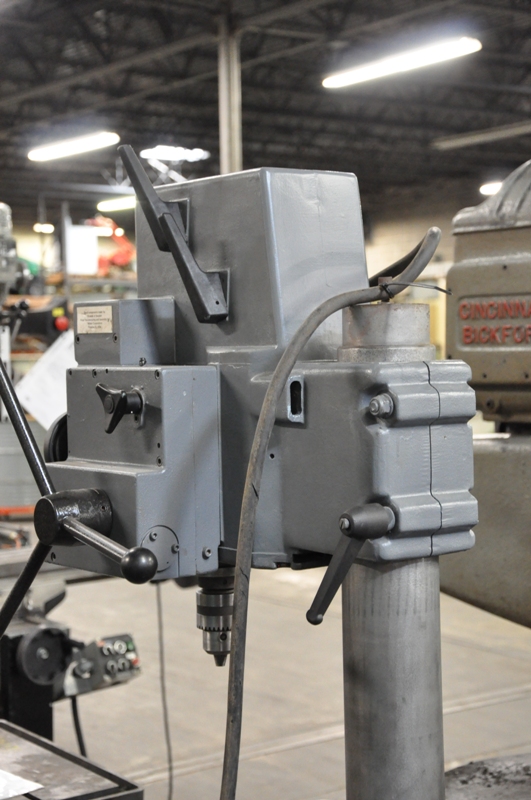

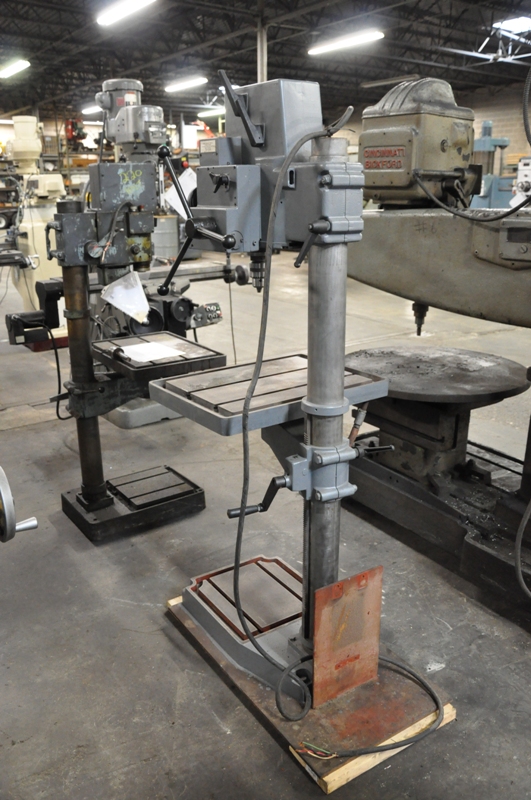

20" WILTON GEARED HEAD DRILL PRESS
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $2,950.00
HMC Stock #16025
Machine Serial No. Unknown
Machine Model No. 24548
New Date: Unknown
Capacity: 1-1/4" in Cast Iron (Hand Feed)
Drills to Center: 20"

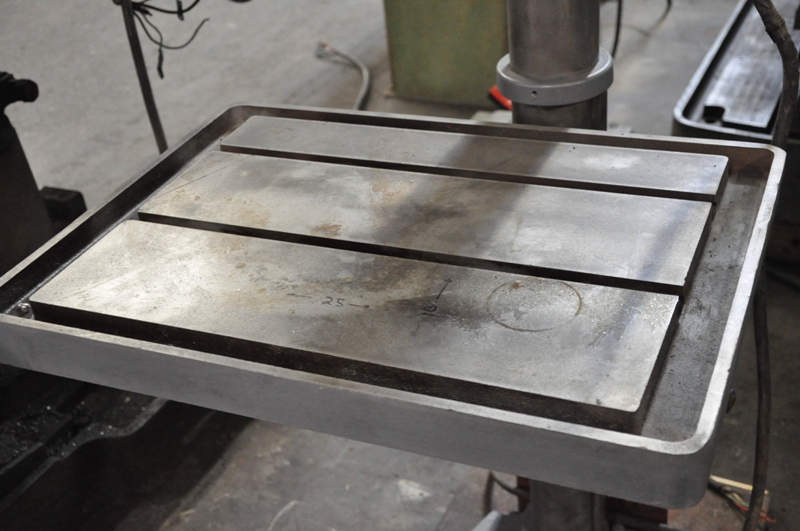

Table Size: 25" L-R x 18" F-B with (2) T-Slots

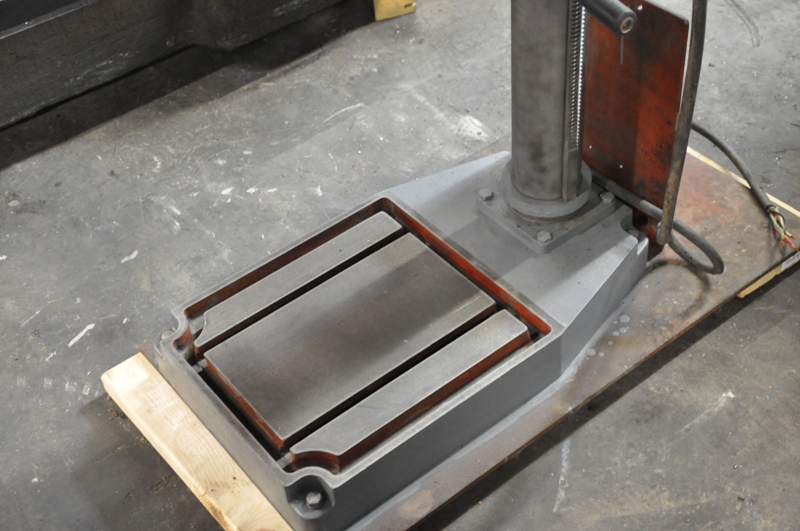

Base: 14-3/4" x 21-1/4"
Column Diameter: 3-15/16"
Spindle to Table: 34-1/4"
Quill Diameter: 2-7/16"
Spindle Travel: 5-3/8"
Spindle Taper: #3 Morse
(8) Spindle Speeds: 85 to 3420 RPM
(4) Power Feeds: .003, .006, .008, .012 Per Rev.
EQUIPPED WITH:
Power Quill Feed
Quill Feed Kick Out is Missing Parts
Extra Fine Hand Feed Wheel

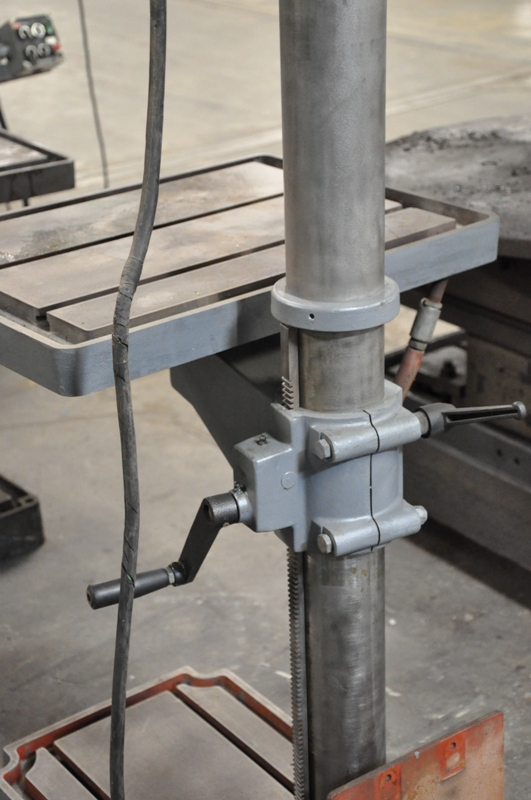

Table and Head Raise and Lower Via Hand Crank
2 / 1.5 HP Motor
Wired for 3 Phase, 60 Cycle, 220 Volts
Overall Size: 36" L-R x 25" F-B x 72" H
