Manufacturer: Stan Canada Stanko
Model: ZM50 20"/27.5" x 80" GAP BED ENGINE LATHE
Year: 2015
SPECIFICATIONS:
Swing Over Bed: 20"
Swing Over Cross Slide: 10.625"
Swing Over Gap: 27.5"
Max. Turning Length: 80"
Width of Bed: 13.4"
Width of Gap: 9"
Chuck Size: 10"
Spindle Speed Range: 22-2000 Rpm
Spindle Bore: 1.96"
Spindle Internal Taper: 6 MT
Toolpost Travel: 5.5"
Cross Slide Travel: 11.8"
Quill Stroke: 7"
Quill Diameter: 2 3/4"
Quill Nose: 5 Morse Taper
No. of Longitudinal and Cross Feeds: 38
Rapid Traverse X/Z Axes: 0.7/5 m/min

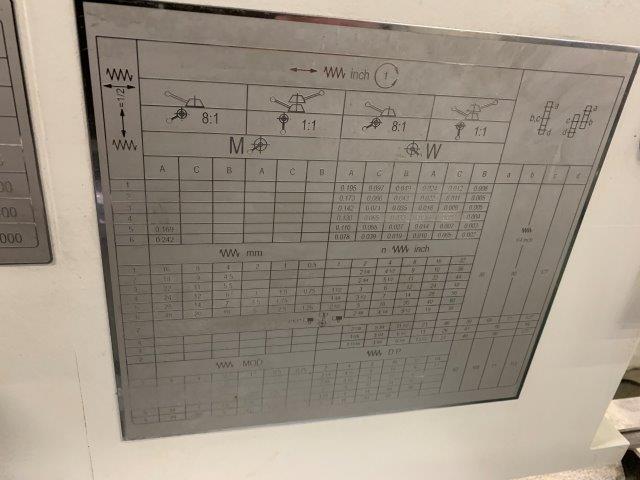

Thread Pitch: 29 Metric 0.5-40mm
35 Whitworth
Tpi 1-80
26 Modules
31 Diametral
Main Motor: 10 HP
Coolant Motor: 0.125 kW
Rapid Traverse Motor: 0.55kW
Dimensions: 11 x 5 x 55" H
Weight: 5500 lbs.
EQUIPPED WITH:

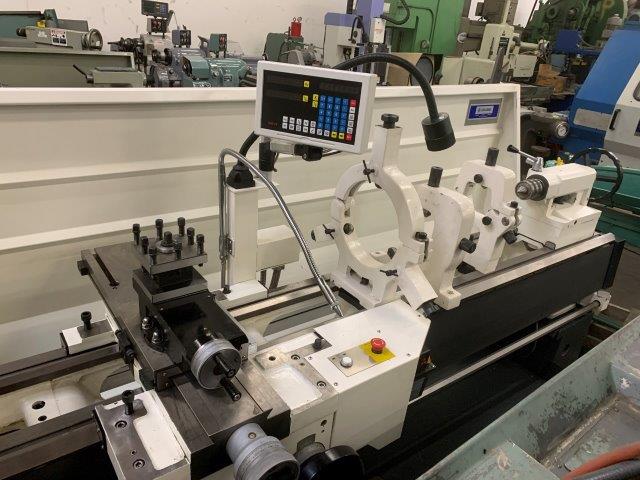

Digital Readout

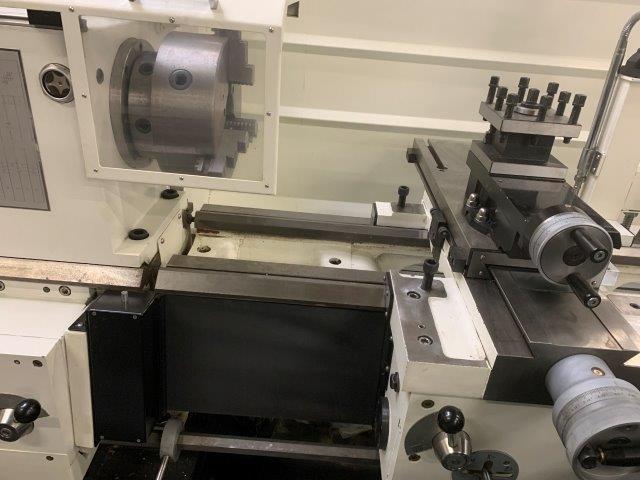

10" Chuck
2 Steady Rests
Follow Rest
