REFERENCE NUMBER: 14023
MODEL No. 2L
SERIAL No. 2308
1/8 in-2-1/8 in TUBE CAPACITY
2 in SOLID BAR CAPACITY
60 in MAXIMUM CUT LENGTH
197-3000 R.P.M. SPINDLE SPEEDS (TYPICAL)
EQUIPPED WITH:
ROLLING TYPE POINT OF CUT GUARD
2 SLIDE MACHINE FRONT AND REAR

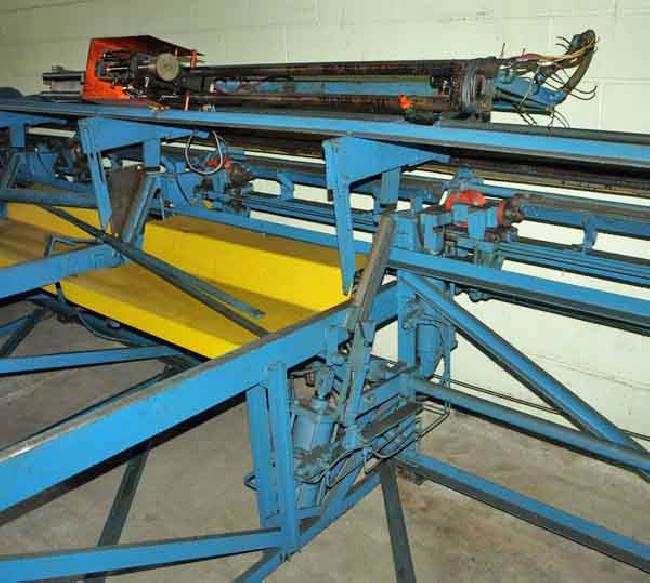

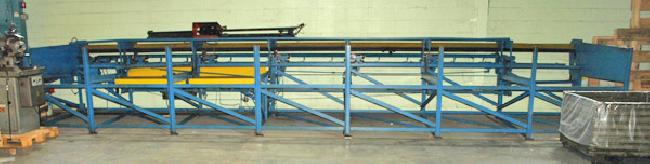

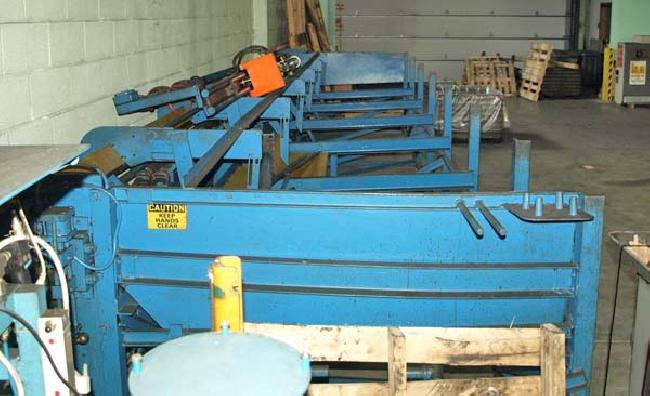

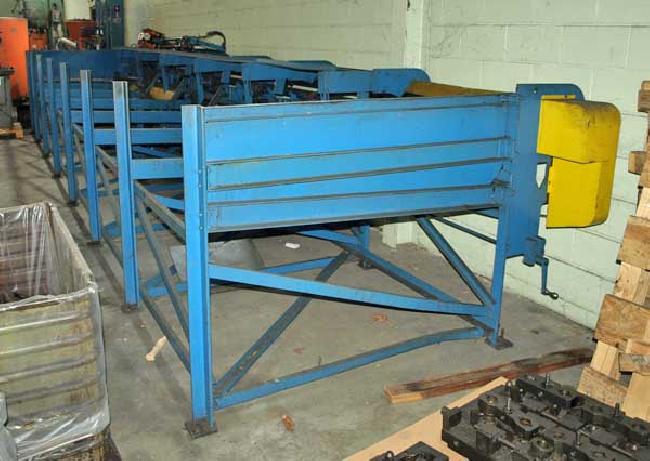

25 ft AUTOMATIC DESCRAMBLING TUBE RACK
AUTOMATIC LUBRICATION
COOLANT TANK AND PUMP
ELECTRONIC VARIABLE SPINDLE SPEED
8 GUIDE TUBES AND THE FOLLOWING COLLETS:
3 SETS .750 in
.965 in & 1 in
3 SETS OF .800 in /.890 in & 1-1/32 in
1 SET OF .640 in/.812 in/.828 in
1 SET .758 in/.859 in/ .953 in
MOTOR DATA: 7-1/2 HP, 1800 RPM, 230/460/60/3
YEAR: 1980
GOOD CONDITION
MACHINE WAS TAKEN DIRECTLY FROM SERVICE
OVERALL DIMENSIONS: 38 ft LR x 7 ft FB x 5 ft TALL
