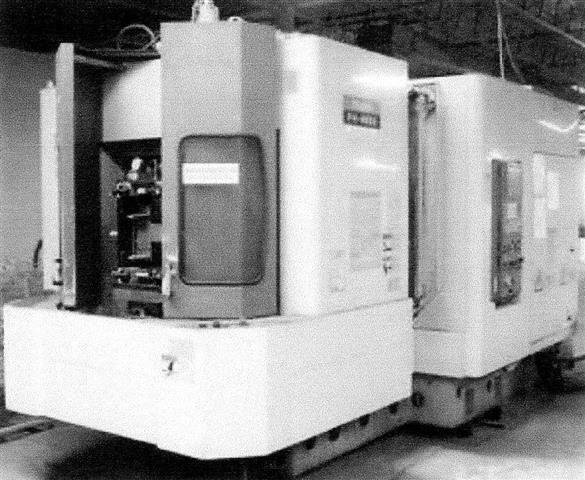

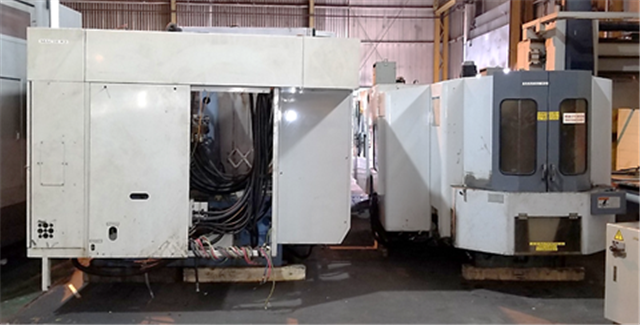

1999 Mazak FH-4800

1999 MAZAK FH-4800

Add to Your File

Brand: 1999 MAZAK FH-4800

Model: FH-4800

Serial No. : M0130

Category: Machining Centers Vertical Horizontal CNC

Sub Category:

Condition: used

Weight: (KG)

Year Built: 1999

Status:

Price: $0.00

Description

Pallet:

Pallet Size (2 Pallets): 15.75\" x 15.75\"
Pallet Indexing: .001 Degree
Maximum Load On Pallet: 880 Lbs

Travels:

X-Axis Travel: 22.05\"
Y-Axis Travel: 24.02\"
Z-Axis Travel: 22.05\"

Spindle:

Spindle Speeds (RPM): 35 - 12,000 RPM
Spindle Taper: CT 40
Main Motor (15 min / Continuous): 30 HP / 20 HP

Speeds:

Rapid Traverse Rate: 1968 IPM
Cutting Feedrate: .03937 to 1968 IPM

Tool Changer:

Tool Changer Positions: 40 Tools
Maximum Tool Length: 14.17\"
Maximum Tool Weight: 26.4 LBS
Tool Change Time (Tool to Tool): 1.3 Seconds
Tool Change Time (Chip to Chip): 3.0-3.5 Seconds

General:

Required Floor Space: 106\" x 164\" x 104\"
Weight: 20,723 LBS
Voltage: 220 Volts
Power Required: 52 KVA

Equipped With:

Mazatrol Fusion 640M Control
Chip Convayor
High Pressure Coolant Through Spindle
Full 4th Axis Pallets

Equipped With:

Mazatrol Fusion 640 Control
Mayfran Chip Convayor
Two (2) PCMCIA Slots
Tool Life Monitoring
.001 Degree Positioning
Adaptive Feedrate Control
Synchronized Tapping
Tool Breakage Recovery
Auto Tool Length Measurement
Mazak Tapping / Boring Tornade (EIA)
Air Blast System on Spindle
Background Tool Path Check
Thru Spindle Coolant
Flood Coolant System

Comments:

4244 Running Hours
Short Chip Conveyor - 3 to 4 foot flat
P48 Offset
100 to 999 Macro Variables
Video Link: https://youtu.be/_VQbX7OPh08
