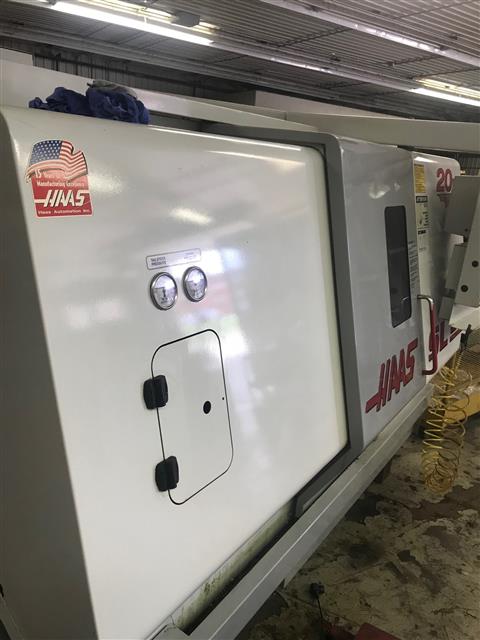

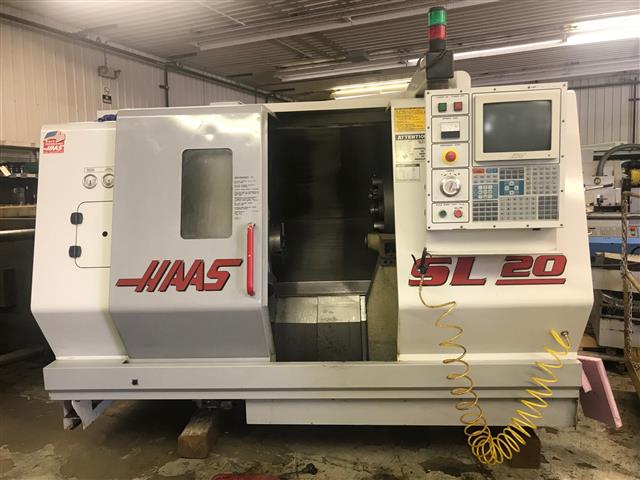

1999 HAAS SL-20T TURNING CENTER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


SL-20T
L2150
Lathes and Turning Centers CNC
Universal
used
9000 (LB)
1999
$0.00

Description

Reference #:6977
Machine Type:
Year:1999
Manufacturer:Haas
Model:SL-20T
Control:Haas 32 BIT/CRT
Condition:Good
Code:L2150

Capacity:

  • Swing / Swing Over Cross Slide: 20" / 9.5"
  • Max. Turning Diameter / Max. Turning Length: 10" / 20"
  • Distance Between Centers: 24"

Spindle:

  • Spindle Speeds: 3400 RPM
  • Spindle Bore / Bar Cap: 3" / 2"
  • Spindle Nose: A2-6
  • Main Motor: 20 HP

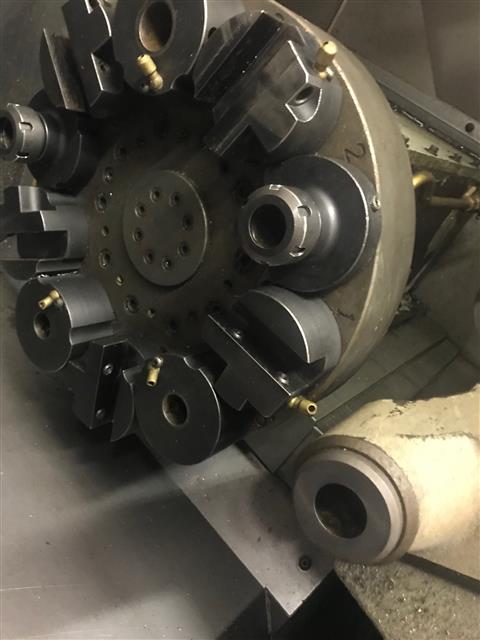

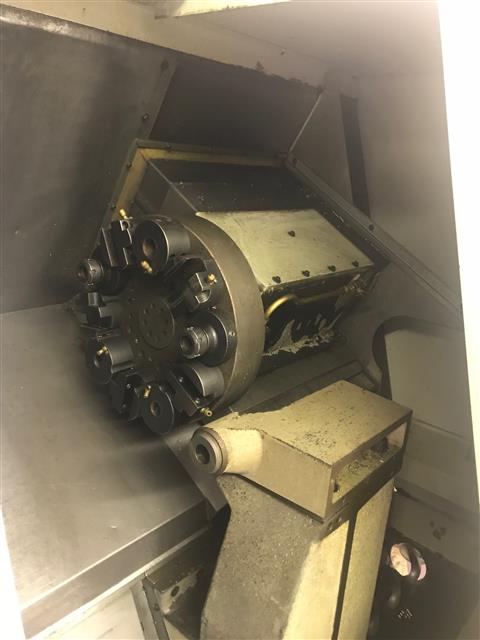

Turret:

  • Number of Positions: 10 Positions
  • X-Axis Travel: 8.45"
  • Z-Axis Travel: 20"

Tailstock:

  • Stroke of Body / Quill: 20" / 3.1"
  • Quill Diameter / Taper: 3.13" / MT #4

Dimensions:

  • Floor Space (L x W x H): 129" x 88" x 72"
  • Weight (approx.): 9,000 Lbs

Equipped With:

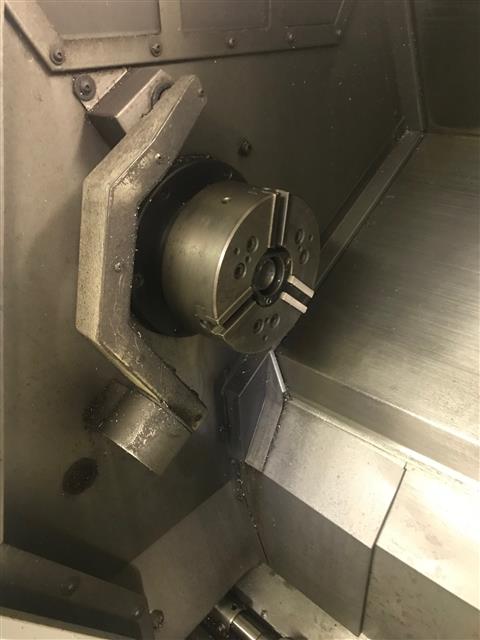

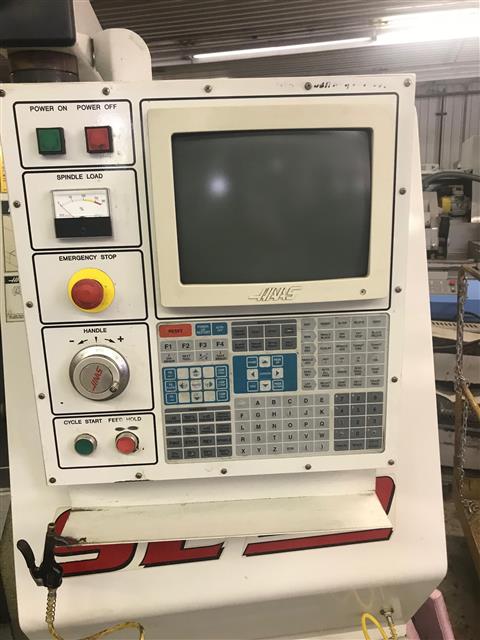

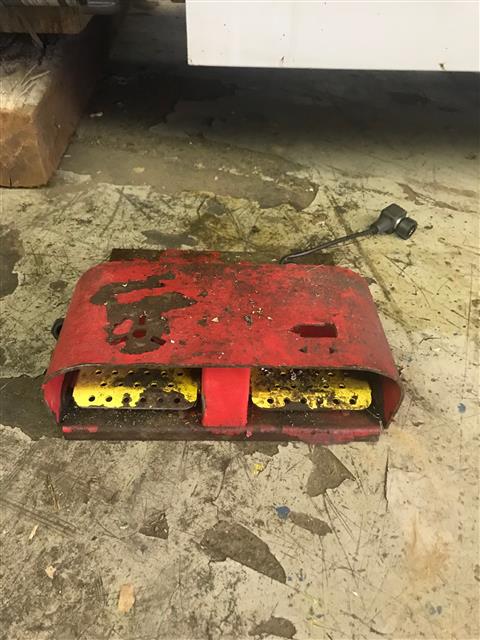

  • HAAS CNC Control with 10.4" Color LCD Chuck Size 8" 3 Jaw Power Chuck W/Foot Pedal Control
  • Fully Programmable Hydraulic Tailstock
  • Tool Presetter
  • Collet Chuck
  • Bolt-On Turret
  • Chip Auger
  • Spindle Orientation
  • Assorted Tool Holders on Turret
  • Rigid Tap
  • Quick Code
  • Extended Memory 1MB
  • Tailstock
