1999 ADDISON DB-120 HYDRAULIC 4-AXIS CNC ROTARY TUBE BENDER

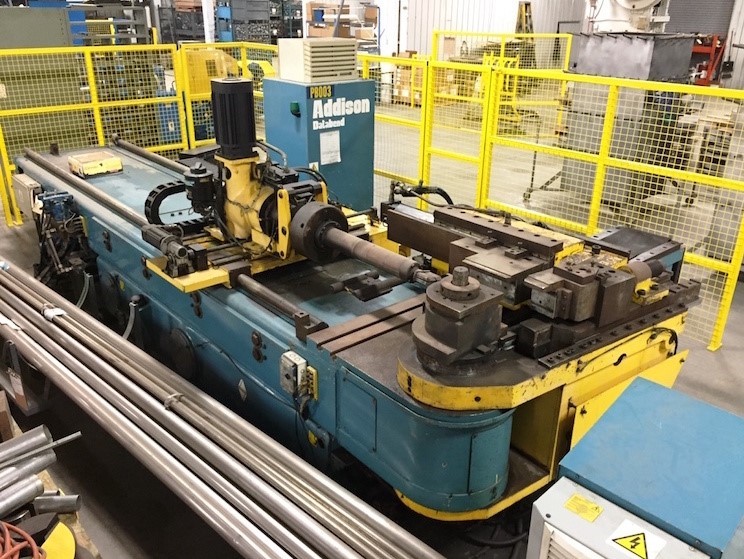

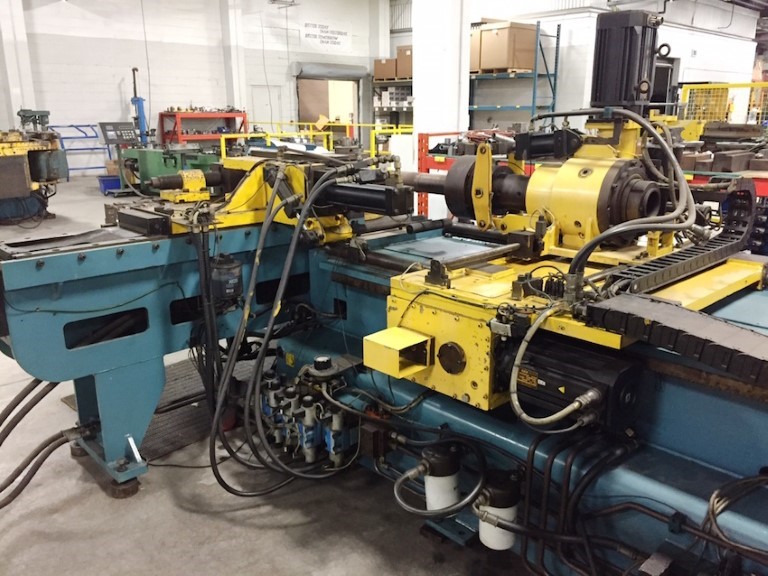

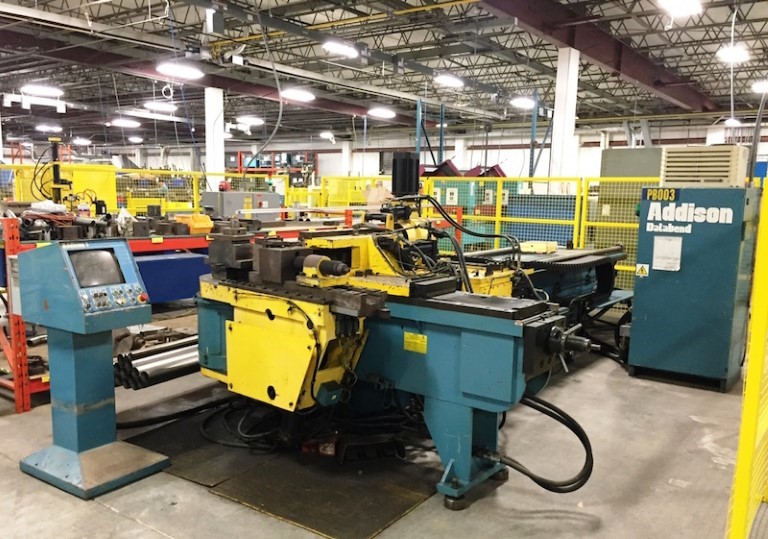

DB-120 Hydraulic 4-Axis CNC Rotary Tube Bender
B1835
---Unknown---
used
(KG)
1999
$0.00

Description

Specifications:

  • Bending Capacity: 4.5\" OD x .35\" Wall
  • Maximum Bend Radius: 23.6\" Radius
  • Minimum Centerline Radius: 25\"
  • Maximum tube Length Over Mandrew: 157.3\"
  • Max, Degree of Bend (C-Axis): 0 - 193 degree
  • Plane Of Bend (B-Axis): 0 - 360 degree
  • Follower Slide Stroke29.7\": 29.7\"
  • Clamp Slide Stroke (Direct Acting): 9\"
  • Horizontal Shift (X-Axis): 23.6\"
  • Axis Speed (Y-Axis Feed): 1575 IPM
  • Axs Speed (B-Axis Rotation): .78\"
  • Axis Speed (C-Axis Bending): 3.5\"
  • Axis Speed (X-Axis Radius): 394 IPM
  • Tube Working Height: 47.25\"
  • Hydraulic Tank Capacity: 150 gallons
  • Operating Pressure: 2,000 PSI
  • Dimensions: 216 x 130 x 78 high
  • Approximate Shipping Weight: 20,900 Lbs

Equipped With:

  • Addison Data Bend CNC Control
  • Programmable Plane of Bend (B-Axis)
