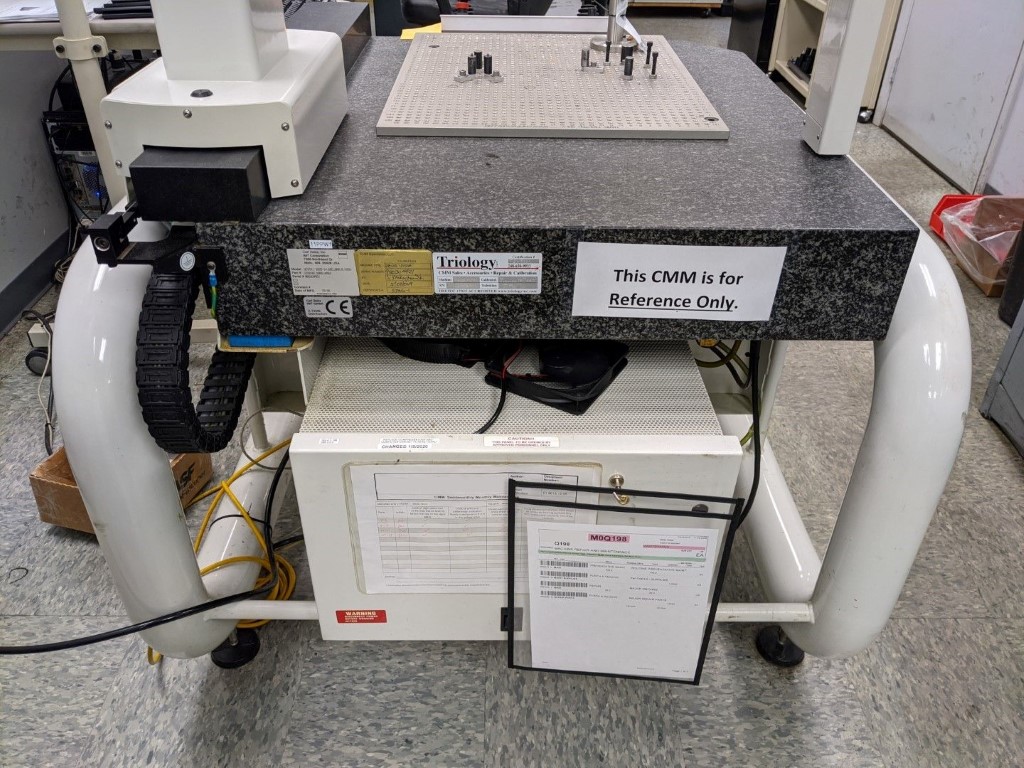

1998 ZEISS VISTA 1620-14 CMM, MACHINE # 7995

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


Vista 1620-14
Measuring (Metrology) Equipment
CMM Machines
new
882 (LB)
1998
$0.00

Description

Reference #:7995
Machine Type:CMM
Year:1998
Manufacturer:Zeiss
Model:Vista 1620-14 CMM
Control:
Condition:Used - Good
Code:C5901

Capacity:

  • Machine Style: Gantry
  • Number of Axes: 3 Axis

Travels:

  • X-Cross/Long: 15.7"
  • Y-Saddle: 19.6"
  • Z-Vertical: 13.7"

Table:

  • Surface height: 31.4"
  • Clearance under bridge: 20.8"
  • Max. Clearance Between Probe Head and Table Surface: 18.8"
  • Work Table Area (X, Y): 23.6" x 33.8"

Machine:

  • Weight (approx): 882 Lbs
  • Max. Workpiece Weight: 617 Lbs
  • Power Requirement: 110 Volts
  • Max Total Consumption: 1000 VA

Travel Speeds:

  • Set-up and Testing Operation: 0 to 70 mm/s
  • Measuring Operation Axial: to 200 mm/s
  • Vectorial: 340 mm/s
  • Max. Acceleration Axial: to 400 mm/s2
  • Vectorial: to 680 mm/s2

Equipped With:

  • Ceramic Crossbeam and Spindle (Thermically Insensitive)
  • Pneumatically Counterbalanced Z-Axis
  • High Performance Air Bearings with Wrap-around Guideway in all Axes (also in Y)
  • Passive Anti-vibration System

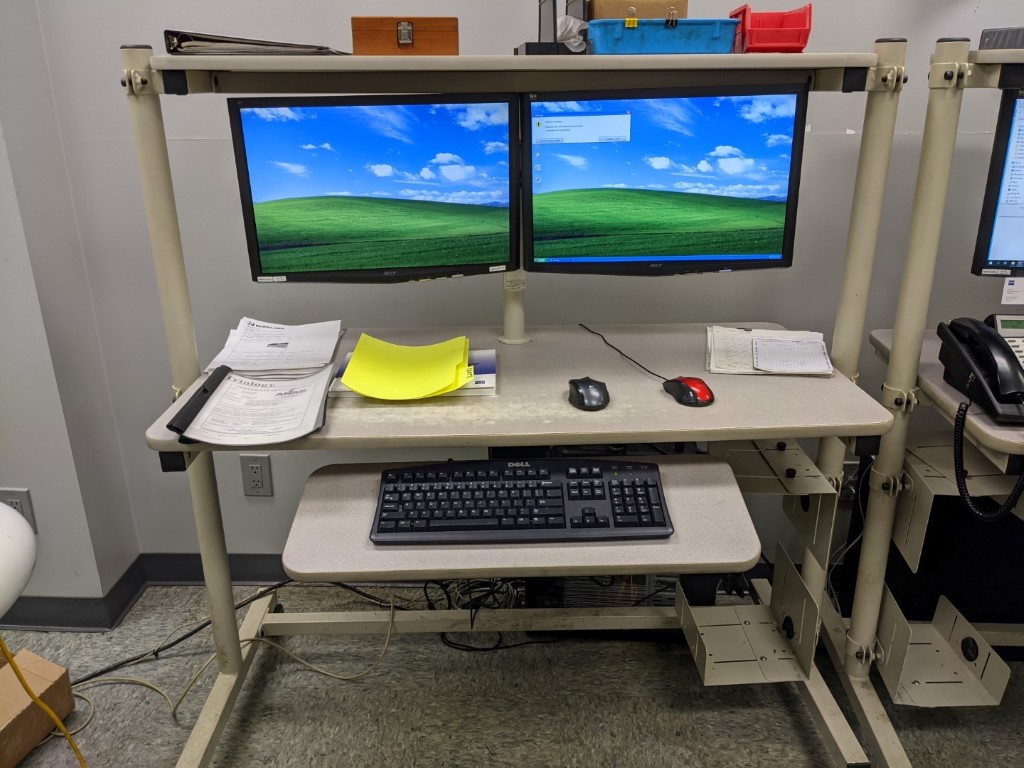

  • Computer System with Calypso Software version 5.2
  • Renishaw Probe System

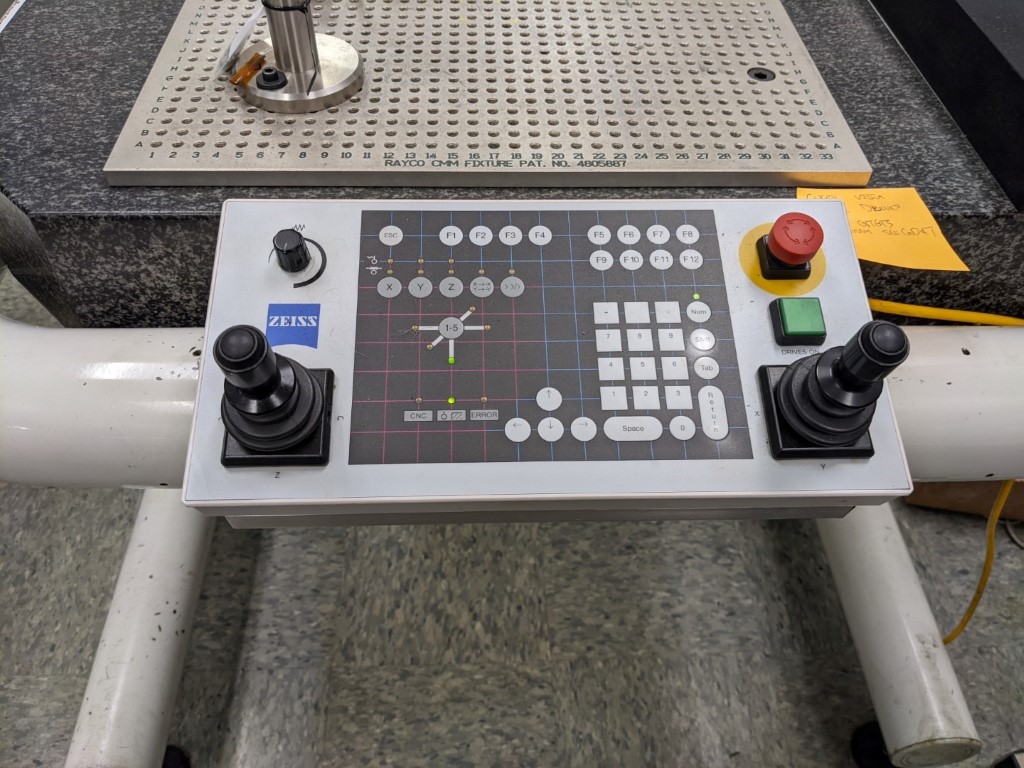

  • Joysticks with Progressive Characteristics for Manual Control of CMM,
  • Switchable to Creep Speed
  • Microprocessor Control (3-axis Vectorial Control) with Overdrive for Speed
  • Adaption
  • High Performance Servo Drives. Electronic Monitoring and Thrust Force
  • Limitation in all Axes
