1998 AMADA VIPROS 368 KING TURRET PUNCH PRESS TURRET PUNCHES

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


VIPROS 368 KING
Punches
PUNCHES, TURRET, NC and CNC
used
36000 (LB)
1998
$0.00

Description

Overview:

Type:Turret Punches

Manufacturer: AMADA

Model: VIPROS 368 KING

Stock #:3338264

Status:For Sale

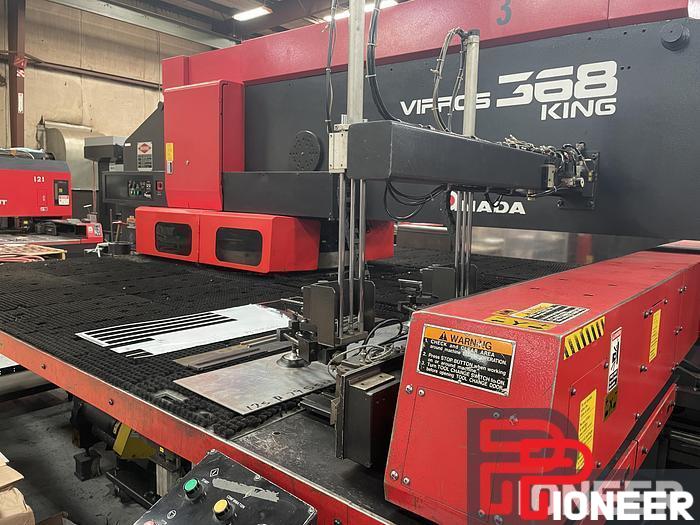

Amada Virpos 368K Turret Punch

Tonnage Capacity: 30 Tons

Maximum Sheet Size: 60 in (Y) x 157.50 in (X) with repositioning

Maximum Axis Travel: 60 in (Y) x 78.74 in (X)

Max. Linear Table Speed: 3150 in per min.

Punching Accuracy:Plus/minus 0.004 in Hole to Hole

Maximum Sheet Thickness: 0.125 in

Maximum Material Weight: 132 lb.

Press Stroke: 1.575 in

Maximum Hole Diameter: 4.5 in

Tool Type: Amada Thick Turret

Turret Rotation Speed: 30 RPM

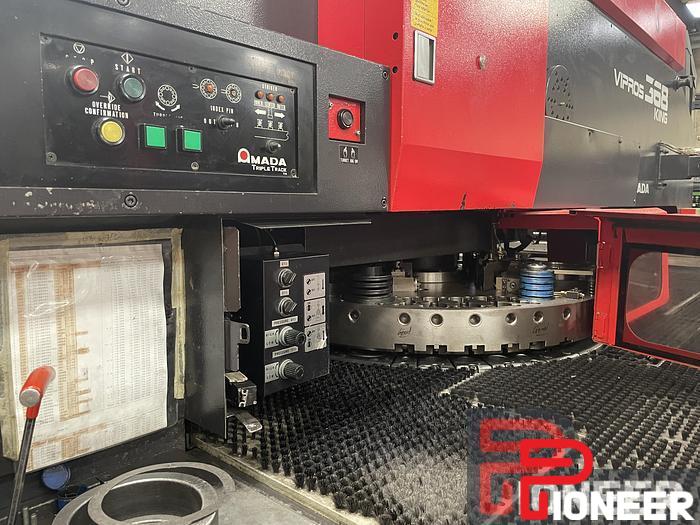

Turret Capacity: 58 Stations (4 auto-index)

Control Function: X, Y, T and C

Input Method: MDI, Floppy Disk Drive, RS-232

Minimum Command Unit: 0.001 in (X, Y)

Minimum Travel Unit: 0.001 in (X, Y)

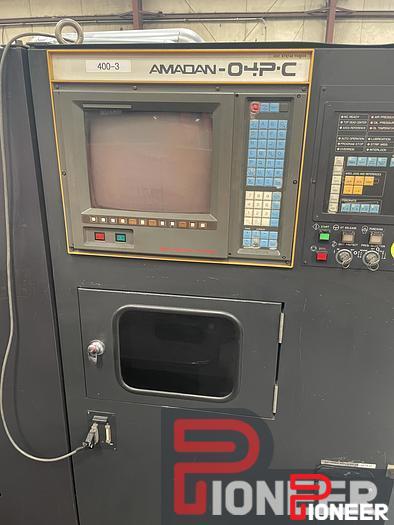

Control: Fanuc 18 (with PHNC)

Control Function: X, Y, T and C

Input Method: MDI, Floppy Disk Drive, RS-232

Minimum Command Unit: 0.001 in (X, Y)

Minimum Travel Unit: 0.001 in (X, Y)

Operating Modes: Automatic, MDI and Manual

Display Modes: Program Contents, Position Information, Program Check, Parameters, Tool Hit Counter, Self Diagnostics

Interlock Displays: Oil Temperature, Door Open

Tonnage 33 T

# Turret Stations 58 station

Manufacturer Amada

Model Amada Vipros 368 King

Year 1998

Condition Used

Tonnage Capacity 30 Tons

Max. Linear Table Speed 3150 in per min.

Punching Accuracy plus/minus 0.004 in Hole to Hole

Maximum Sheet Thickness 0.125 in

Maximum Material Weight 132 lb.

Press Stroke 1.575 in

Maximum Hole Diameter 4.5 in

Tool Type Amada Thick Turret

Turret Rotation Speed 30 RPM

Turret Capacity 58 Stations (4 auto-index)

Minimum Command Unit 0.001 in (X, Y)

Minimum Travel Unit 0.001 in (X, Y)

Control Fanuc 18 (with PHNC)

Operating Modes Automatic, MDI and Manual

Interlock Displays Oil Temperature, Door Open

Machine Weight 18 tons

Power Requirements 28kva
