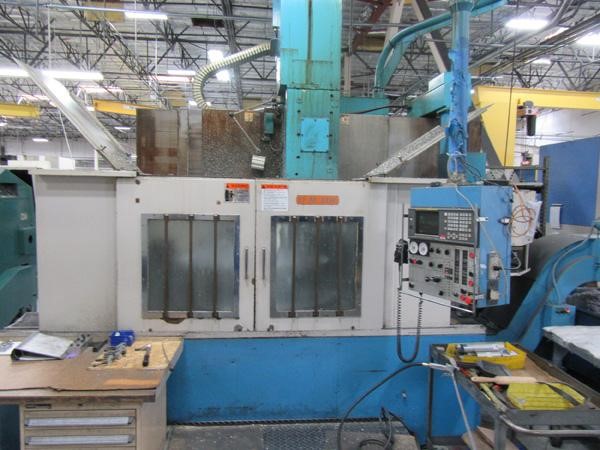

1998 O-M LTD. OMEGA-60, BORING MILLS, VERTICAL & VTL, CNC W/ATC MACHINE # 8536

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


Omega-60
Vertical Turret Lathes VTL
CNC Vertical Turret Lathes
used
(LB)
1998
$0.00

Description

Reference #: 8536

Machine Type: Vertical Lathes

Year: 1998

Manufacturer: O-M Ltd.

Model: Omega-60

Control: Fanuc 18T

Condition: Used

Under Power: Yes

Code: B6200A

Specifications:

Maximum Turning Diameter: 53"

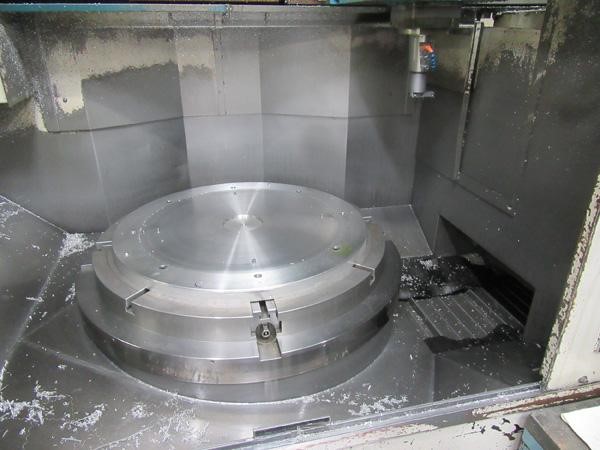

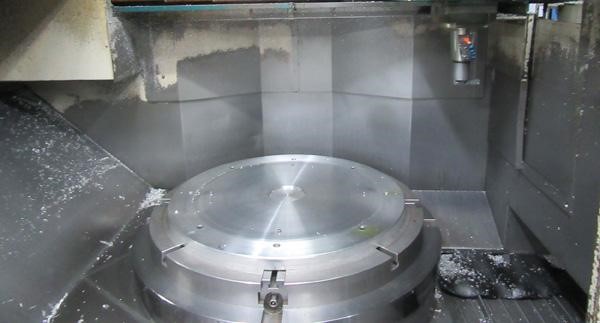

Table Diameter: 43-1/4"

Max Swing: 59"

Max Turning Height: 31-1/2"

Max Work Piece Weight: 4,400 Lbs.

Max Torque of Table: 6,800 Lbs.

Max Cutting Force: 4,400 Lbs

Tool Head Travel: 31-1/2"

Tool Head Travel to Right of Table: 49"

Tool Head Travel to Left of Table: 2"

Tool Holder Shank Size: 1-1/4" x 1-1/4"

Feed Rates: .0001 To 20" IPR

Rapid Traverse: 472 Inch/Min

Table Speeds (Low Range): 4 to 149 RPM

Table Speeds (High Range): 16.4 to 600 RPM

Main Motor: 60/75 HP

Overall Dimensions (W x D x H): 242" x 156" x 192"

Machine Weight: 33,000 Lbs

Chuck (Manual): 4-Jaw

Electrics: 220 Volts/3 Phase


Equipped With:

16 Position Automatic Tool Changer

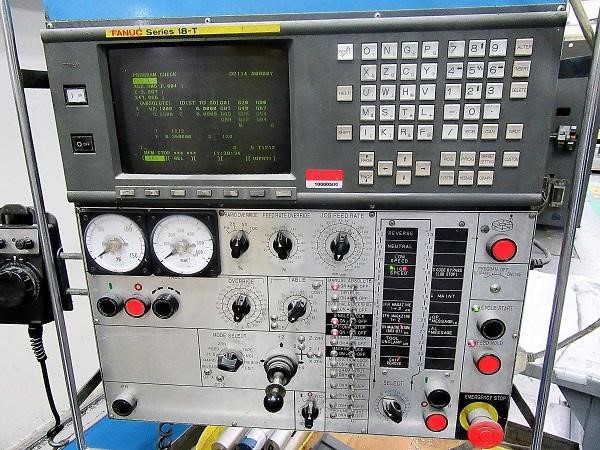

Fanuc 18 Control

Coolant Tank with Pump

Chip Conveyor

Work Light
