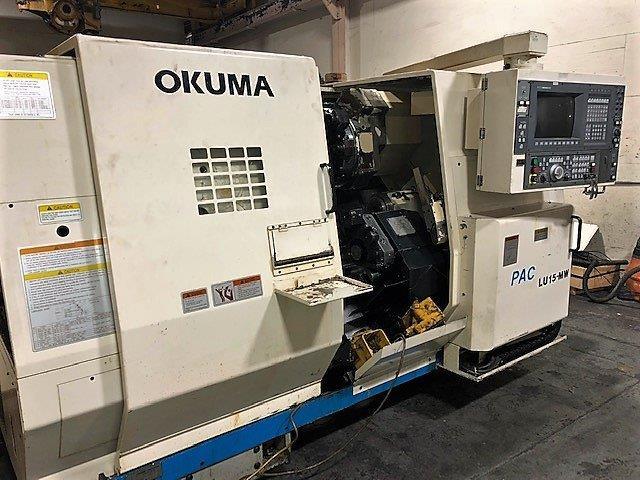

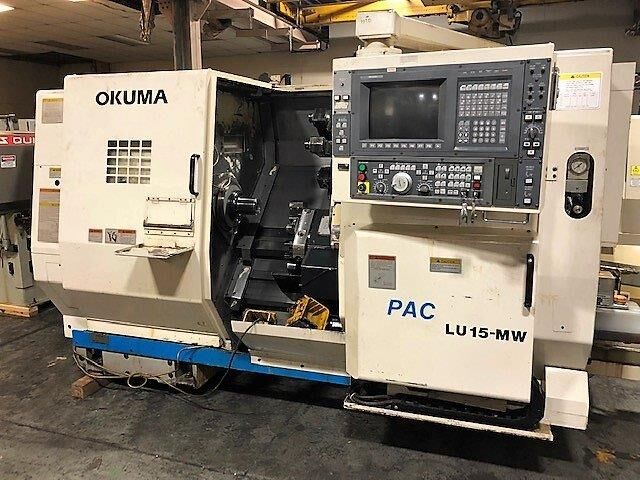

1997 OKUMA LU-15II/MW

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


LU-15II/MW
L2155
---Unknown---
used
(KG)
1997
$0.00

Description

Specifications:

  • Number of Axis: 5
  • Chuck Size: 6\"
  • Swing: 20.87\"
  • Turning Diameter: 14.17\"
  • Center Distance: 16.5\"
  • Bar Capacity: 2.08\"
  • Spindle Bore: 2.44\"
  • X-Axis: 10.24\"
  • Z-Axis: 25.20\"
  • Spinde Speed: 4500 RPM
  • Main Motor: 30/20 HP

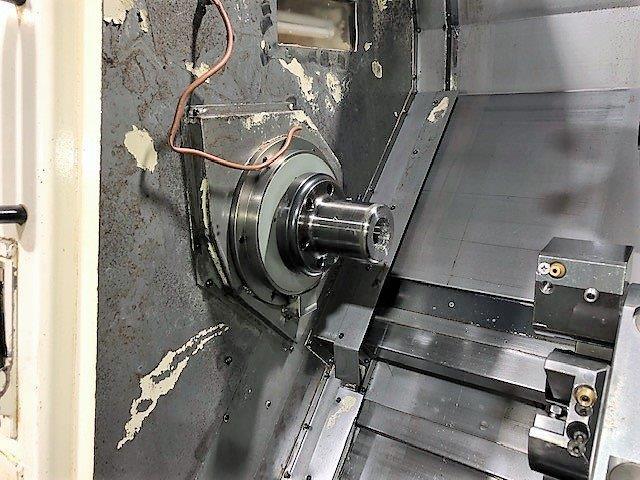

  • Sub Spindle Chuck Size: 6\"
  • Sub Spindle Spindle: 4500 RPM
  • Sub Spindle Motor: 10 / 7.4 HP
  • Live Milling: Yes
  • Live Milling Speed: 4500 RPM
  • Live Milling Motor: 5 / 3 HP

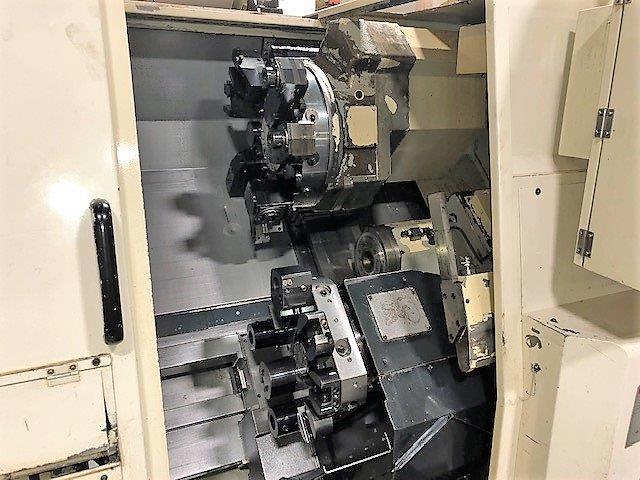

  • Turret Capacity: 12
  • Number of Turrets: 2
  • Spindle Nose: A2-6
  • Sub Spindle Chuck Size: 6\"
  • Sub Spindle Speed: 4500 RPM
  • Sub Spindle Motor: 10/7.4 HP

Equipped With:

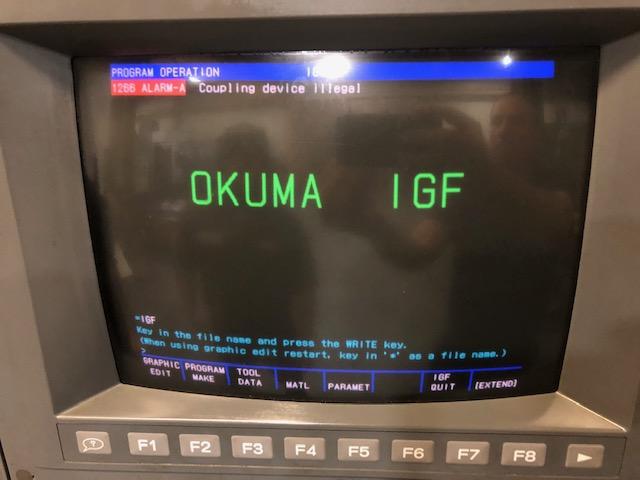

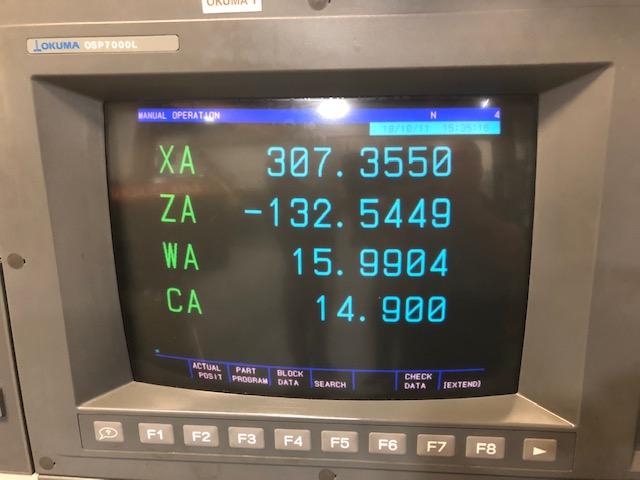

  • OSP 7000L Control with IGF
  • ATS 3J Hydraulic Collet
  • 6\" 3-Jaw Kitagawa Hydraulic Chuck

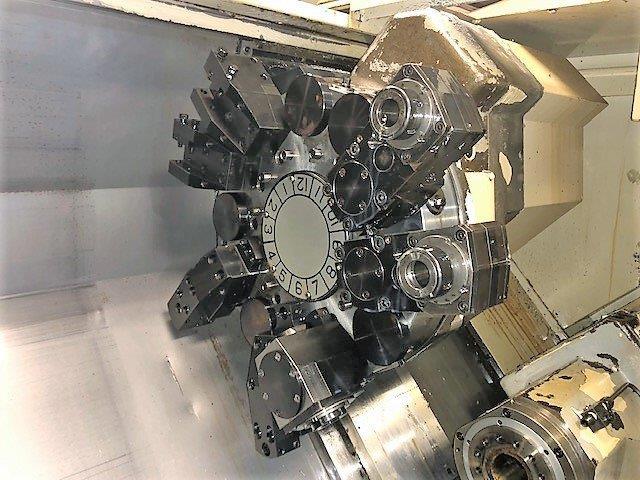

  • 12 Station Upper Turret V12

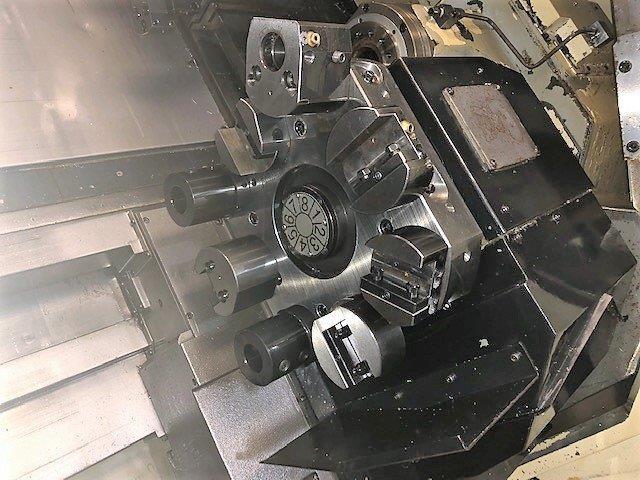

  • 8 Station Lower Turret V8
  • Four (4) Live Tool Holders
  • Chip Conveypr
  • LNS Quickload Bar Feeder
