1997 MORI-SEIKI DL-150, CNC LATHE # 7782

Add to Your File

Brand: 1997 MORI-SEIKI DL-150, CNC LATHE # 7782

Model: DL-150

Serial No. :

Category: Lathes and Turning Centers CNC

Sub Category: Multi Axis Turning Center

Condition: used

Weight: 12320 (LB)

Year Built: 1997

Status:

Price: $0.00

Description

Reference #:7782
Machine Type:CNC Lathes
Year:1997
Manufacturer:Mori-Seiki
Model:DL-150
Control:Mori MSC518
Condition:Very Good
Code:L2155

Specifications:

Max. Swing over bed: 11"
Maximum Turning Diameter (each Spindle): 7.8"
Maximum Turning Length (each Spindle): 7.8"
Standard Chuck Size: 6"
Cross Travel Turret 1 (X1-Axis): 9.3"
Longitudinal Travel Turret 1 (Z1-Axis): 9.8"
Cross Travel Turret (X2-Axis): 9.3"
Longitudinal Travel Turret 2 (Z2-Axis): 9.8"
Headstock 2 Travel (W1-Axis): 30.9"
Rapid Traverse Rate (X1, X2 Axes): 709 IPM
Rapid Traverse Rate (Z1-Axis): 945 IPM
Rapid Traverse Rate (Z2-Axis): 1181 IPM
Number of Turrets: 2
Tool Positions: 12 each turret
Bar Capacity: 1.75"
Spindle Nose: A2-5
Spindle Speed Range: 30-5000 RPM
Spindle Horsepower: 10 HP
Approximate Machine Dimensions: 126" x 77" x 70"H
Approximate Machine Weight: 12,320 lbs

Equipped With:

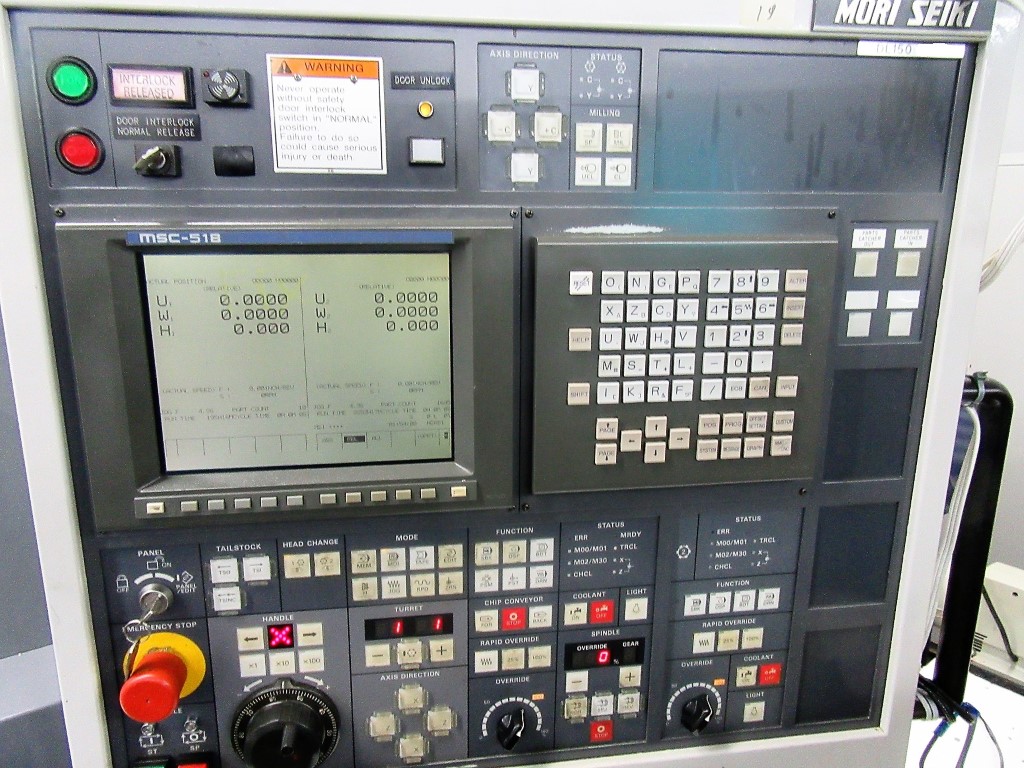

Mori MSC518 CNC control

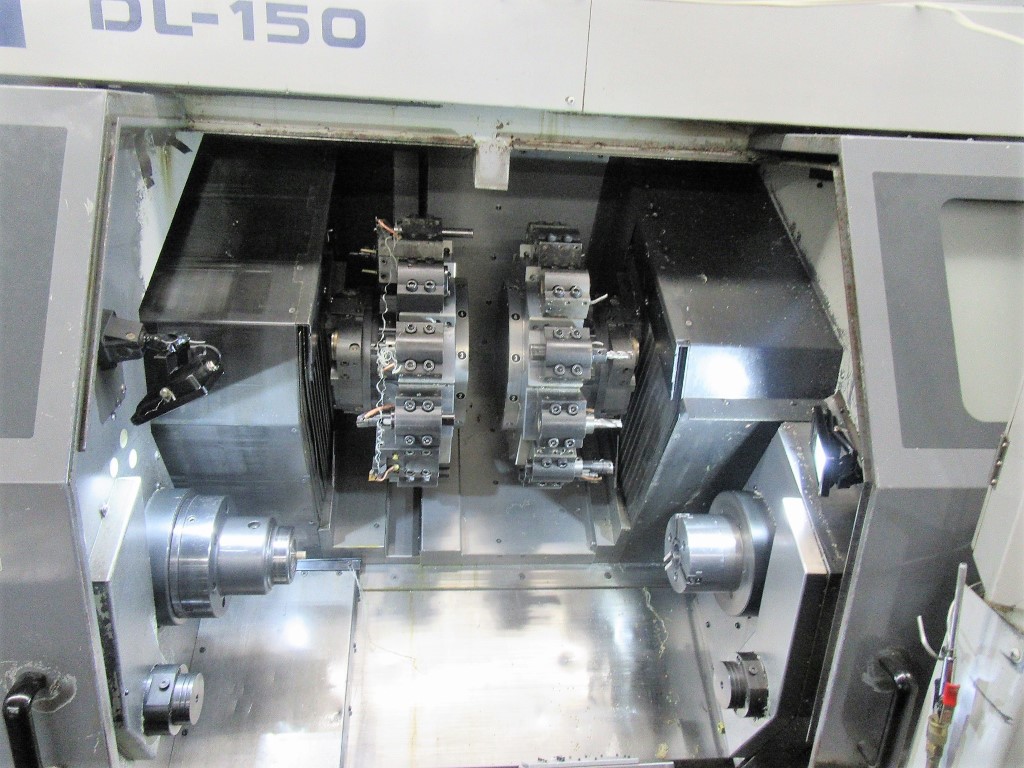

(Dual) 10 HP opposed spindles

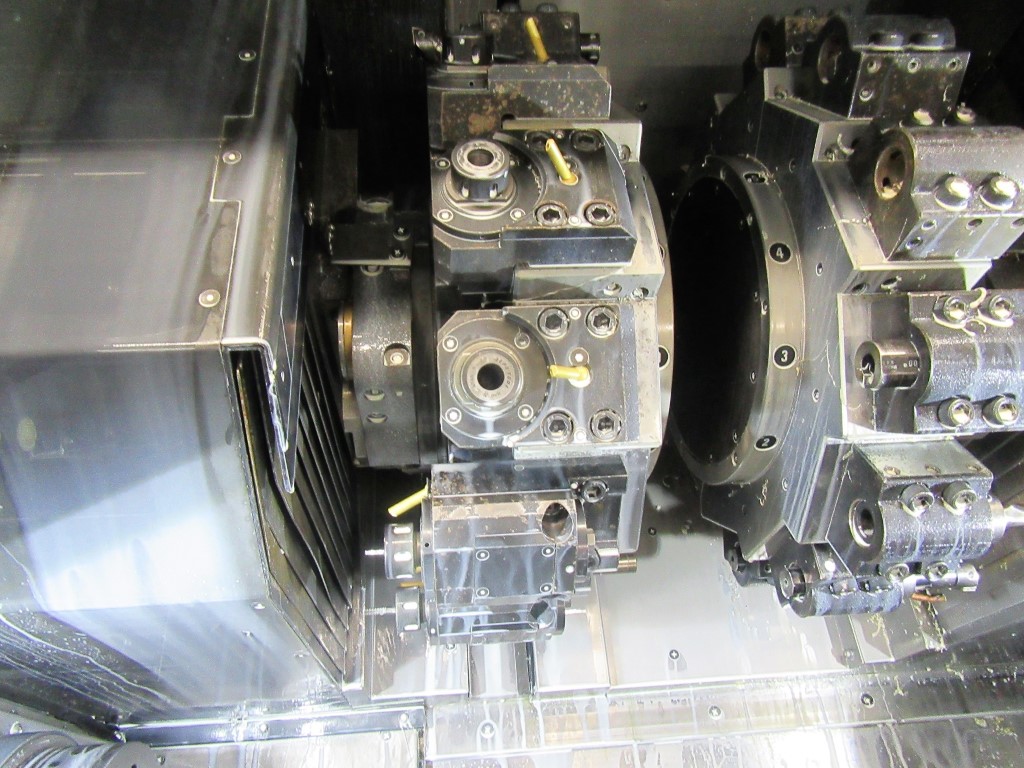

(Dual) 12 position turrets
Live milling both turrets, C-Axis, Y-Axis

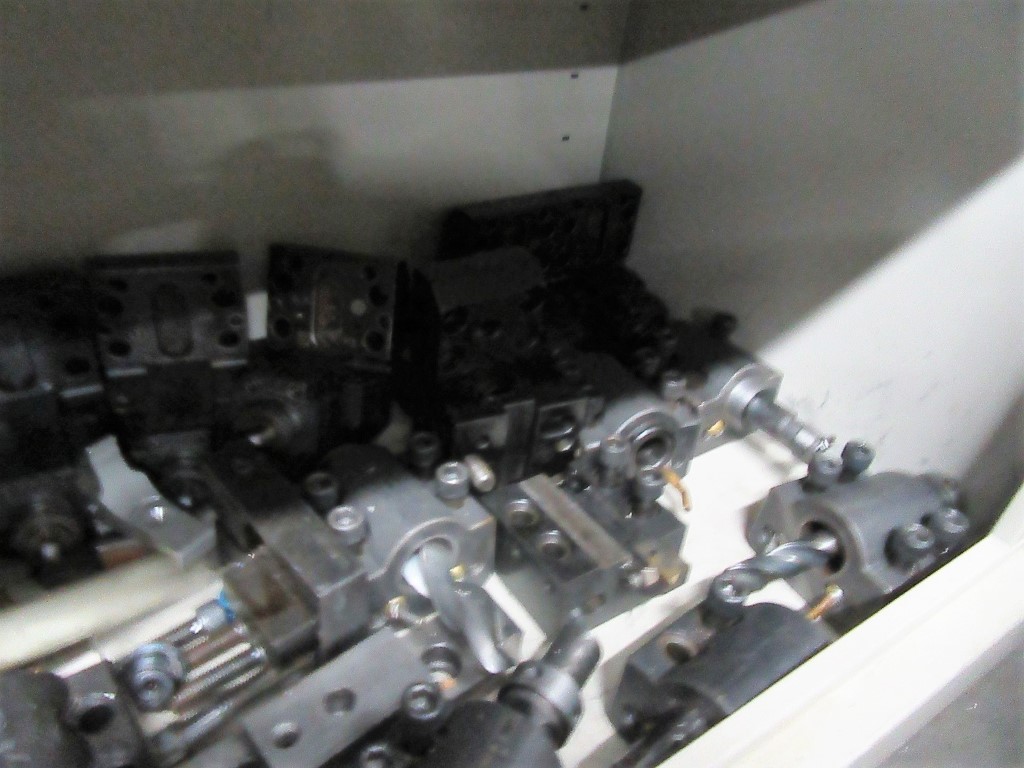

Misc. Tool Holders
Chip conveyor
Twin Work Lights
Coolant System
(2) 6" dia.Chucks, Collet Chuck
