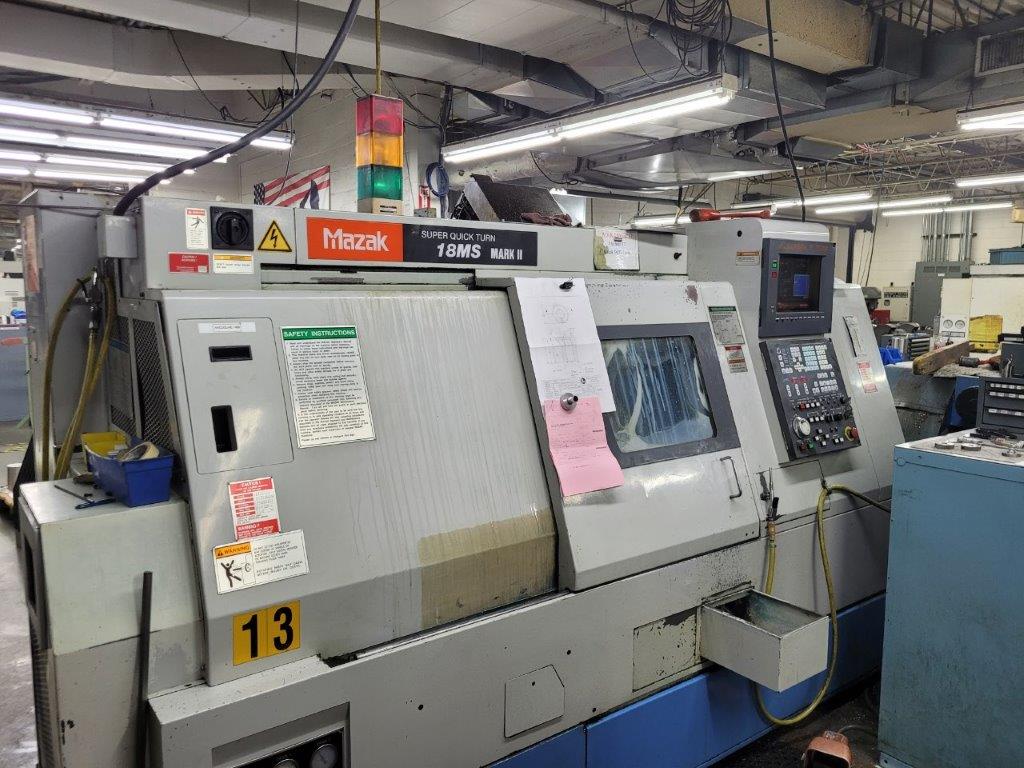

1997 MAZAK SUPER QUICK TURN 18MS, MACHINE # 8063

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


Super Quick Turn 18MS
Lathes and Turning Centers CNC
Slant Bed Turning center
used
11360 (LB)
1997
$0.00

Description

Reference #:8063
Machine Type:CNC Lathes
Year:1997
Manufacturer:Mazak
Model:Super Quick Turn 18MS

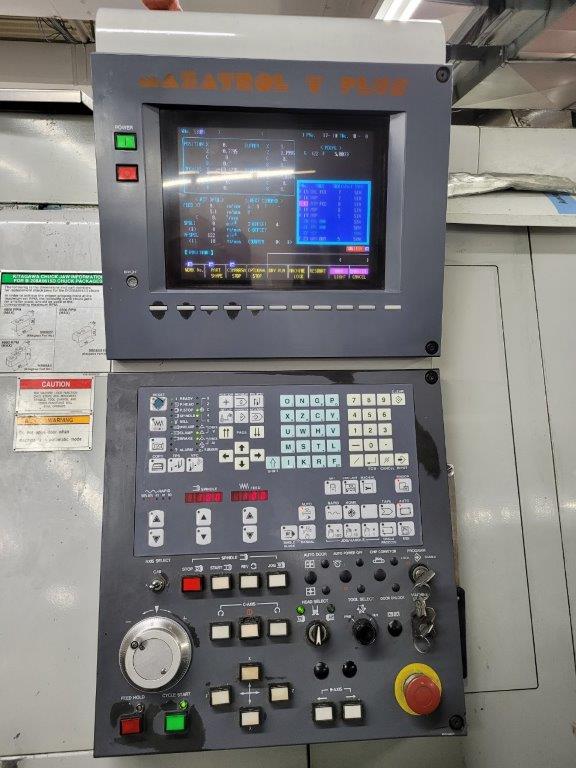

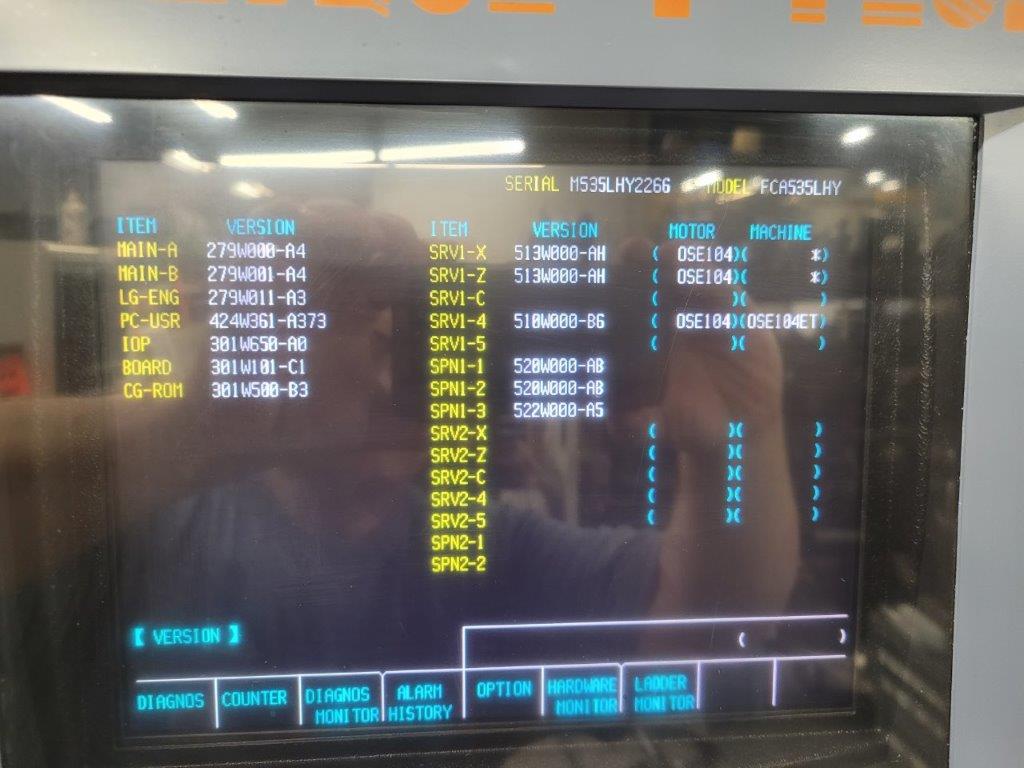

Control:Mazatrol T-PLUS
Condition:Used
Under Power:Yes
Code:L2125MS

Capacity:

  • Max. Swing: 20.90"
  • Swing Over Carriage: 15.74"
  • Max. Machining Diameter: 11.75"
  • Max. Distance Between Spindles: 22.7"
  • Max. Bar Work Diameter: 2.51"

Stroke:

  • X-Axis Stroke: 7.125"
  • Z-Axis Stroke: 22.75"

First Spindle:

  • Speed: 35 ~ 4000 RPM
  • Number of Spindle Speed Ranges: Stepless
  • Spindle Nose: A2-8
  • Spindle Bore: 2.99"
  • Min. Spindle Indexing Increment: 0.001 degree
  • Spindle Motor: 25 HP

Second Spindle:

  • Second Spindle Speed: 35 ~ 4000 RPM
  • Second Headstock Stroke (B-Axis): 23.0"
  • Second Headstock Rapid Traverse Rate: 708 IPM
  • Spindle Motor: 10 HP

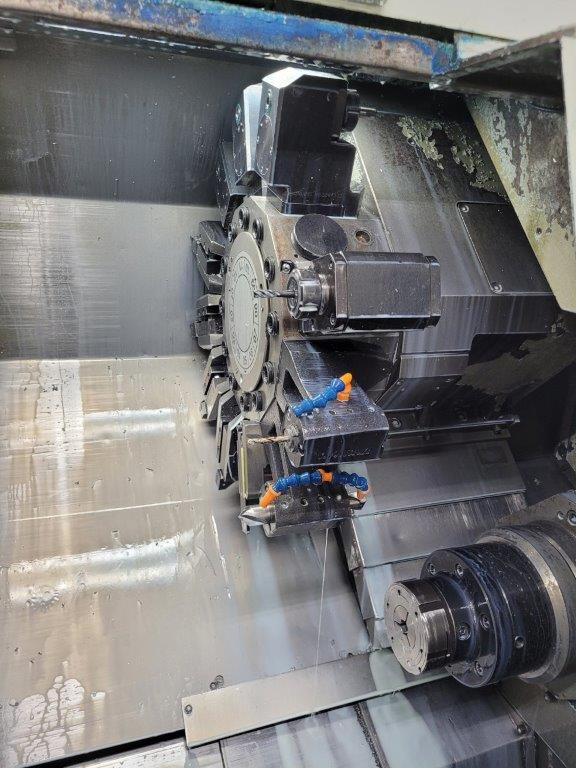

Turret:

  • Turret Type: Dodecagonal Drum
  • Turret Tool Capacity: 12 Tool Total
  • Tool Shank Height: 1.00"
  • Boring Bar Shank Diameter: 1.50"
  • Turret Indexing Time (Chip-to-chip): 1.6 sec/step

Rotary Tool:

  • Rotary Tool Spindle Speed: 120 ~ 3000 RPM

Traverse Rate:

  • Rapid Traverse Rate (X,Z): 1181 IPM
  • Jog Feedrate (X,Z): 0.04 ~ 78.74 IPM

Motor:

  • 1st spindle Motor (30 min / continuous rating): 25 / 20 HP
  • 2nd spindle motor (10 min. rating): 10 HP
  • Rotary Tool Motor: 5 HP
  • Coolant Pump Motor: 0.25 HP

Power:

  • Electric Power Source (30 min / Continuous rating): 48.8 kVA / 38.6 kVA
  • Air Supply: 71 PSI / 3.53 Ft3/Min

Tank Capacity:

  • Coolant Tank Capacity: 52.8 Gallons

Machine Size:

  • Machine Height: 80.3"
  • Floor Space Requirement: 124.4" x 63.4"
  • Machine Weight: 11, 360 Lbs

Equipped WithL

  • Mazatrol T-Plus Control
  • Automatic Parts Catcher
  • Three (3) Live Milling Holders
  • Chip Conveyor
  • Live Tooling (Full C-Axis)

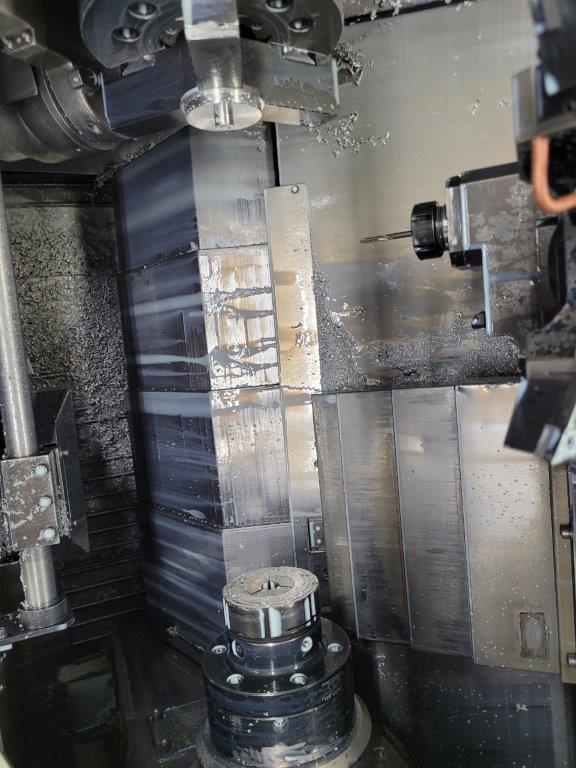

  • SubSpindle
  • Mark II Non-Lift Style Turret
  • Kitagawa QB 210 A6 Quick Change Chuck for Main Spindle
  • Kitagawa QB 206 A6 Quick Change Chuck for Sub
  • All Available Manuals
