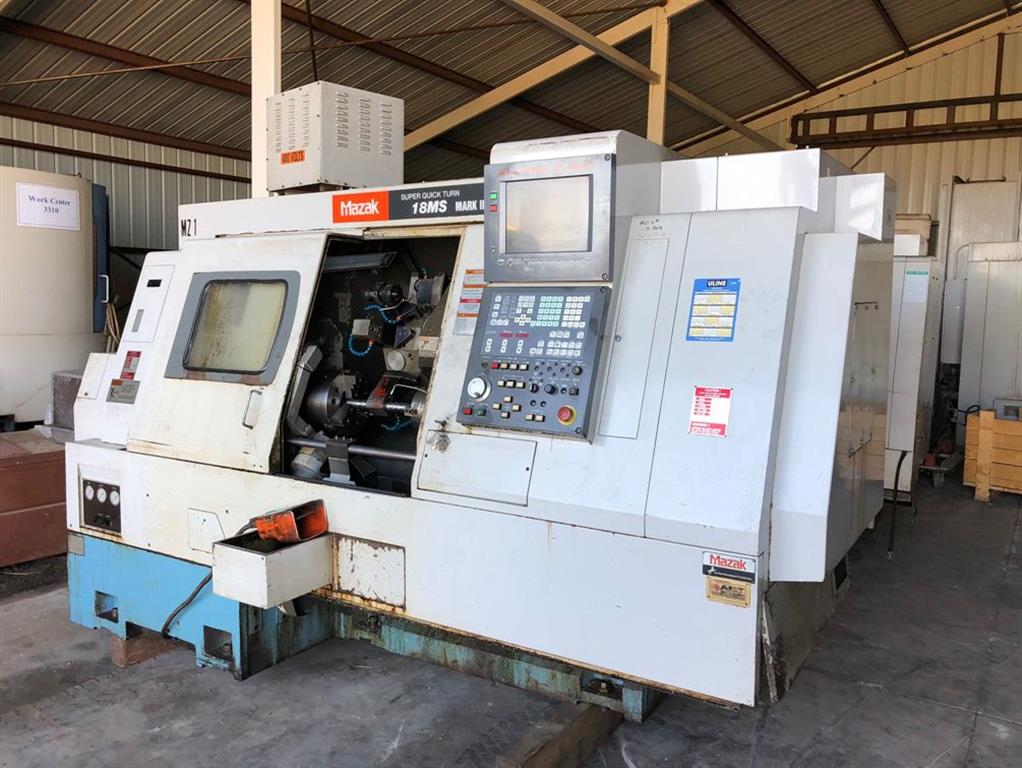

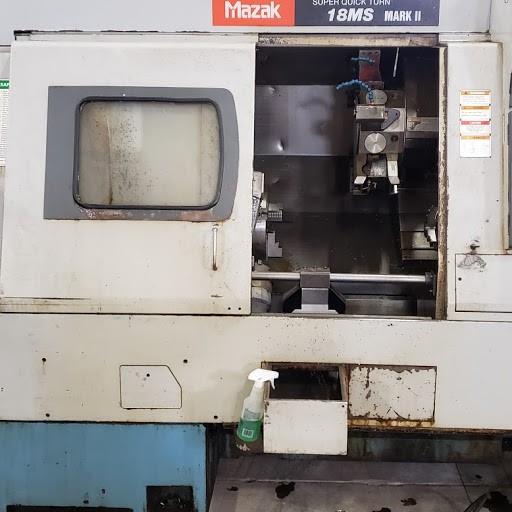

1997 MAZAK SUPER QUICK TURN 18MS CNC TURNING CENTER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


Super Quick Turn 18MS
L2125MS
Lathes and Turning Centers CNC
Slant Bed Turning center
used
(KG)
1997
$0.00

Description

Capacity:

  • Max. Swing: 20.90\"
  • Swing Over Carriage: 15.74\"
  • Max. Machining Diameter: 11.75\"
  • Max. Distance Between Spindles: 34.25\"
  • Max. Bar Work Diameter: 2.51\"

Stroke:

  • X-Axis Stroke: 7.125\"
  • Z-Axis Stroke: 22.75\"

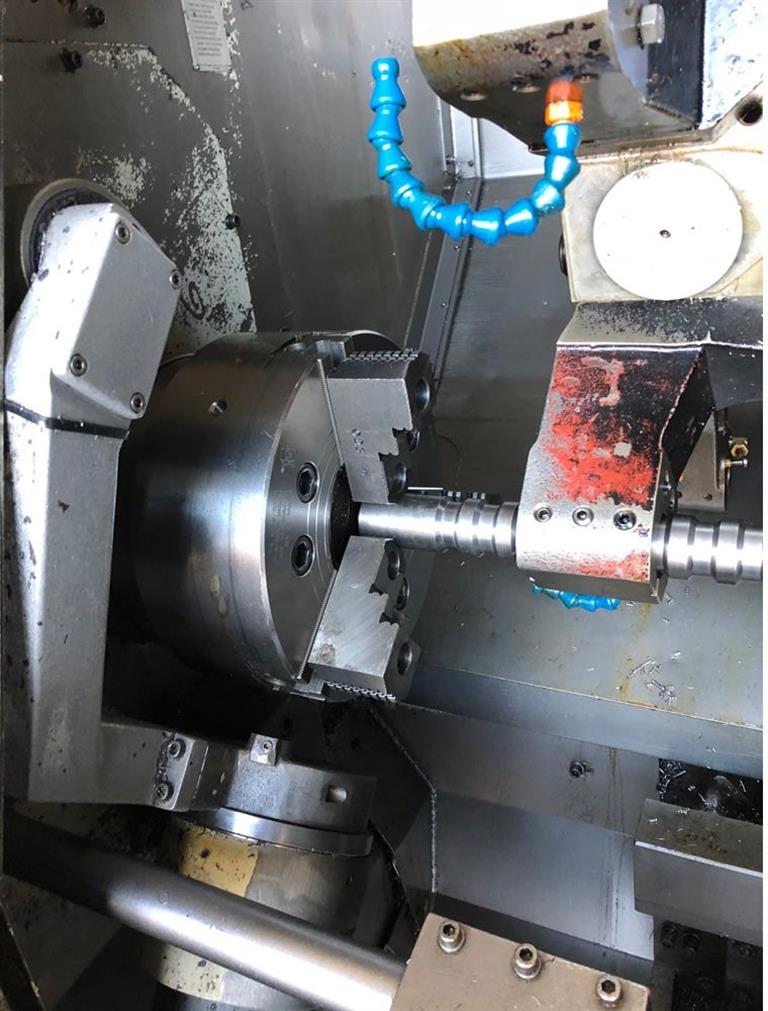

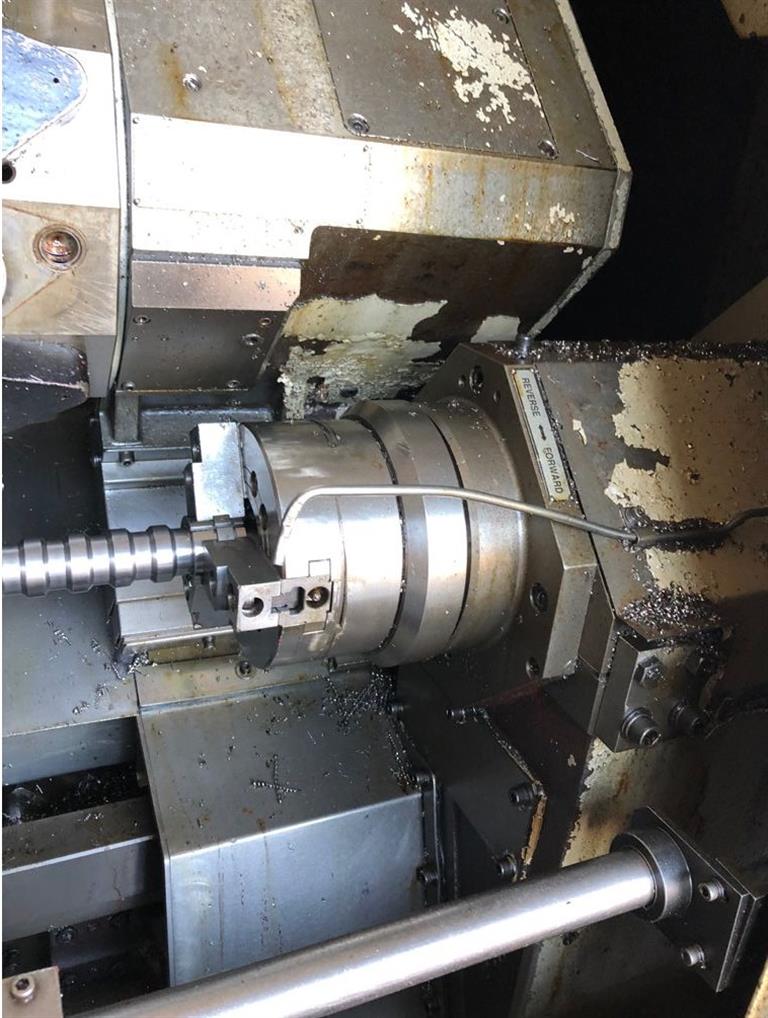

First Spindle:

  • Speed: 35 ~ 4000 RPM
  • Number of Spindle Speed Ranges: Stepless
  • Spindle Nose: A2-6
  • Spindle Bore: 2.99\"
  • Min. Spindle Indexing Increment: 0.001\"

Second Spindle:

  • Second Spindle Speed: 180 ~ 4000 RPM
  • Second Headstock Stroke: 23.25\"
  • Second Headstock Rapid Traverse Rate: 708 IPM

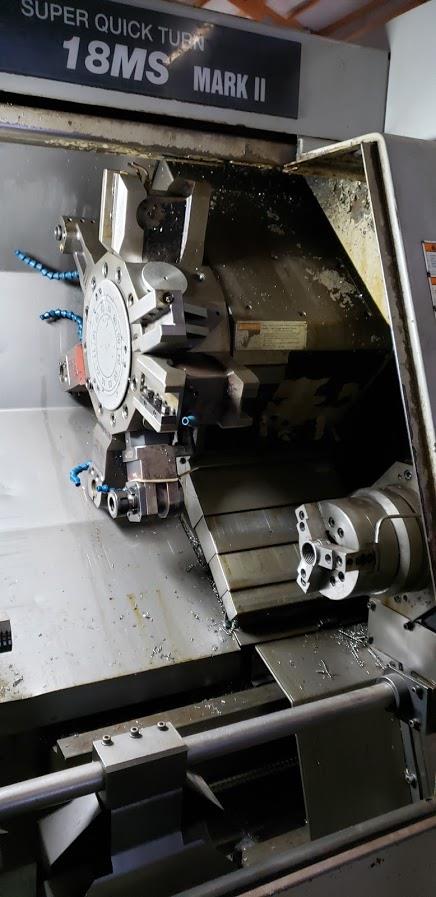

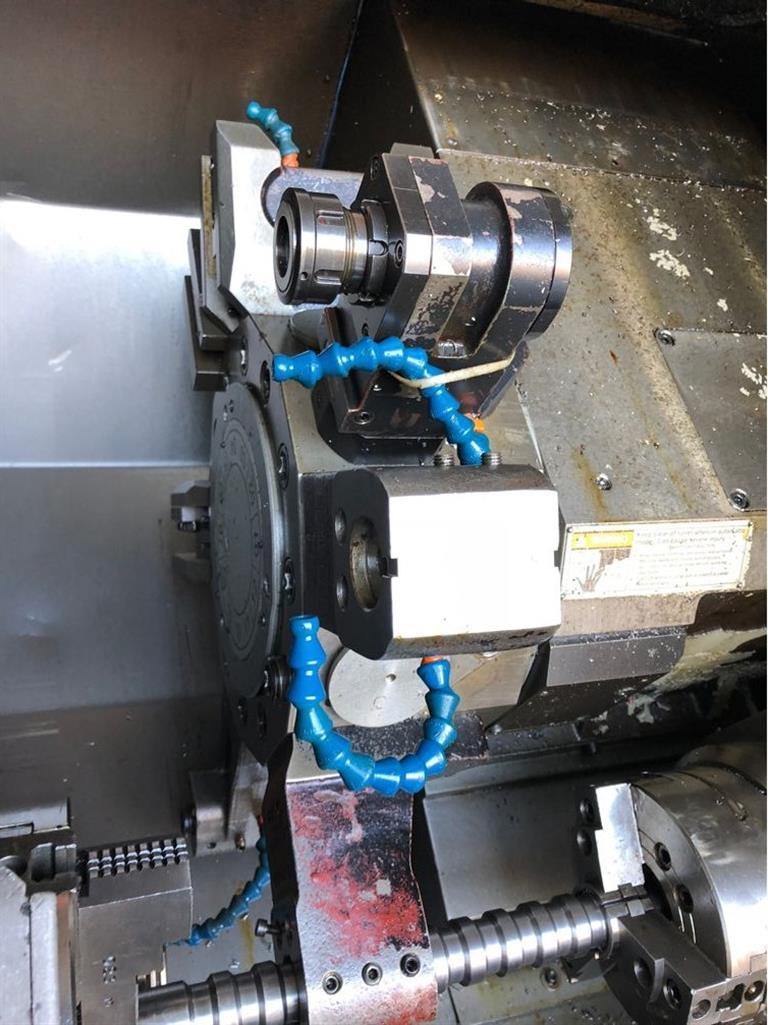

Turret:

  • Turret Type: Dodecagonal Drum
  • Turret Tool Capacity: 12 Tool Total
  • Tool Shank Height: 1.00\"
  • Boring Bar Shank Diameter: 1.50\"
  • Turret Indexing Time (Chip-to-chip): 1.6 sec/step

Rotary Tool:

  • Rotary Tool Spindle Speed: 120 ~ 3000 RPM

Traverse Rate:

  • Rapid Traverse Rate (X,Z): 1180 IPM
  • Jog Feedrate (X,Z): 0.04 ~ 78.74 IPM

Motor:

  • 1st spindle Motor (30 min / continuous rating): 25 / 20 HP
  • 2nd spindle motor (10 min. rating): 10 HP
  • Rotary Tool Motor: 10 min rating
  • Coolant Pump Motor: 0.25 HP

Power:

  • Electric Power Source (30 min / Continuous rating): 48.8 kVA / 38.6 kVA
  • Air Supply: 71 PSI / 3.53 Ft
