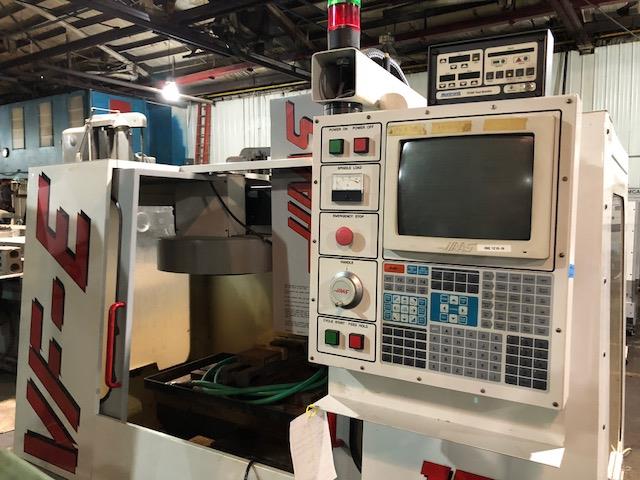

1997 HAAS VF-E VERTICAL MACHINING CENTER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


VF-E
M0185
Machining Centers Vertical Horizontal CNC
Vertical Machining Centers
used
(KG)
1997
$0.00

Description

Reference #:6886
Machine Type:
Year:1997
Manufacturer:Haas
Model:VF-E

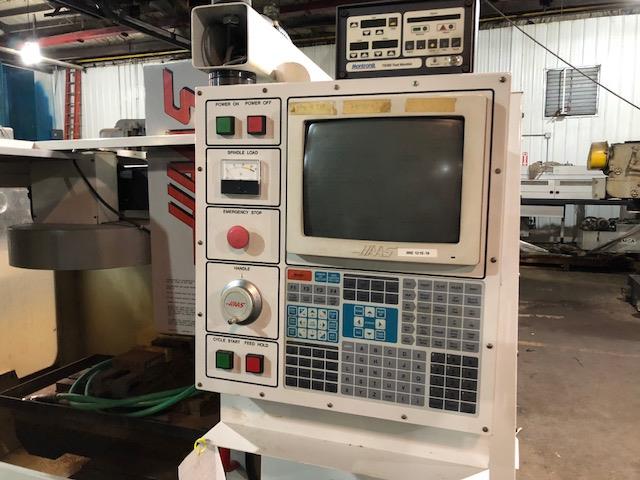

Control:Haas 32 BIT
Condition:Never Been Used
Under Power:Yes
Code:M0185

Table:

  • Table Size: 26" x 14"
  • Maximum Table Load: 2500 Lbs

Travels:

  • X-Axis Travel: 20"
  • Y-Axis Travel: 16"
  • Z-Axis Travel: 20"
  • Spindle Nose to Table Top: 4" - 24"

Spindle:

  • Spindle Speeds Minimum - Maximum: 7500 RPM
  • Spindle Taper: CT 40 Taper
  • Main Motor (30 min. / cont.): 15 HP

Tool Changer:

  • Tool Changer Positions: 20 ATC

Rapids:

  • Rapid Traverse (XY/ Z): 710 IPM

Equipped With:

  • High Torque Spindle Motor
  • Version 8.9N Software
  • User Definable Macros
  • Rigid Tapping
  • 1 MB Program Memory
  • Chip Auger
  • 3.5" Floppy Disk Drive
  • Monotronic TS-100 Tool Monitor
  • Marposs Gaging
  • Programmable Coolant Nozzles
  • Seperate Coolant Tank & Pump With Built-In Chip Auger
  • Nitrogen Counterbalance
  • 6" Kurt Vise

Comments:

  • New Condition - The machine was never used
  • The machine can be inspected under power in Michigan
