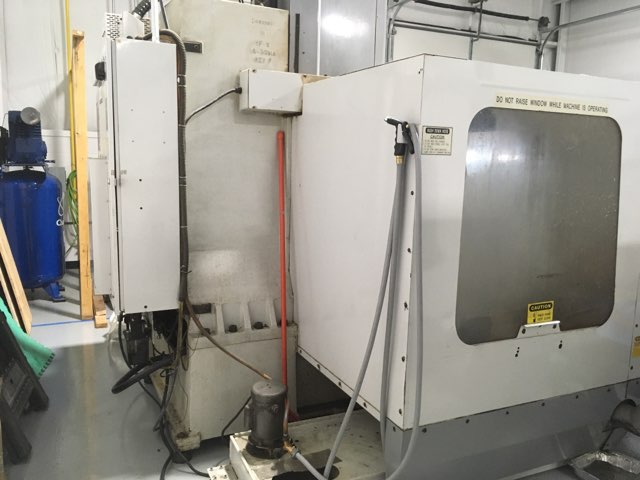

1997 HAAS VF-4

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


VF-4
M0185
Vertical Turret Lathes VTL
CNC Vertical Turret Lathes
used
(KG)
1997
$0.00

Description

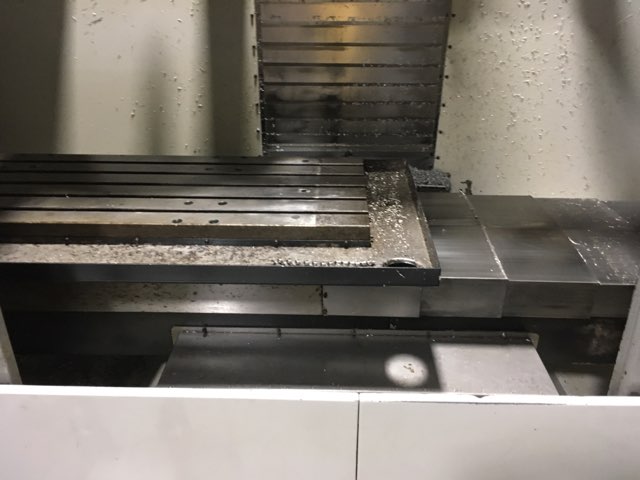

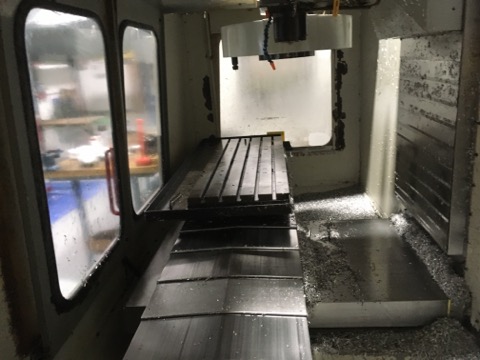

Table:

  • Table Size: 52\" x 18\"
  • Maximum Table Load: 3,500 LBS

T-Slots:

  • T-Slot Width: 0.0625\"
  • Center Distance: 3.15\"

Travels:

  • X-Axis Travel: 50\"
  • Y-Axis Travel: 20\"
  • Z-Axis Travel: 25\"
  • Spindle Nose to Table Top: 4\" - 29\"

Spindle:

  • Spindle Speeds Min-Max: 0 - 7,500 RPM
  • Spindle Taper: CT 40 Taper
  • Main Motor: 15 HP

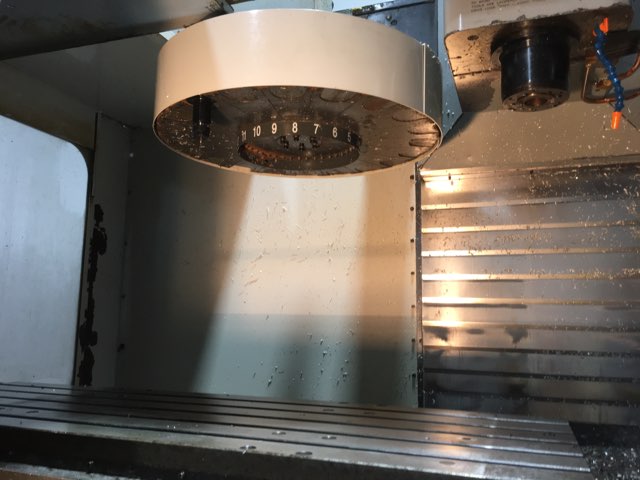

Tool Changer:

  • Tool Changer Positions: 20 ATC
  • Max. Tool Diameter: 3.5\"
  • Max. Tool Weight: 12 Lbs
  • Tool to Tool (avg.): 4.2 seconds
  • Chip To Chip (avg.): 4.5 seconds

Rapids:

  • Rapid Traverse: 710 IPM
  • Cutting Feed Rate: 500 IPM

Machine:

  • Weight: 13,300 Lbs
  • Power Required: 200-250 VAC
  • Dimensions: 118\" x 110\" x 117.5\"

Equipped With:

  • 20-HP Vector Drive
  • 20 Tool Auto Tool Changer
  • Coolant Tank
