Description:

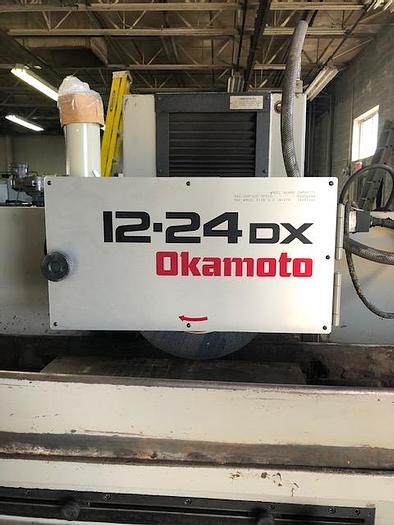

: OKAMOTO
Model: ACC-1224DX
New Date: 1996

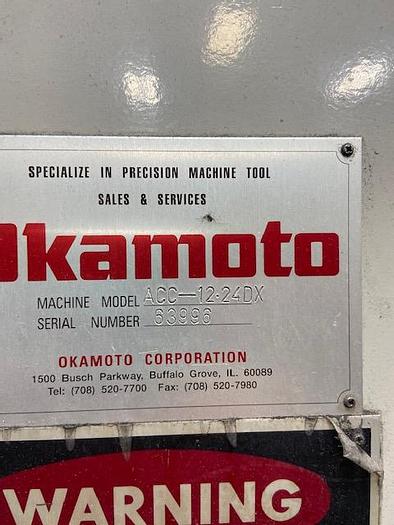

s/n 63996

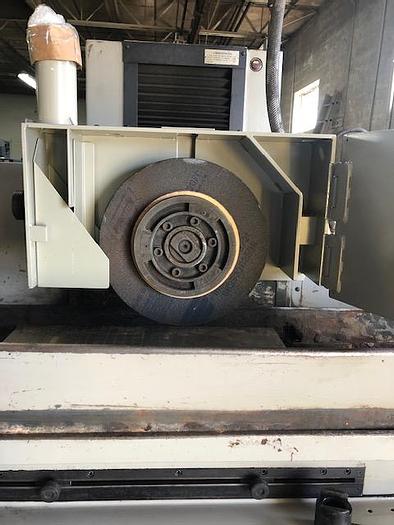

Wheel Size: 12" x 1.5" x 5"
Maximum Height Under 12" Wheel: 13.6"
Table Speed: Up to 82 FPM Infinitely Variable
Maximum Longitudinal Table Travel: 29-1/2"
Auto Cross Feed Increment: .002" to .80"
Auto Continuous Cross Feed: 4 to 40 FPM
Cross Feed, Manual, Hand Feed Per Rev.: .25"
Graduation of Hand Wheel: .001"
Maximum Cross Feed, Manual: 14"
Auto Incremental Down Feed Increments: .00005" to .0015"
Power Rapid Wheel Positioning Rate: 16 IPM
EQUIPPED WITH:
Over the Wheel Hydraulic Dresser
Servo Driven Down Feed
Auto Incremental Down Feed for Both Surface & Plunge Operations
Dual Rate Auto Down Feed with Coarse & Fine Selections

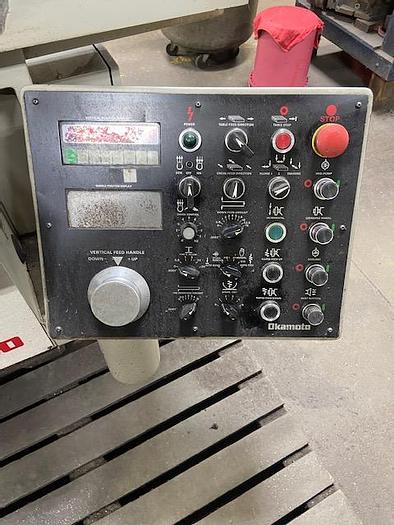

Digital Display for Vertical Axis
Spark Out Passes (0 to 5)
Auto Table Park at Completion of Grind Cycle
Electronic Hand Wheel for Manual Vertical Movement with Each Graduation
Equivalent to .00001", .0001", .001"
Power Rapid Wheel Positioning
Hydraulic Table Traverse
Automatic Cross Feed
12" x 24" Fine Pole Electromagnetic Chuck
Coolant Tank & Pump with 20" Wide Material Filter System
Tank Size: 32" x 39" x 6" Deep (Approx. 32 Gallon Capacity)
No Piping, Unit is on Wheels
1/8 HP Motor, Wired for 3 Phase, 50/60 Hz, 230/460 Volts
5 HP Spindle Motor, Wired for 3 Phase, 60 Hz, 230-460 Volts
Currently Wired for 460 / 230 3/60 Volts
Overall Machine Size: 108" L-R x 76" F-B x 70" H x 5,280 Lbs.
Coolant Tank & Pump: 32" L-R x 43" F-B x 28" H
Specifications:
Manufacturer Okomoto
Model DX 1224
Year 1996
Condition Used
Model ACC-1224DX
