A77
M0130
Machining Centers Vertical Horizontal CNC
used
(KG)
1996
$0.00

Description

'

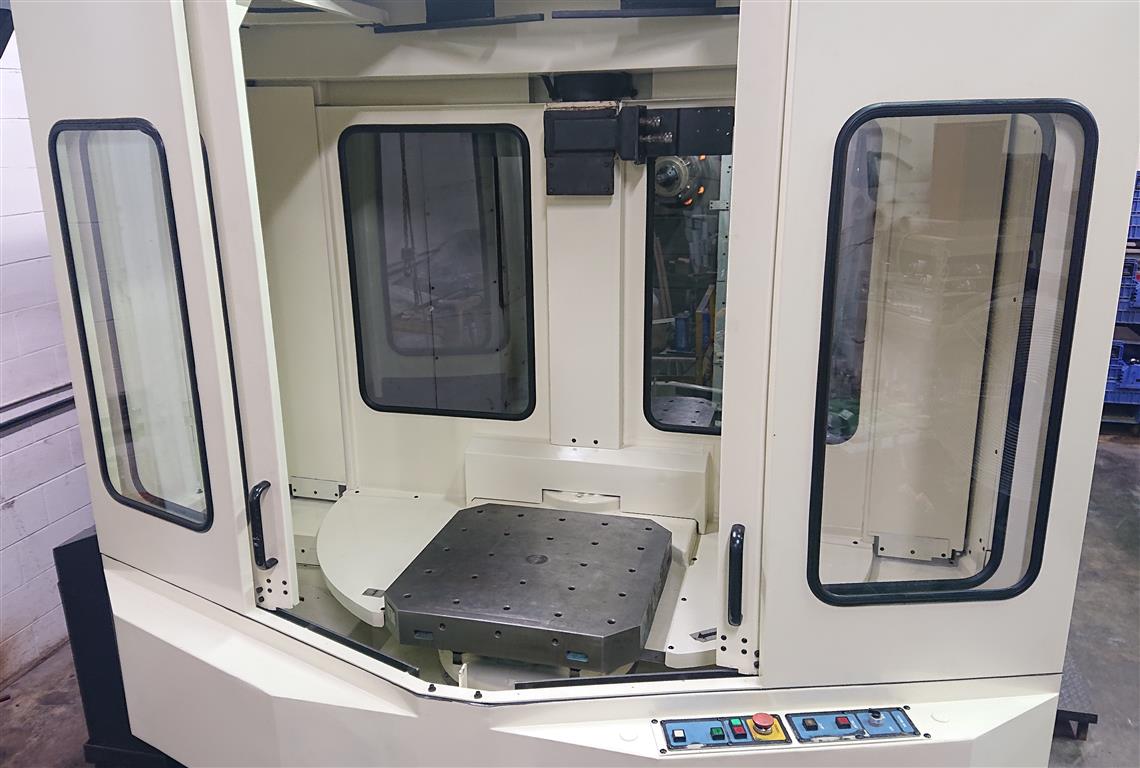

Pallet:

  • Pallet Size: 24.8\" x 24.8\"
  • Pallet Indexing: .001 degree
  • Number of Pallets: 2
  • Maximum Load On Pallet: 2000 Lbs

Travels:

  • X-Axis Travel: 31.5\"
  • Y-Axis Travel: 29.5\"
  • Z-Axis Travel: 30.3\"
  • Rapid Traverse Rate: 1181 IPM X,Y,Z

Spindle:

  • Spindle Speeds: 10,000 RPM
  • Spindle Taper: HSK 100
  • Main Motor: 40 HP

Tool Changer:

  • Tool Changer Positions: 40 ATC

Weight:

  • Machine Weight: 38,000 LBS.

Equipped With:

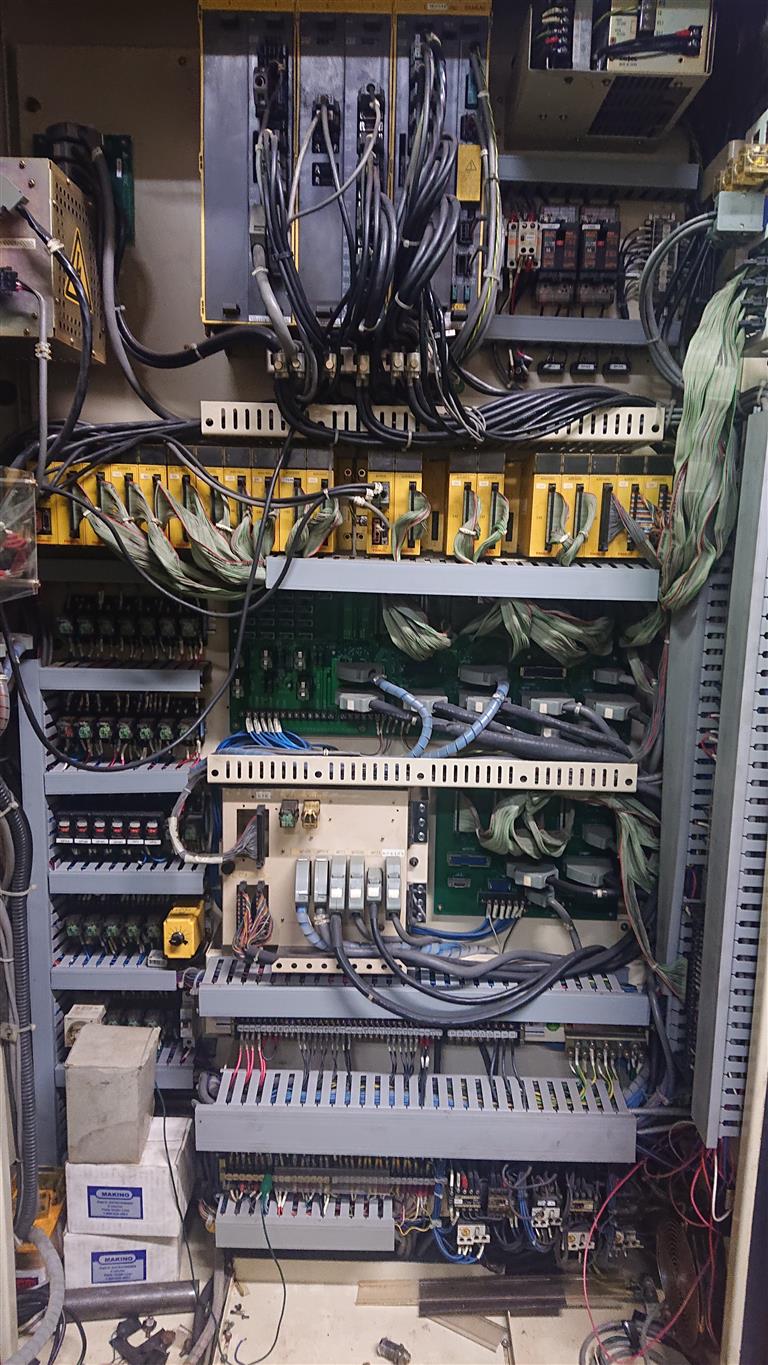

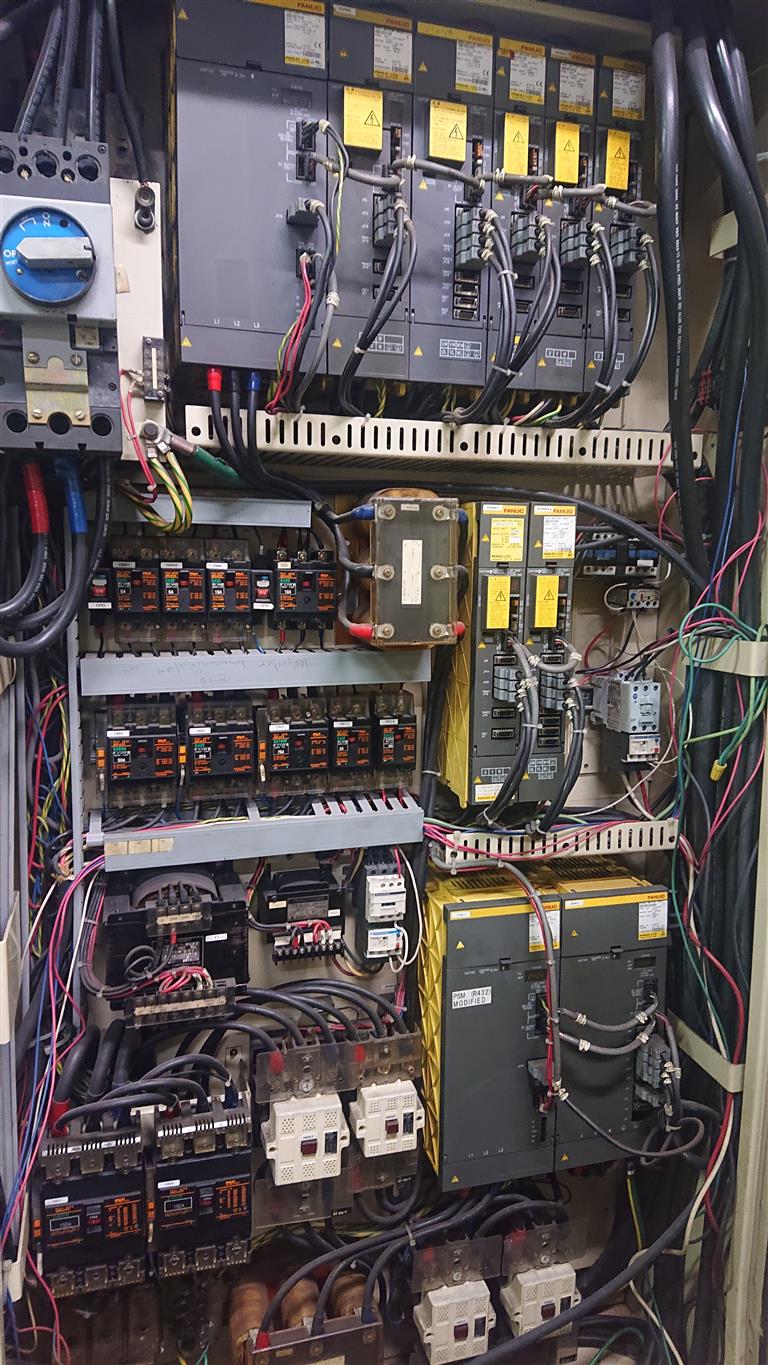

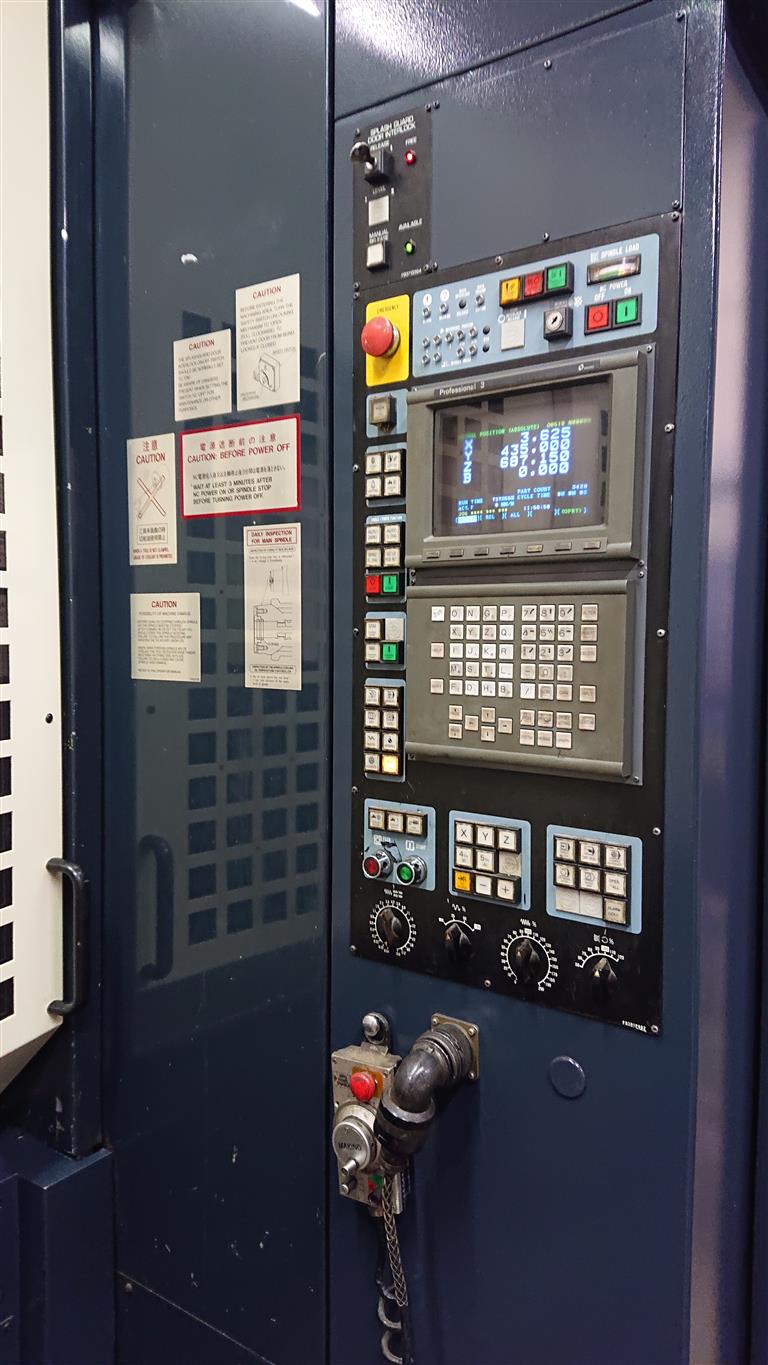

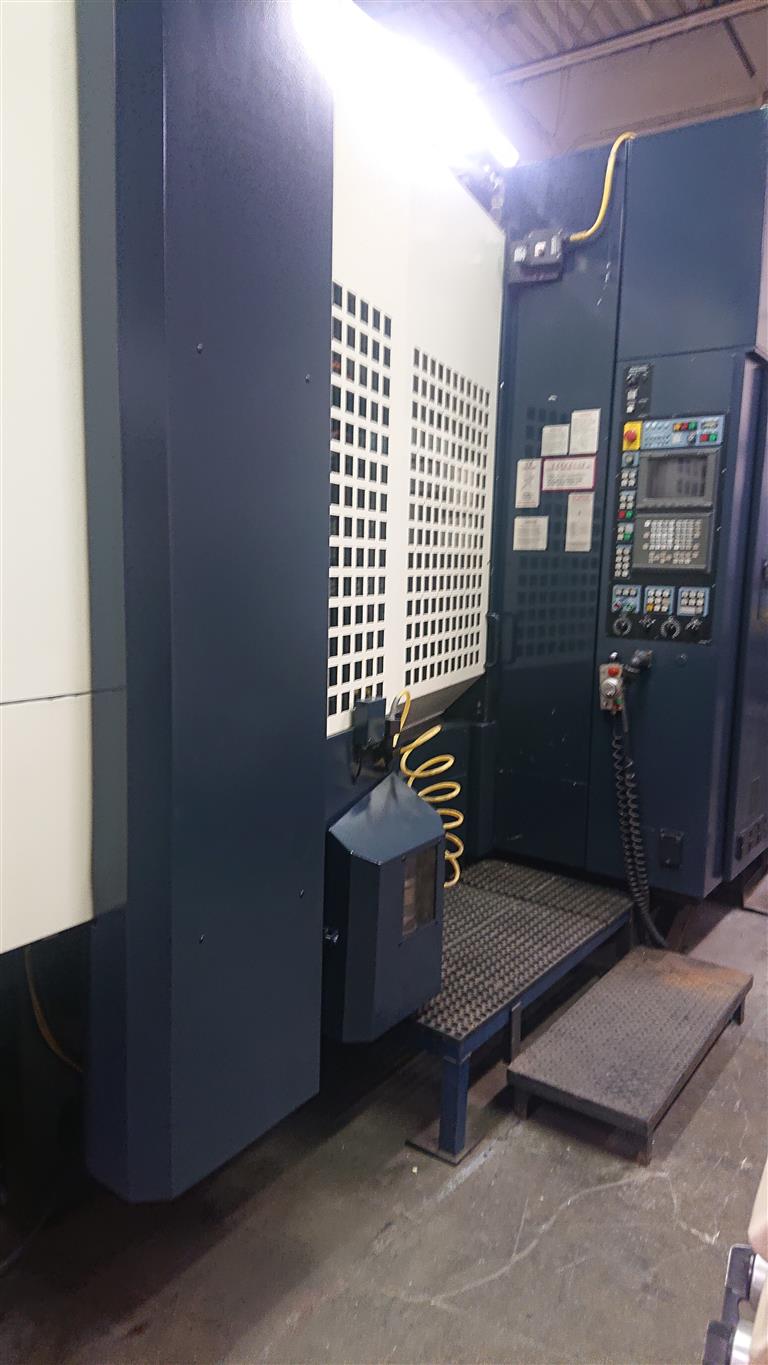

  • Professional 3 (Fanuc 16MB) Control
  • (2) w/ tapped holes, (1) w/ t slots (master)

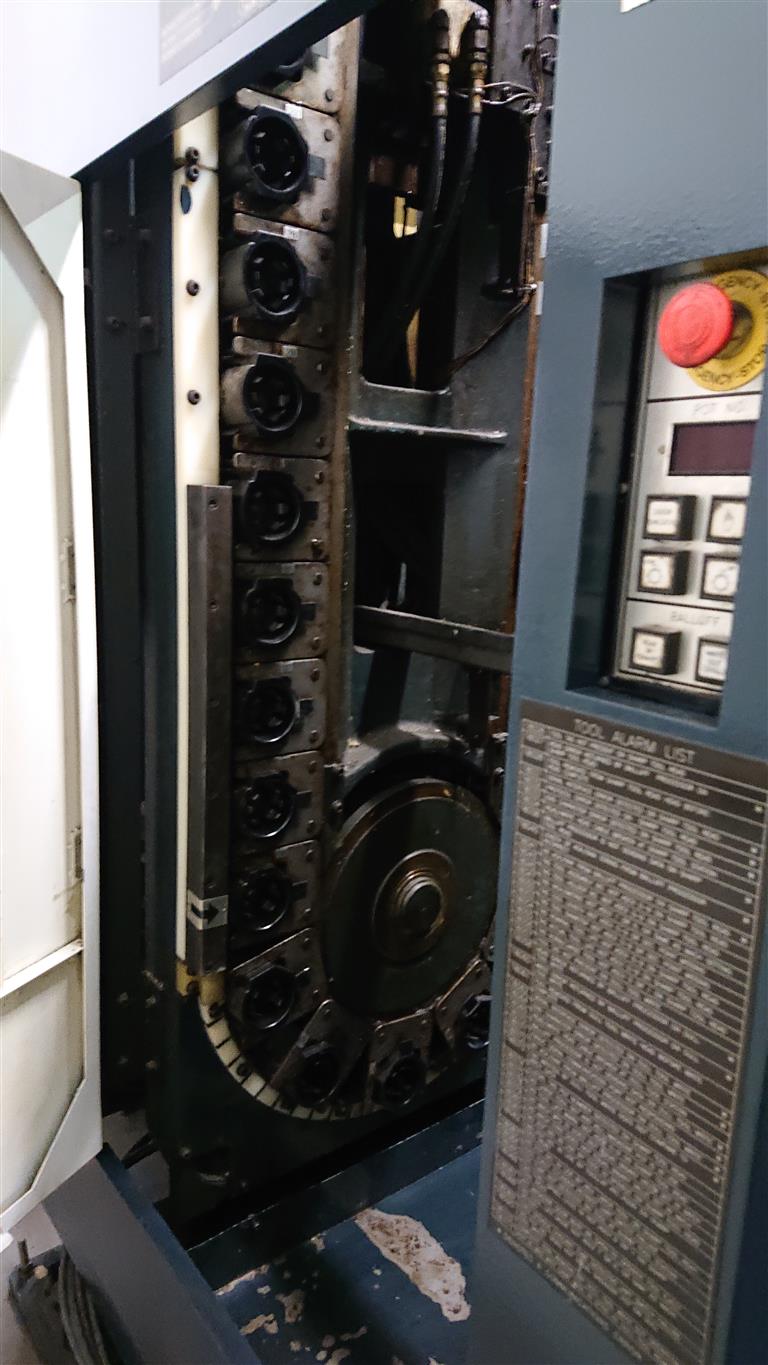

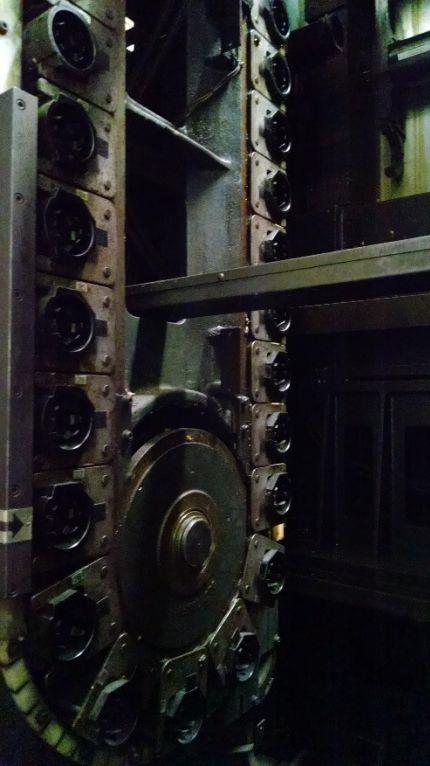

  • 40 Position ATC, Random or Designated Pot, w/ Tool Breakage Detect
  • Smog Hog with Air Filter

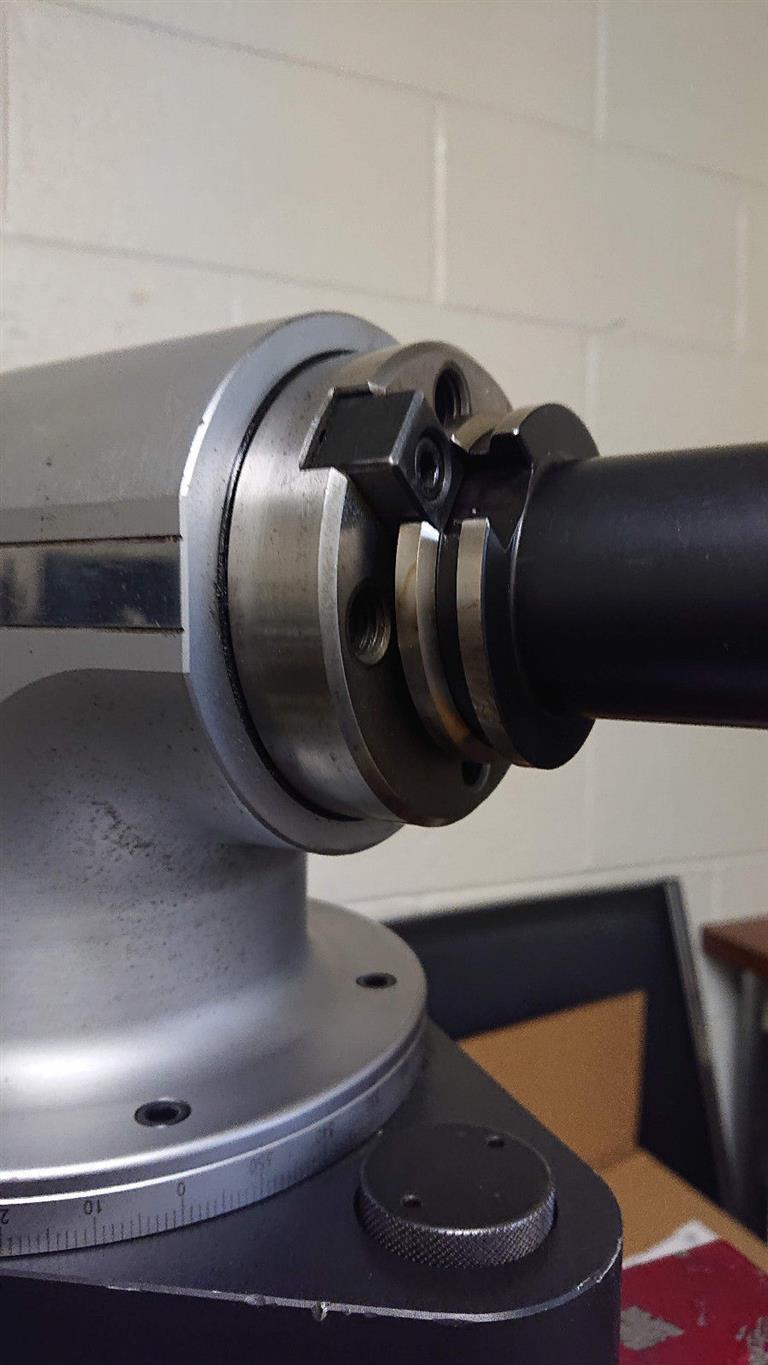

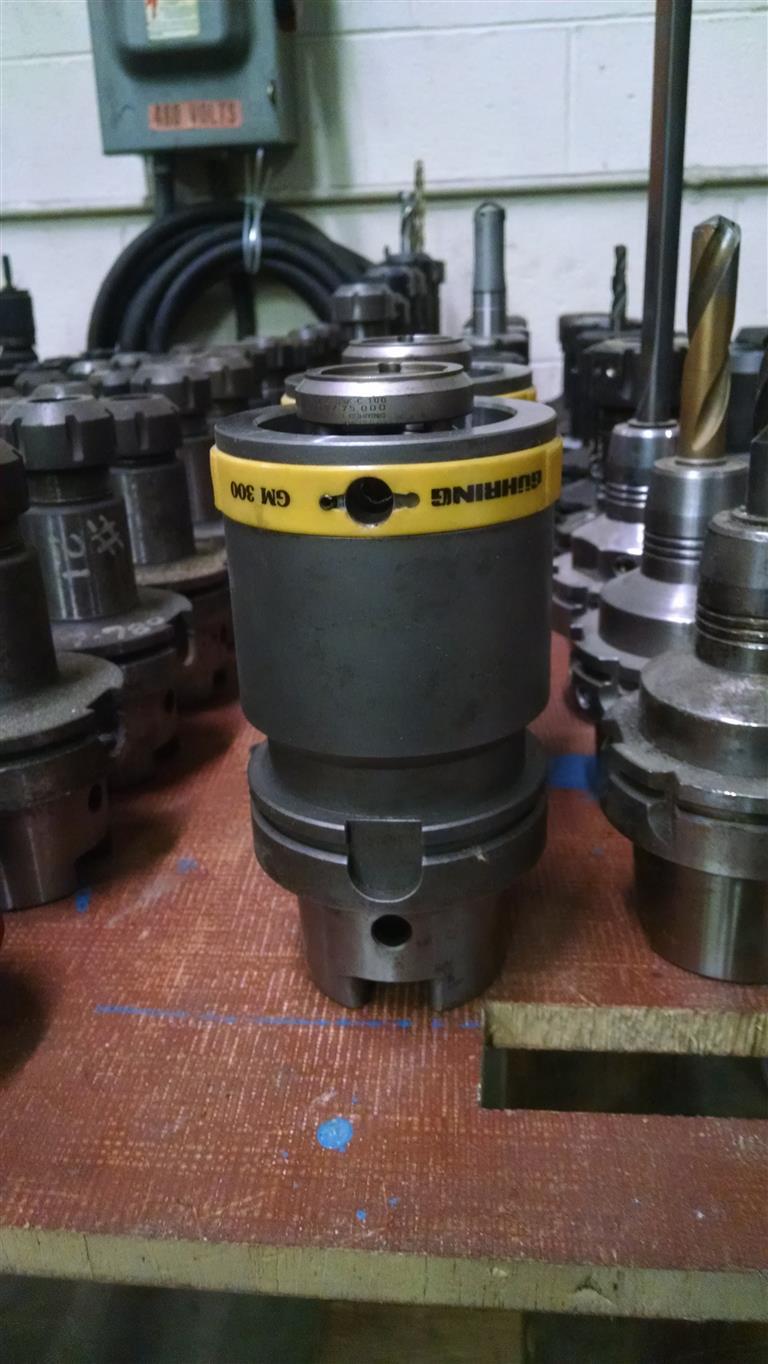

  • Approximately 180 HSK 100 Tool Holders
  • All axes with Heidenhain Scales
  • Dual Speed Double Wound Direct Drive Spindle Motor (40 HP)
  • Full 4th Axis Pallet Rotation

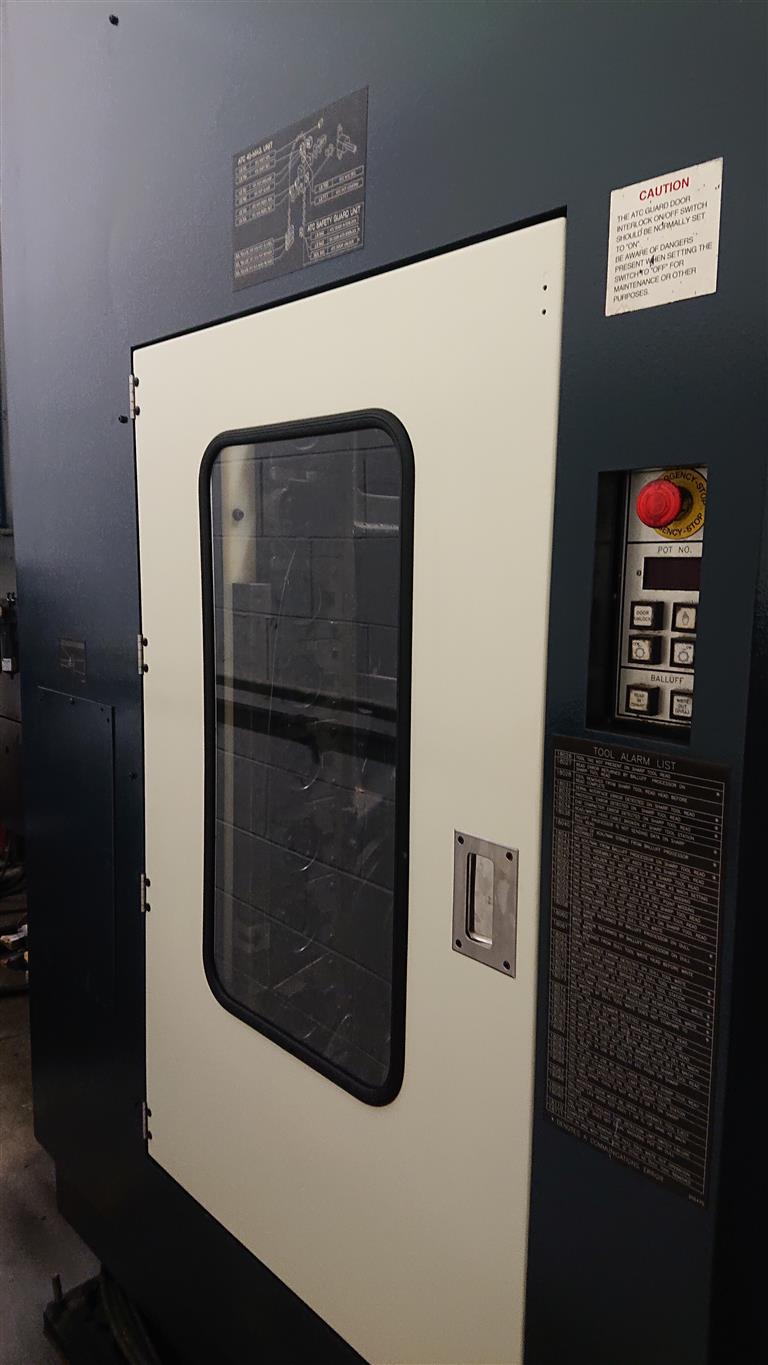

  • Pallet system with Auto Pneumatic Doors and Part Clamping Controls

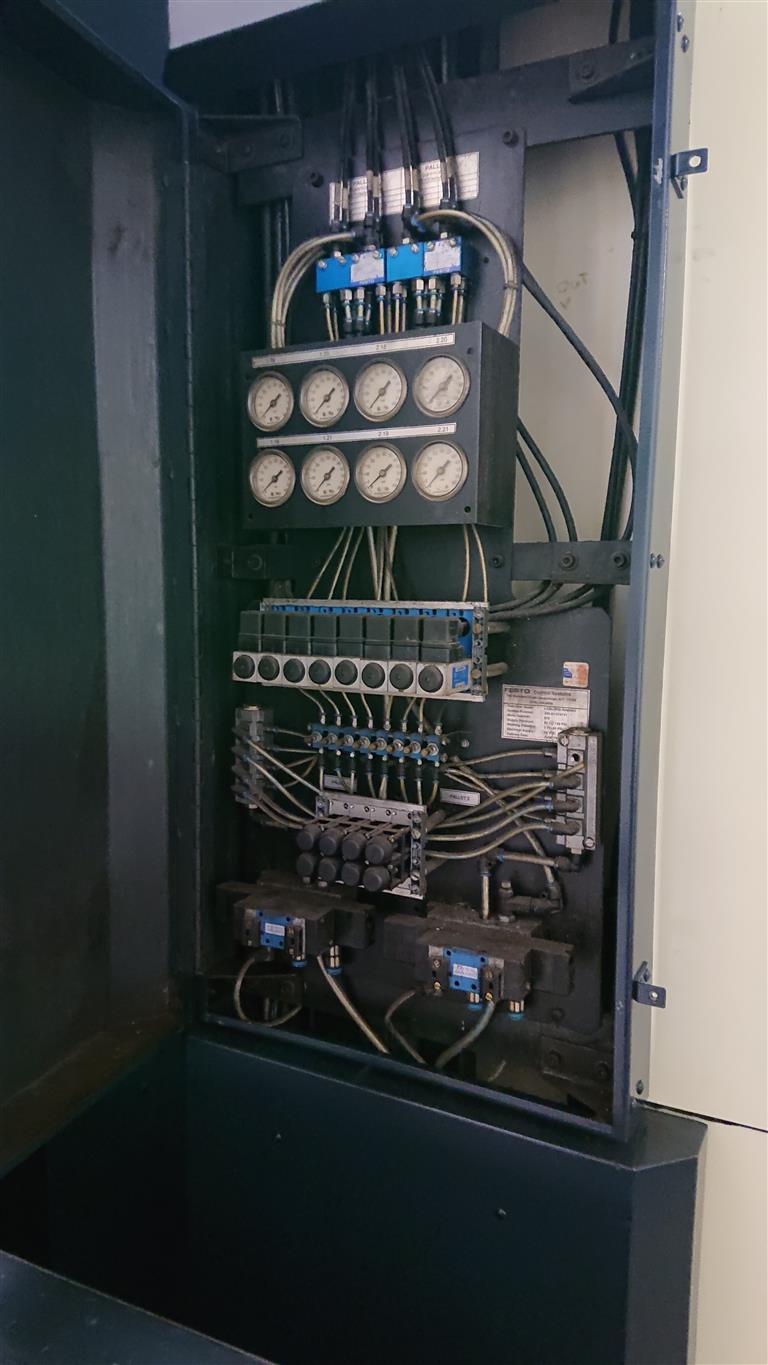

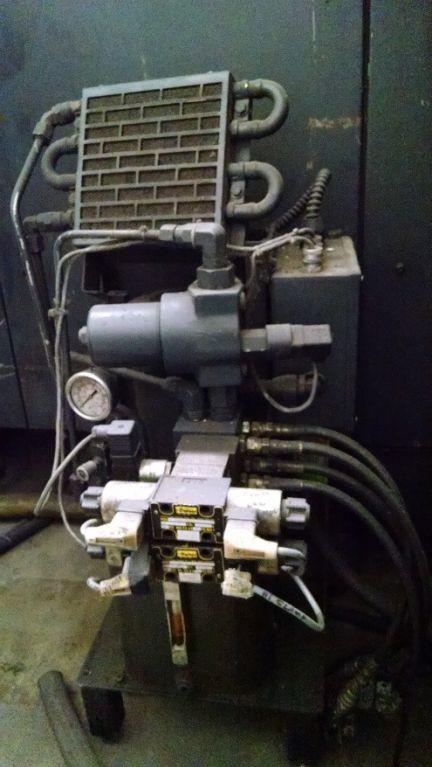

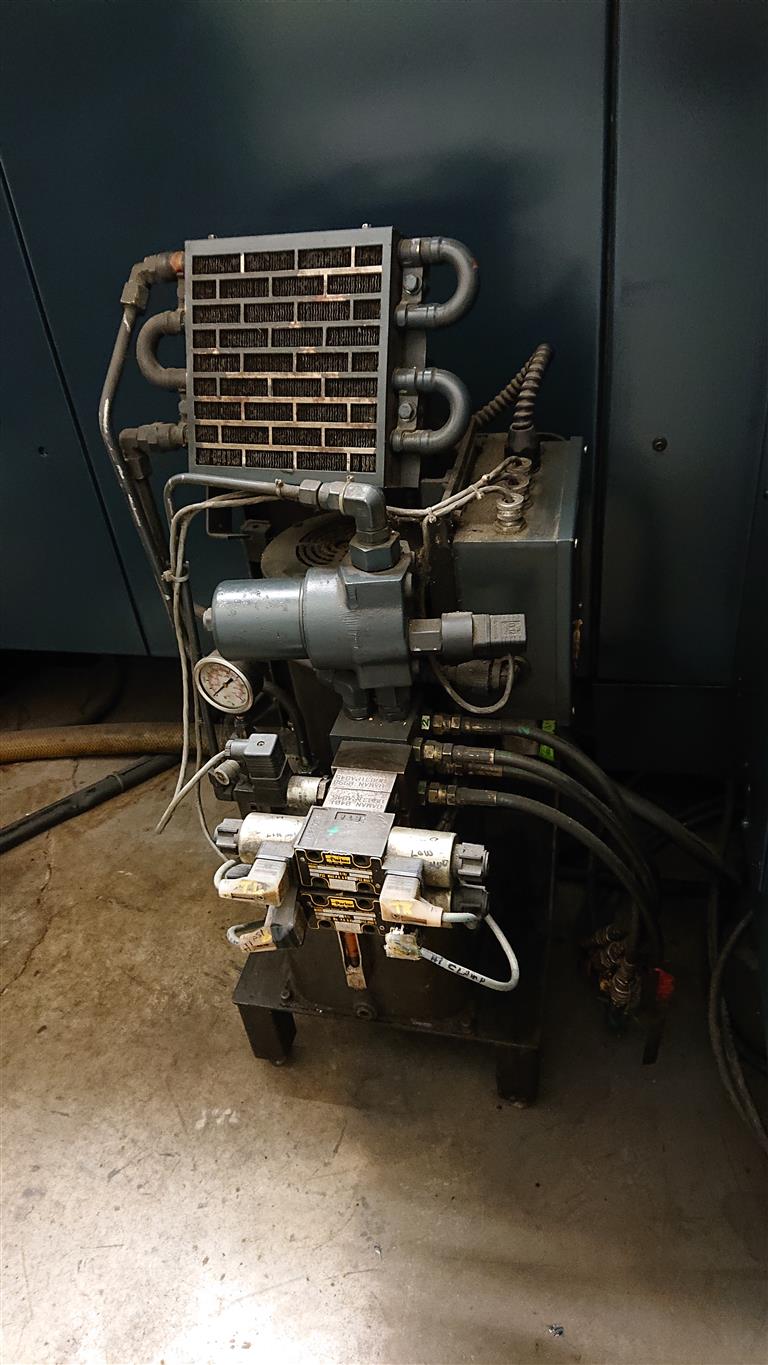

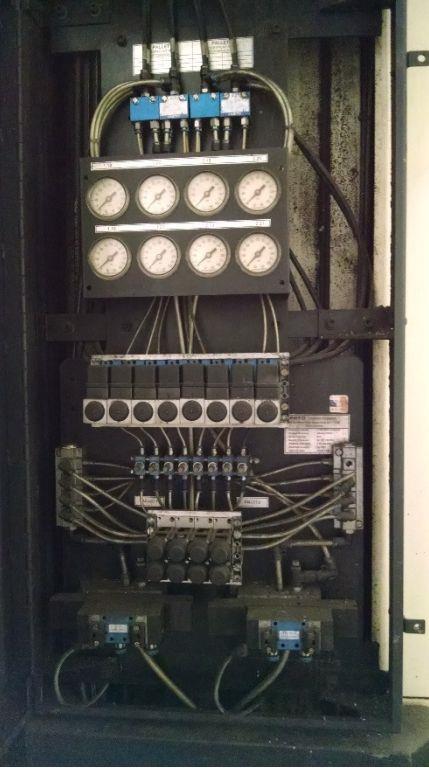

  • Pallet / Fixture: Hydraulic and Pneumatic Clamping Capable
  • (Rotary Couplings above Pallet Changer)

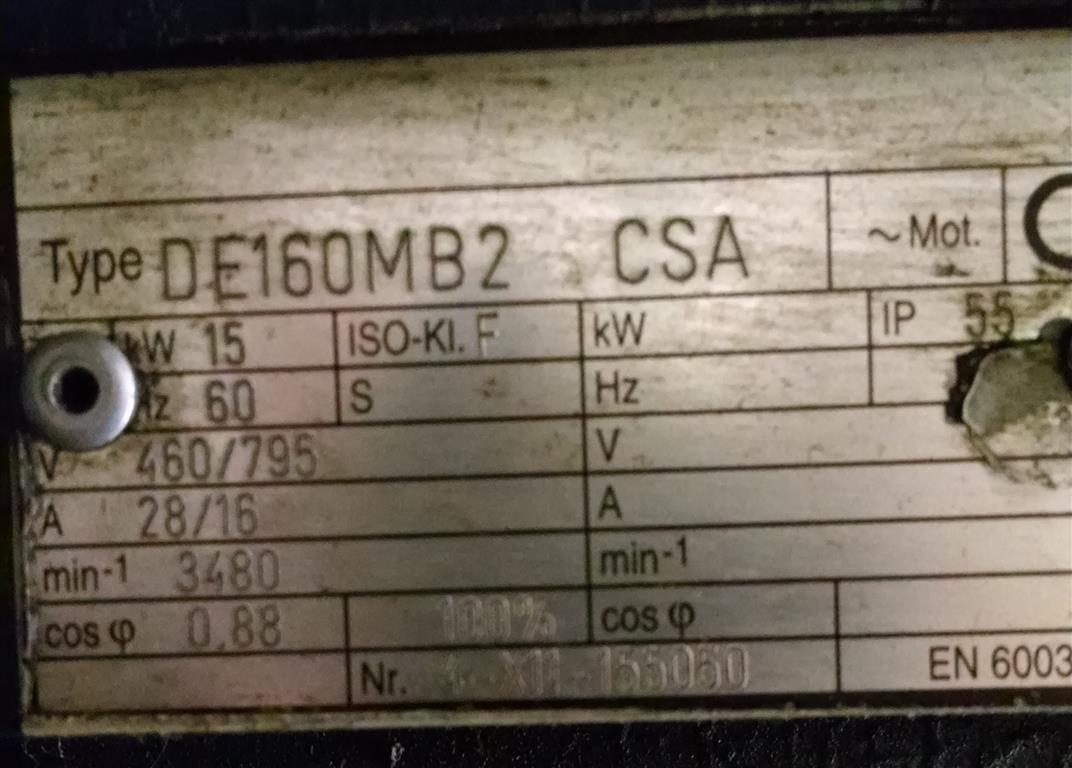

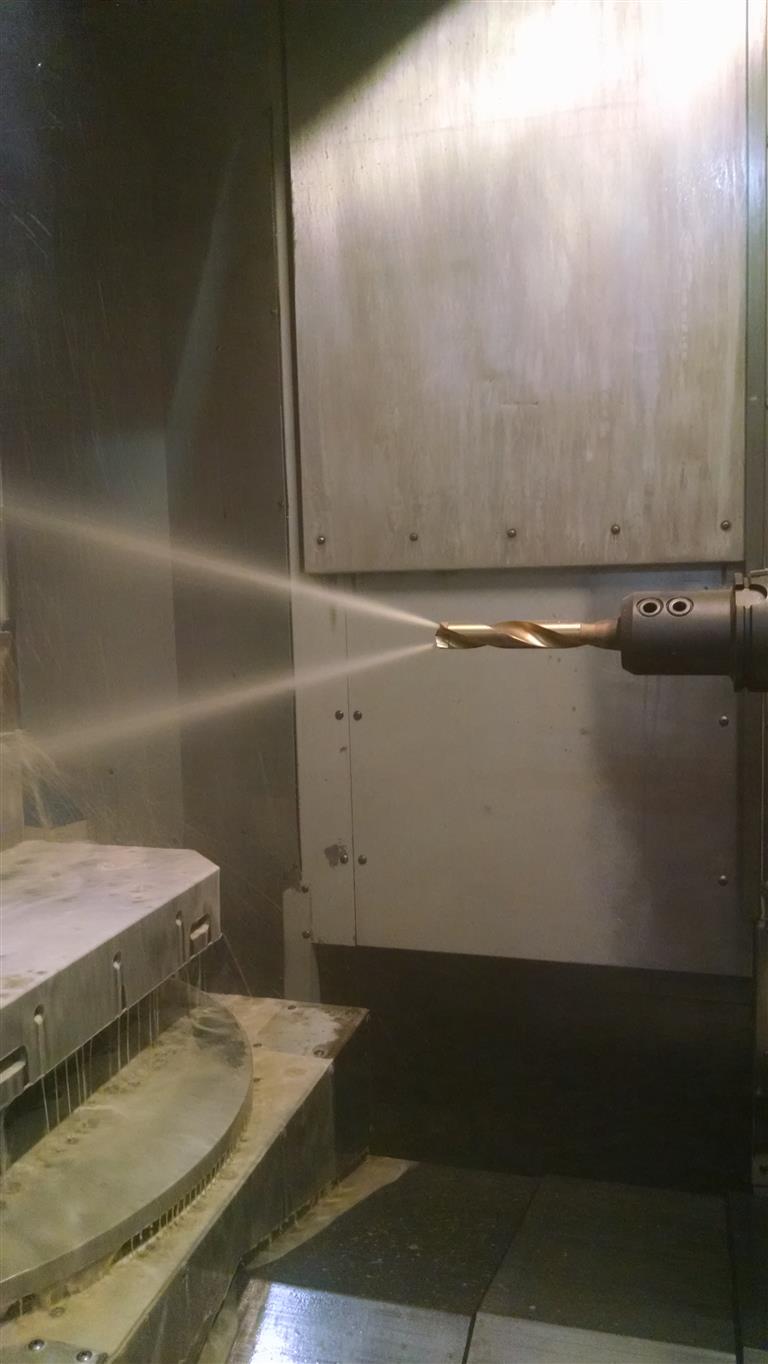

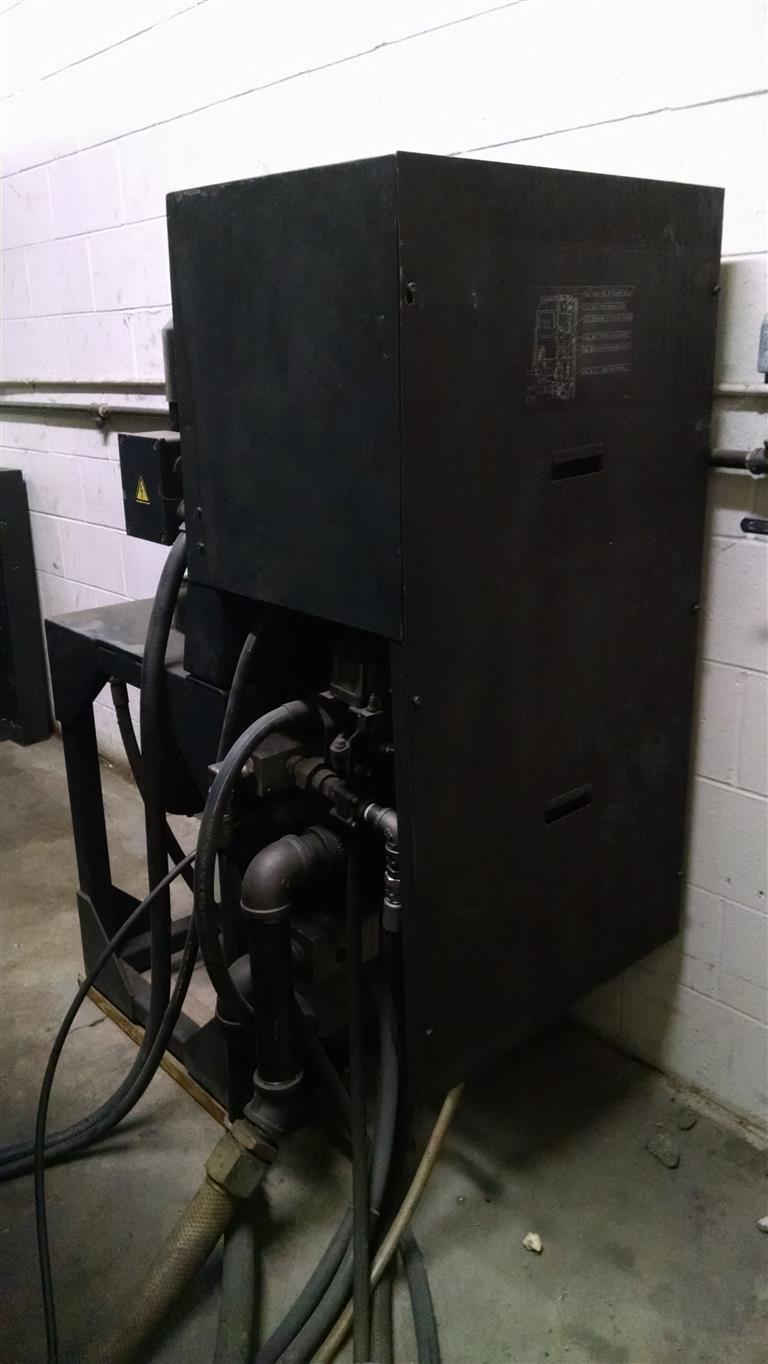

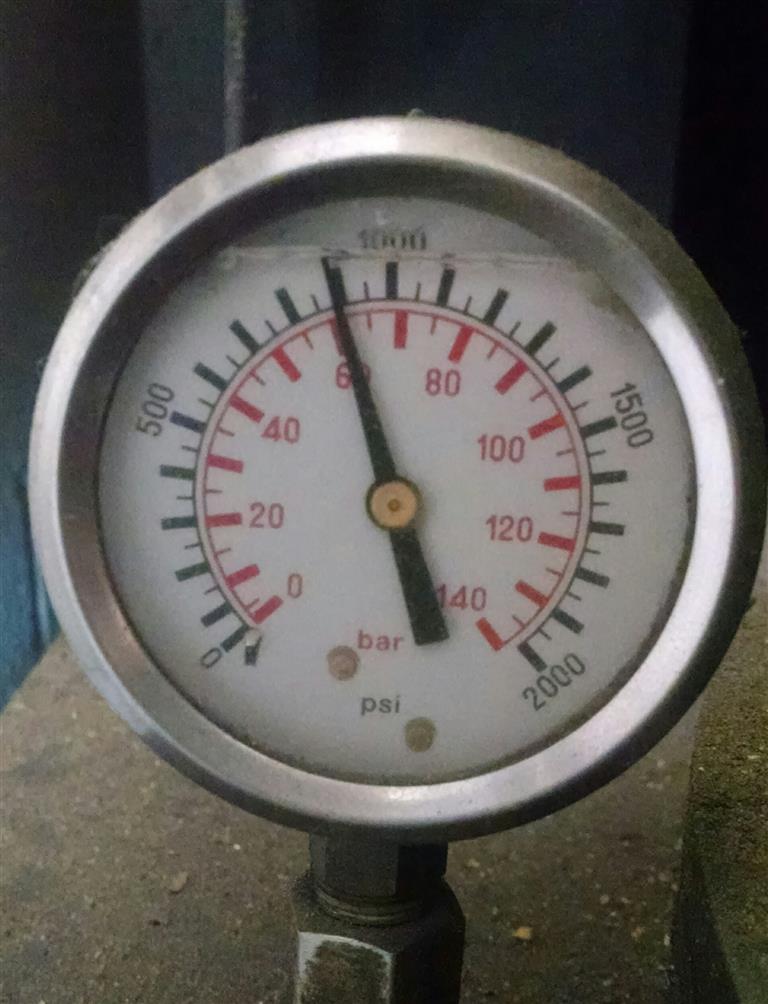

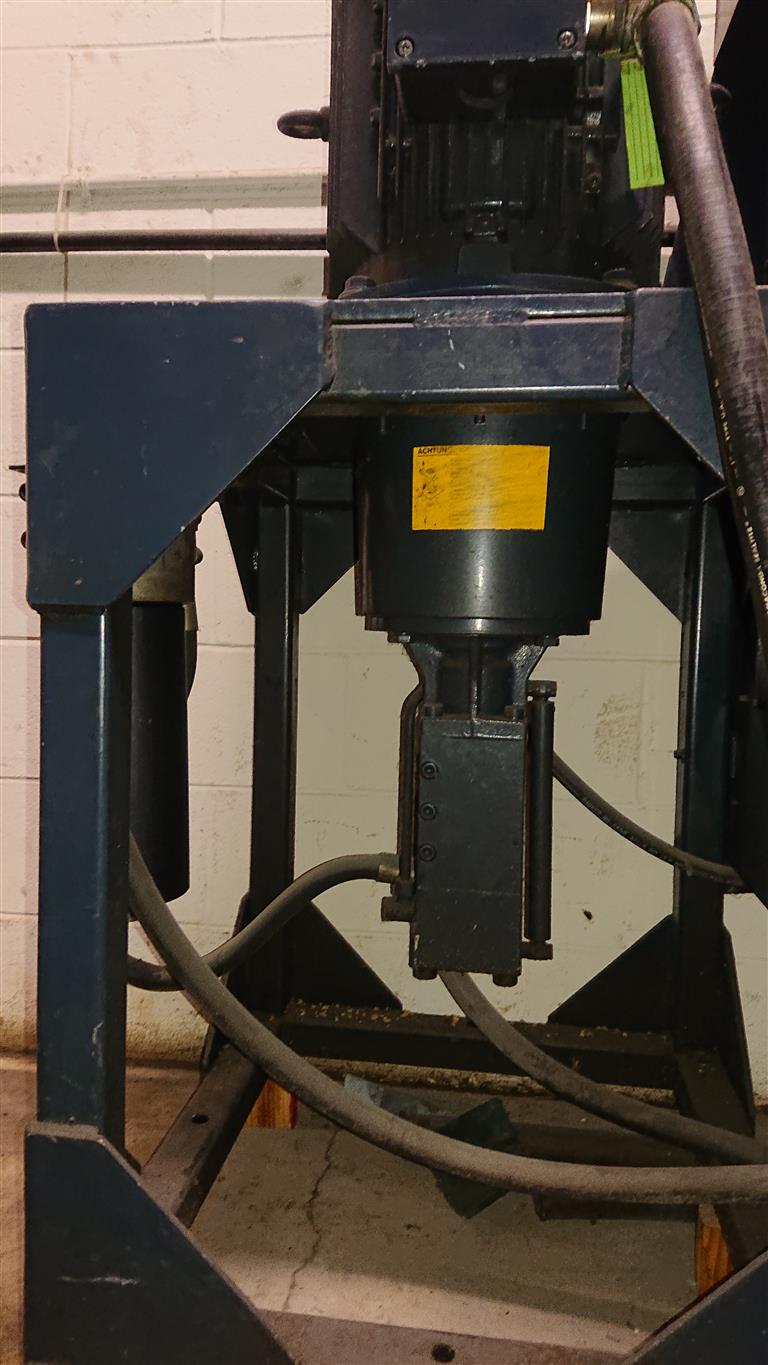

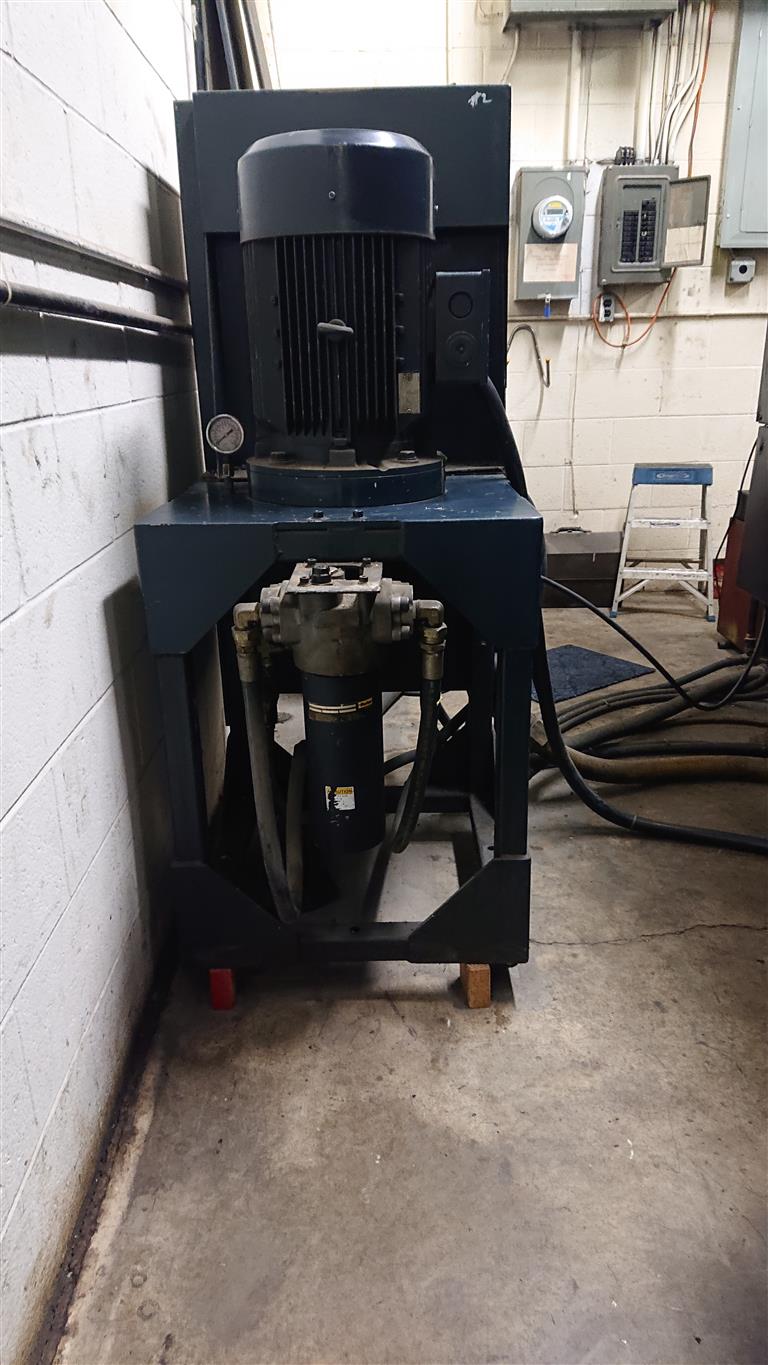

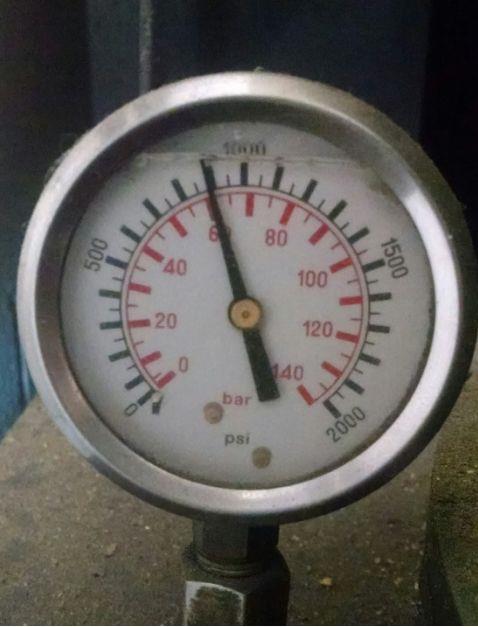

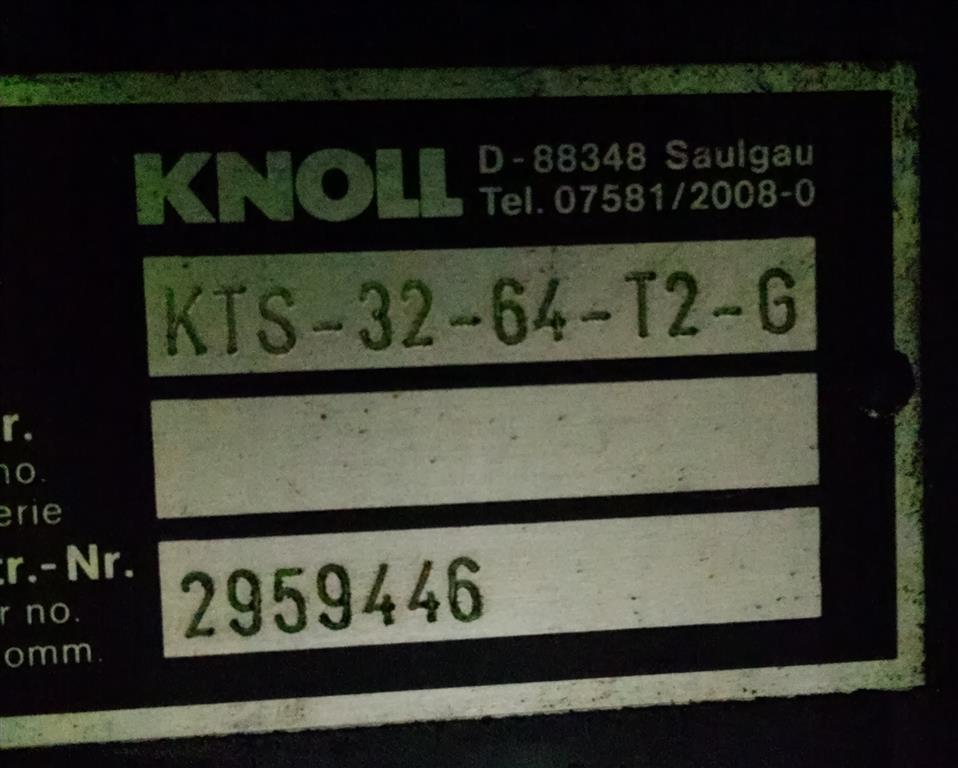

  • Coolant Thru Spindle (1,475 PSI Capable / 20 Hp Motor Knoll Triple Screw Pump)
  • Coolant System: 225 Gal. Tank, Chip Conveyor, 100, 50 Micron Filters, 7.5 Hp. Main
  • pump, secondary pump for CTS
  • Assorted Tooling can be purchased seperately for $30,000

Comments:

  • Excellent Condition
  • Under power in Michigan plant for inspection
  • '
