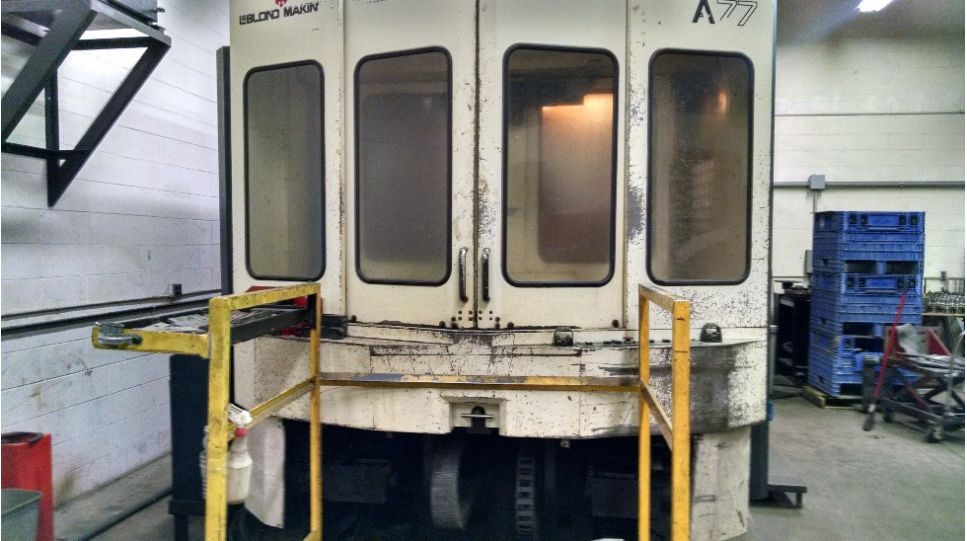

1996 MAKINO A77 HORIZONTAL MACHINING CENTER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


A77
M0130
Machining Centers Vertical Horizontal CNC
Horizontal Machining Centers
used
38000 (LB)
1996
$0.00

Description

Reference #:7083
Machine Type:
Year:1996
Manufacturer:Makino
Model:A77
Control:Professional 3
Condition:Excellent
Under Power:Yes
Code:M0130

Pallet:

  • Pallet Size: 24.8" x 24.8"
  • Pallet Indexing: .001 degree
  • Number of Pallets: 2
  • Maximum Load On Pallet: 2000 Lbs

Travels:

  • X-Axis Travel: 31.5"
  • Y-Axis Travel: 29.5"
  • Z-Axis Travel: 30.3"
  • Rapid Traverse Rate: 1181 IPM X,Y,Z

Spindle:

  • Spindle Speeds: 10,000 RPM
  • Spindle Taper: HSK 100
  • Main Motor: 40 HP

Tool Changer:

  • Tool Changer Positions: 40 ATC

Weight:

  • Machine Weight: 38,000 LBS.

Equipped With:

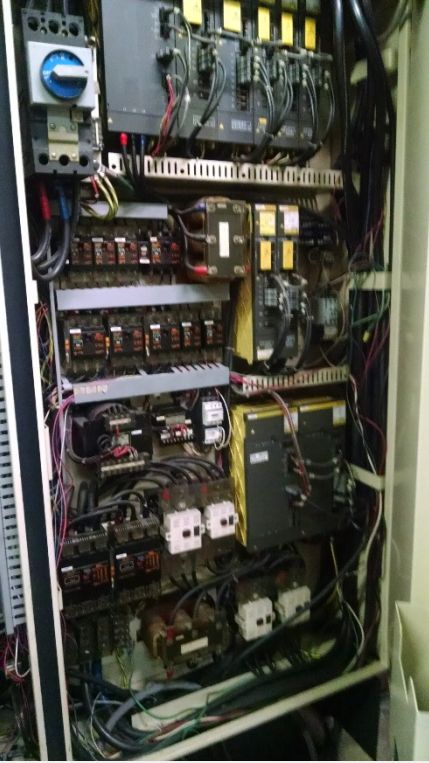

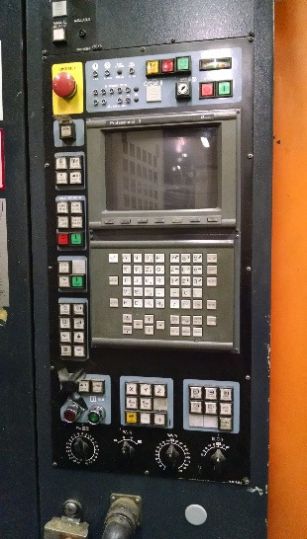

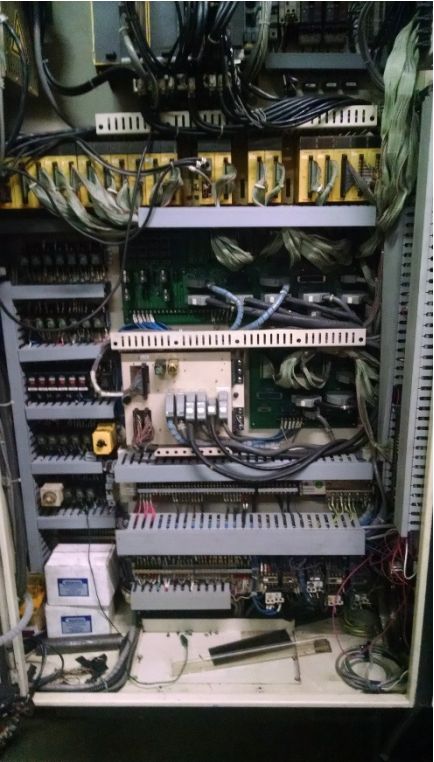

  • Professional 3 (Fanuc 16MB) Control
  • (2) w/ tapped holes, (1) w/ t slots (master)

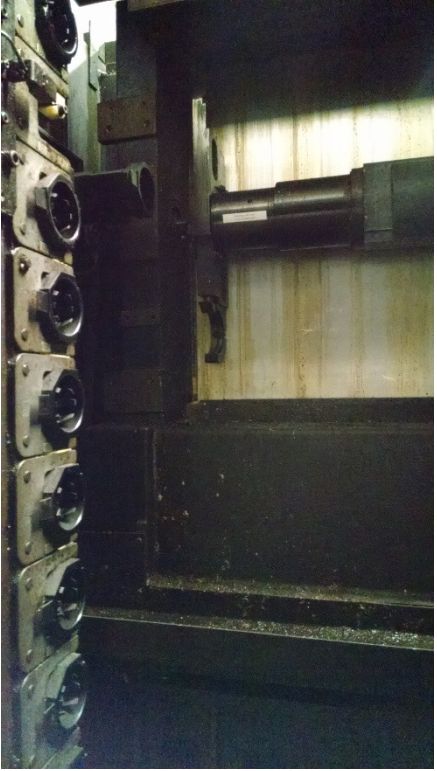

  • 40 Position ATC, Random or Designated Pot, w/ Tool Breakage Detect

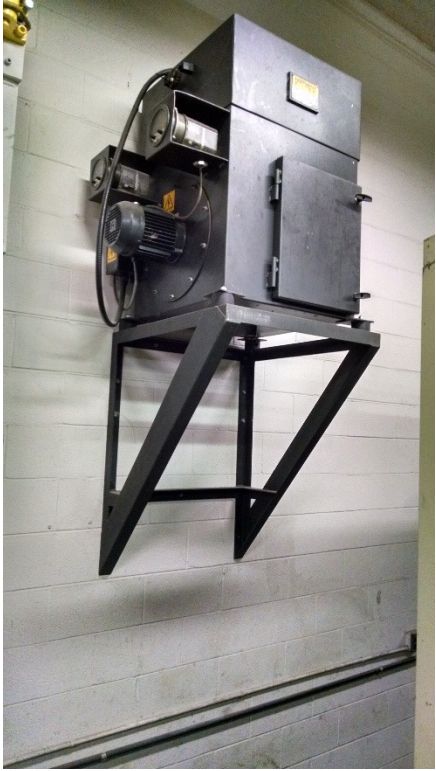

  • Smog Hog with Air Filter

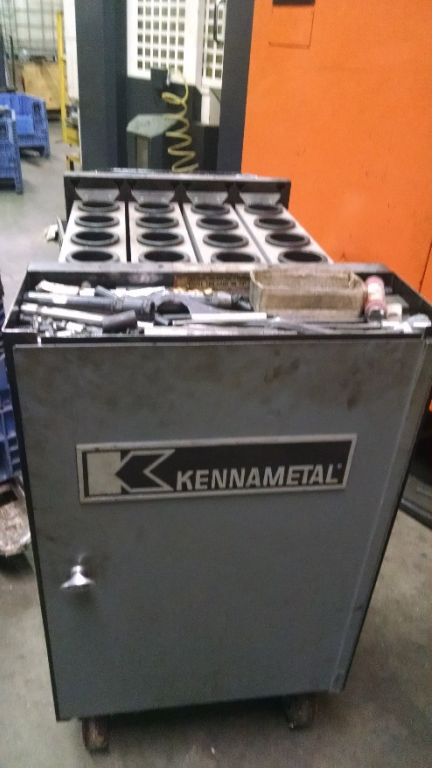

  • Approximately 180 HSK 100 Tool Holders
  • All axes with Heidenhain Scales
  • Dual Speed Double Wound Direct Drive Spindle Motor (40 HP)
  • Full 4th Axis Pallet Rotation
  • Pallet system with Auto Pneumatic Doors and Part Clamping Controls

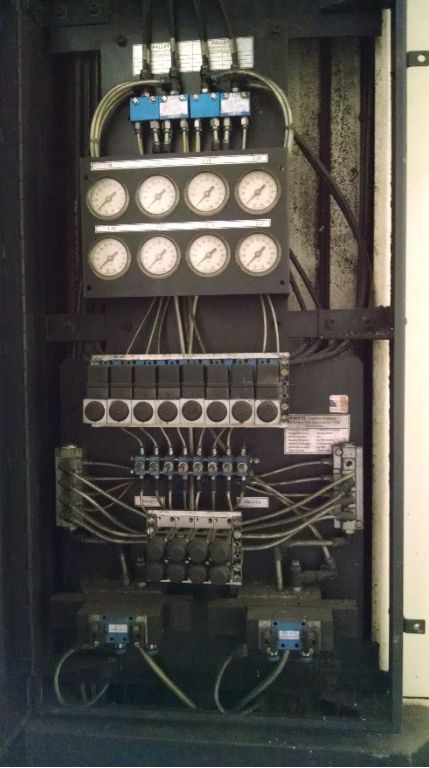

  • Pallet / Fixture: Hydraulic and Pneumatic Clamping Capable

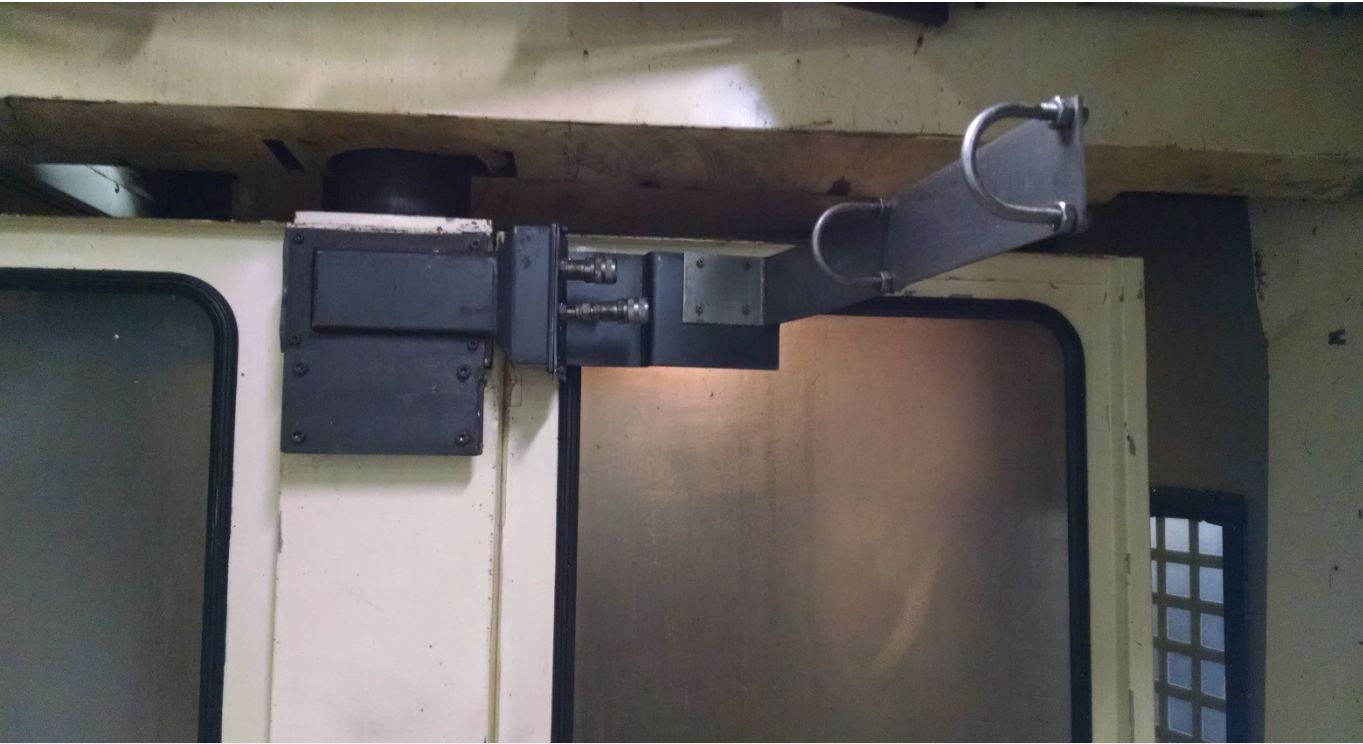

  • (Rotary Couplings above Pallet Changer)

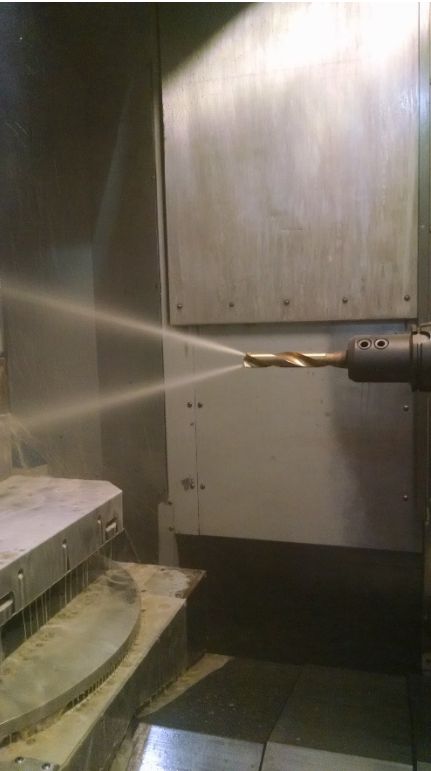

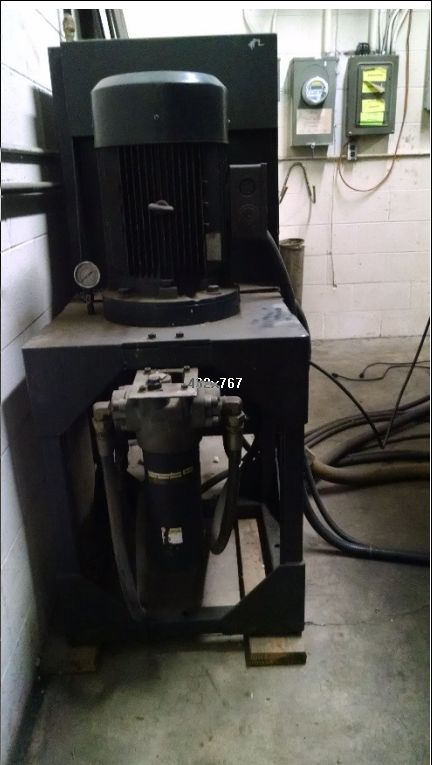

  • Coolant Thru Spindle (1,475 PSI Capable / 20 Hp Motor Knoll Triple Screw Pump)

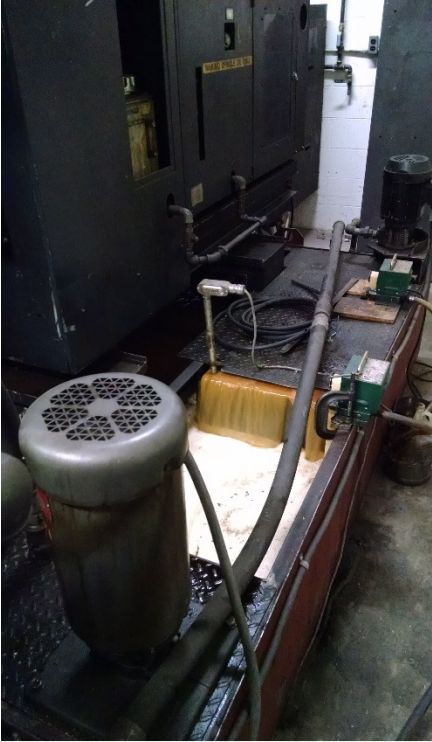

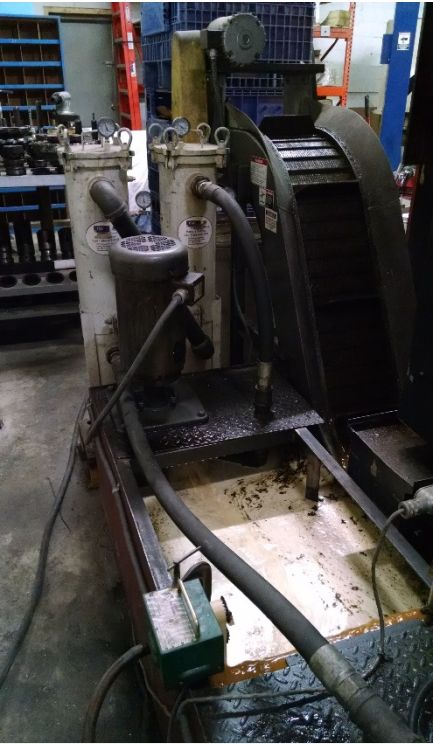

  • Coolant System: 225 Gal. Tank, Chip Conveyor, 100, 50 Micron Filters, 7.5 Hp. Main
  • pump, secondary pump for CTS
  • Assorted Tooling

Comments:

  • Excellent Condition
  • Under power in Michigan plant for inspection
