1996 HYUNDAI HIT-18S, MACHINE # 7480

Add to Your File

Brand: 1996 HYUNDAI HIT-18S, MACHINE # 7480

Model: HiT-18S

Serial No. : L2150

Category: Lathes and Turning Centers CNC

Sub Category: Universal

Condition: used

Weight: (KG)

Year Built: 1996

Status:

Price: $0.00

Description

Capacity:

Chuck Size: 10\"
Swing Over Bed Ways: 17.32\"
Max. Turning Diameter: 10\"
Distance Between Centers: 25\"

Spindle:

Speeds: 36 - 3,600 RPM
Bore: 3.15\"
Bar Capacity: 2.75\"
Nose: JIS A2-8
Main Motor: 20 / 14

Turret:

Number of Positions: 8
X-Axis Travel: 7.1\"
Z-Axis Travel: 20\"

Tailstock:

Stroke of Body: 19\"
Quil Diameter: 3.15\"

Rapids:

Rapid Traverse (X & Z ): 1,181 IPM

Dimensions:

Floor Space (L x W x H): Upon Request
Weight (approx.): 10,000 LBS

Comments:

Currently under power and can be inspected on site.
Used in production

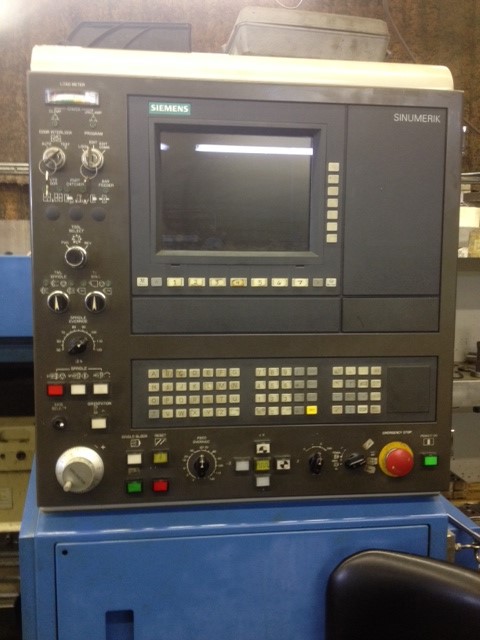

Monitor on lathe is out and we have replaced with an external monitor that
will be provided with sale.
