1996 AMADA VIPROS 368 KING CNC TURRET PUNCH

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images


Amada Vipros 368 King
36820017
Punches
PUNCHES, TURRET, NC and CNC
new
(LB)
1996
$0.00

Description

Specifications

Manufacturer Amada

Model Amada Vipros 368 King

Year 1996

Condition Used

Serial Number 36820017

Stock Number UM-10795-142

Maximum Sheet Size:60 in (Y) x 157.50 in (X) with one repositioning cycle

Maximum Axis Travel:60 in (Y) x 78.74 in (X)

Max. Linear Table Speed:3150 in per min.

Punching Accuracy:+/-0.004 in Hole to Hole

Maximum Sheet Thickness:0.125 in

Maximum Material Weight:132 lb.

Repeatability:+/-0.001 in

Press Capacity:30 Tons

Press Stroke:1.575 in

Maximum Hole Diameter:4.5 in

Tool Type: Amada Thick Turret

Rotation Speed:30 RPM

Turret Capacity:58 Stations (4 auto-index)

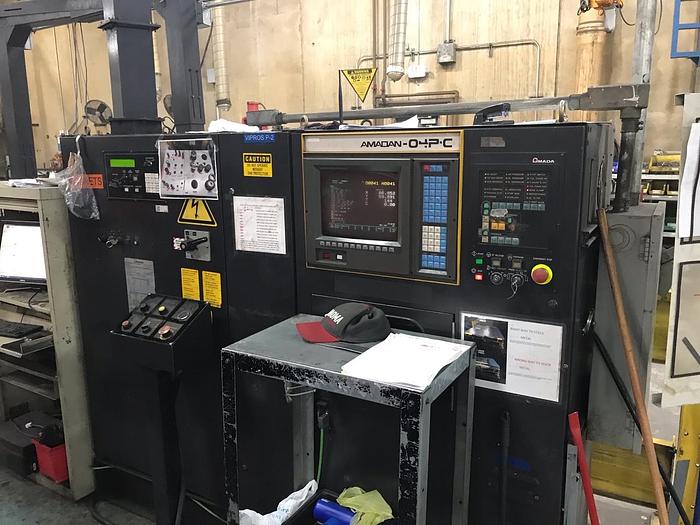

Control: Fanuc -O4P-C Control

Function:X, Y, T & CInput Method:MDI,

Floppy Disk Drive,

RS-232

Minimum Command Unit:0.001 in (X, Y)

Minimum Travel Unit:0.001 in (X, Y)

Operating Modes:Automatic, MDI & Manual Display

Modes:Program Contents, Position Information, Program Check, Parameters, Tool Hit Counter, Self Diagnostics Interlock Displays:Oil Temperature, Door Open
