1995 MAZAK SQT-30MS,LATHES, CNC, COMBINATION, 3-AXIS OR MORE # 8331
SQT-30MS
Lathes and Turning Centers CNC
Slant Bed Turning center
used
15620 (LB)
1995
$0.00

Description

Reference #: 8331
Machine Type:
Year: 1995
Manufacturer: Mazak+
Model: SQT-30MS
Control: Mazatrol T-PLUS
Condition: Used
Code: L2155
Capacity:
Swing: 22.4"
Centers: 36.4"
Max. Turning Diameter: 16.25"
Max. Turning Length: 40.04"
Distance Between Centers: 40.4"
Travels:
X-Axis Travels: 9.6"
Z-Axis Travel: 40.75"
W-Axis Travel (Sub-Spindle): 42"
Main Spindle:
Nose: A2-8
Max. Bar Capacity: 3.0"
Bore: 3.46"
Speed: 35 - 3500 RPM
Indexing (C-Axis): 360 (.001) Degrees
Motor: 35 HP
Sub-Spindle:
Nose: A2-6
Bore: 2.99"
Speed: 35 - 3500 RPM
Indexing (Positioning): 5 (72) Degrees
Motor: 10 HP
General:
Electrical: 45 kVA/220/3Ph
Overall Dimensions: 160" x 79" x 85" H
Approximate Weight: 15,620 Lbs
Equipped With:

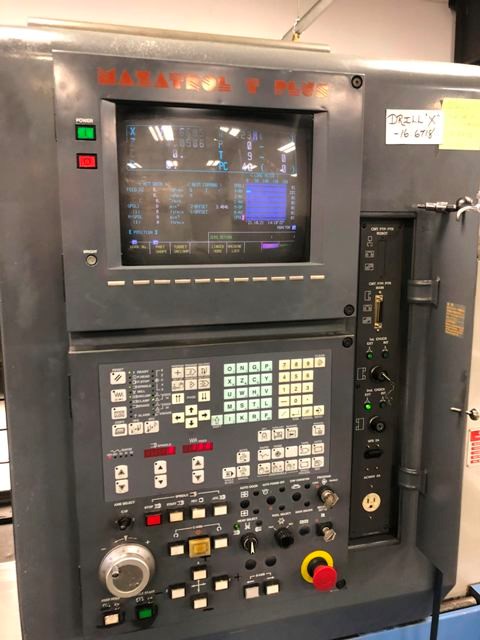

Mazatrol T-Plus Control
C-Axis Live Tool Capacity
10" 3-Jaw Hydraulic Chuck Main Spindle
8" 3-Jaw Hydraulic Chuck Sub Spindle
35 HP Gearbox Spindle

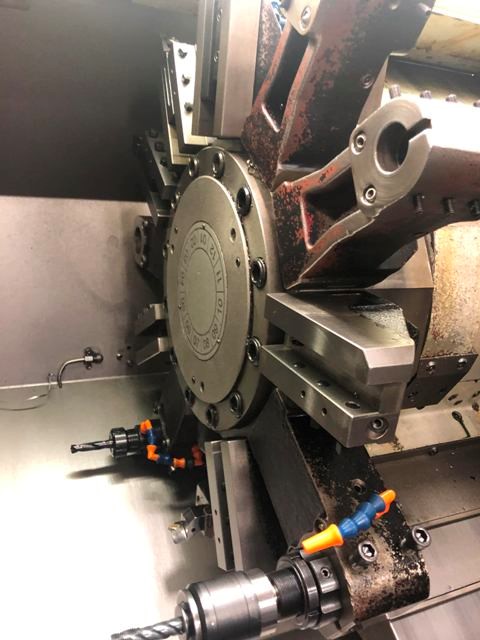

12 Station Live Tool Turret
Rigid Tapping
Coolant System
Foot Switch
Chip Conveyor

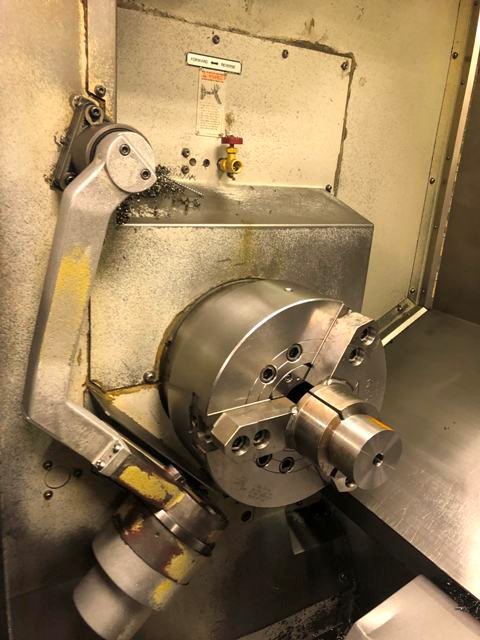

Tool Preset Arm with Working Sensors

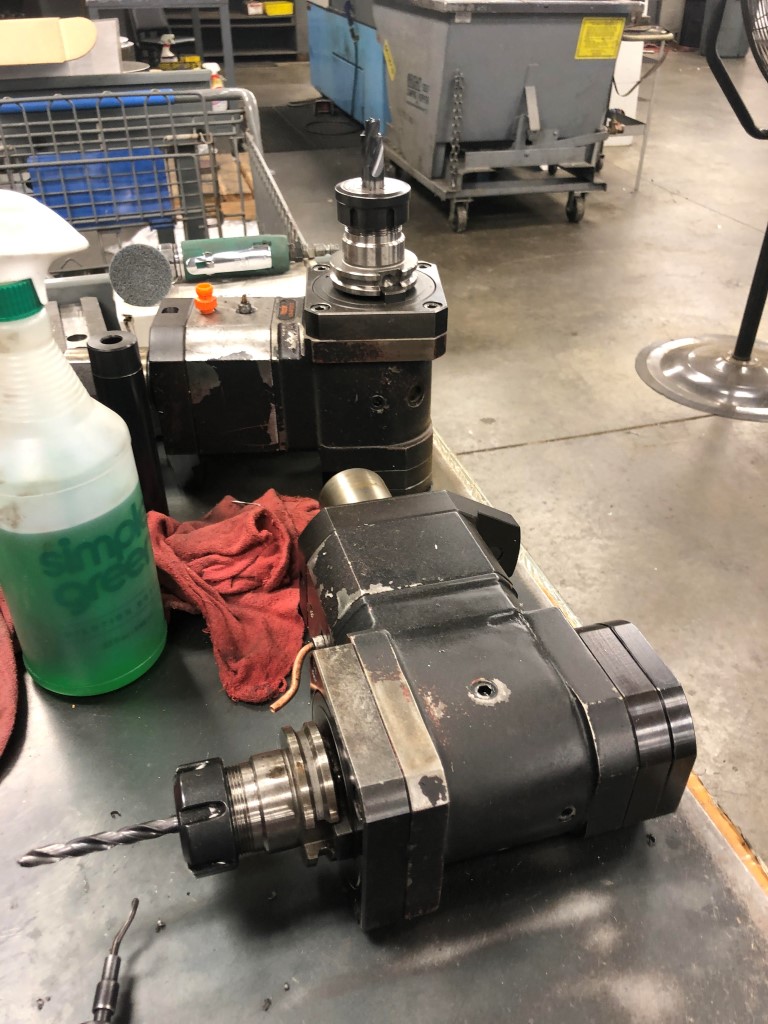

(3) Live Tool Holders
