This machine is in good running and operating condition. Previously used in an auto mechanic shop.
The VMC 4020 offers excellent performance for jobs up to 40" x 20" in size and occupies a floor space of 116 inches wide by 87 inches deep. The 4020 is equipped with a 15 hp motor that generates 90 ft-lb of torque at the spindle.
FEATURES
CONDITION : Like NEW & perfect condition
SPECIFICATIONS
Table Size
48" x 20"
Floor to Table Surface
32"
T-Slots (No. x Width)
5 x 0.687" x 3.75"
Cutting Feed Rate (X/Y/Z)
0.01" to 400" (600" at 150%)
Rapid Travel Rate (X/Y/Z)
900 (X/Y) 700 (Z)
Maximum Weight on Table
3,641 lbs
Axis Drive Motor (X/Y/Z)
3,800 Lbs. thrust
Ball Screw Size
40mm dia (X/Y/Z)
Longitudinal Travel (X-Axis)
40"
Cross Travel
20"
Vertical Travel
20"
Spindle Nose to Table
4" - 24"
Spindle Center to Column
20"
Main Motor
15/20 HP, 11kW
Spindle Speeds
75 - 10,000 rpm
Spindle Taper
CT-40
Number of Tools
21 ATC
Max. Tool Diameter
3"
Max. Tool Length
15"
Max. Tool Weight
15 lbs
Machine Floor Space Dimensions
116" x 87"
Machine Height
95" (114" Max.)
Air Pressure Requiered
80 psi, 15 scfm

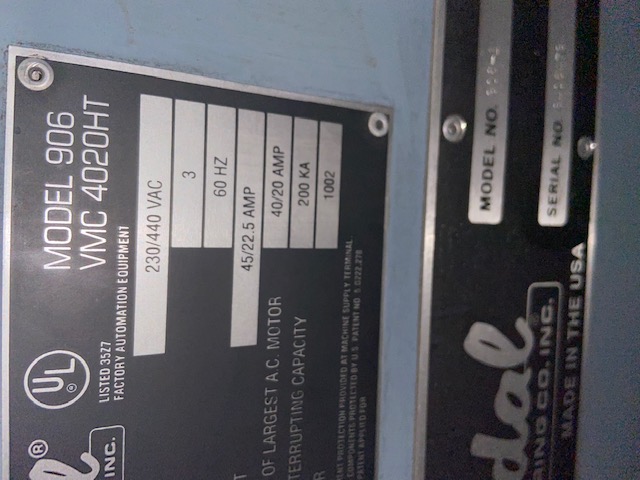

Power
45 Amps, 230/440 VAC, 3-Phase
*Specifications subject to verification
Price 15,500.00
