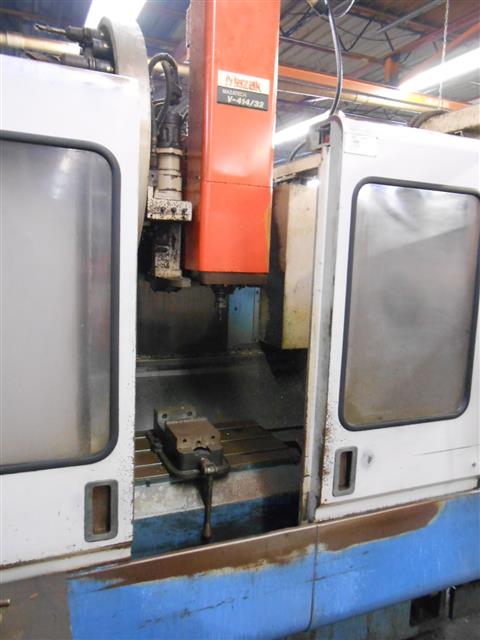

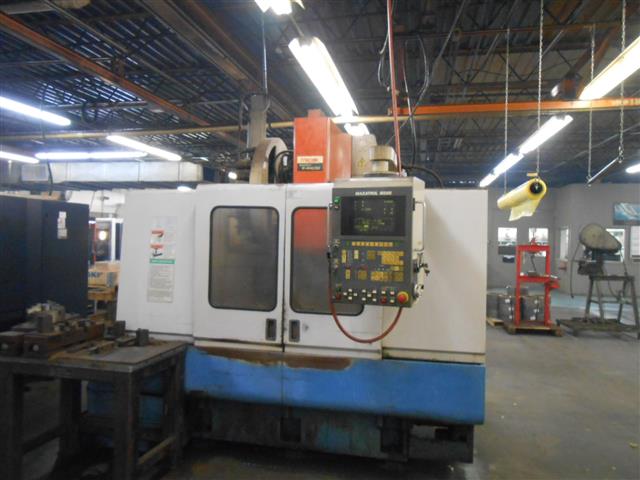

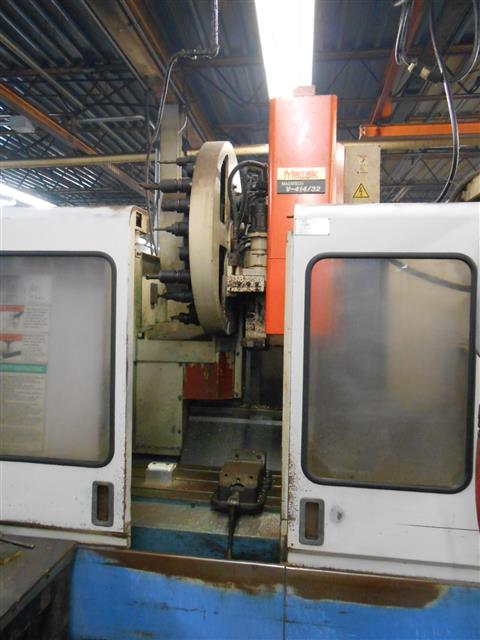

1994 MAZAK V414 MACHINING CENTER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


V414
M0185
Machining Centers Vertical Horizontal CNC
Vertical Machining Centers
used
7700 (LB)
1994
$0.00

Description

Reference #:6682
Machine Type:
Year:1994
Manufacturer:Mazak
Model:V414

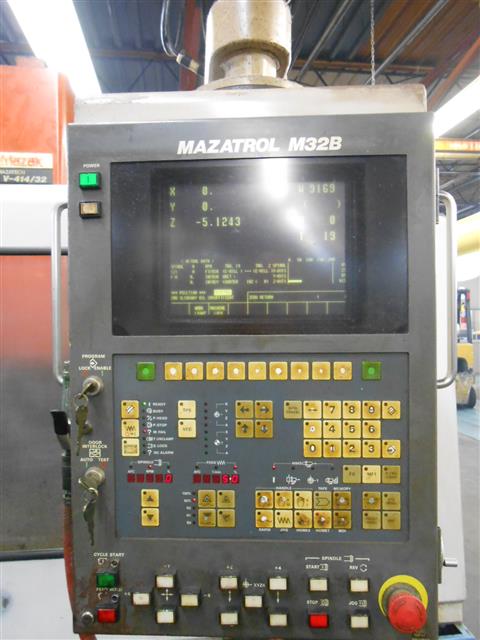

Control:Mazatrol M32B
Condition:Used
Under Power:Yes
Code:M0185

Table

  • Table Size: 35.43" x 16.14"
  • Maximum Pallet Load: 1,100 lbs.

Travels:

  • X-Axis Travel: 22.05"
  • Y-Axis Travel: 16.14"
  • Z-Axis Travel: 18.11"
  • Spindle Nose to Table Top: 5.91" ~ 24.02"

Speeds/Feeds:

  • Rapid Traverse X, Y / Z: 945 / 709 IPM

Spindle:

  • Spindle Speeds (RPM): 50 ~ 7000 RPM
  • Spindle Taper: CT 40 Taper
  • Main Motor (HP): 10 HP

Tool Changer:

  • Tool Changer Positions: 24 ATC

General:

  • Floor Space: 123.90" X 76.38"
  • Machine Weight: 11,571 Lbs

Description:

  • Work Tank Size (oversize): 41" x 29.5" x 19"
  • Table Size: 29.5" x 21.6"
  • Table Travel: 20" x 16"
  • Ram Travel: 13.77"
  • Worktable to Platen: 9.84" - 23.6"
  • Max Workpiece Weight: 2,200 Lbs
  • Max Electrode Weight: 220 Lbs

General:

  • Machine Weight: 7,700 Lbs
  • Min Floorspace Required: 84" x 92" x 99"
  • Metal Removal Positive Polarity: 4.5 grams per minute

Equipped With:

  • Mazatrol M32B Control

Comments:

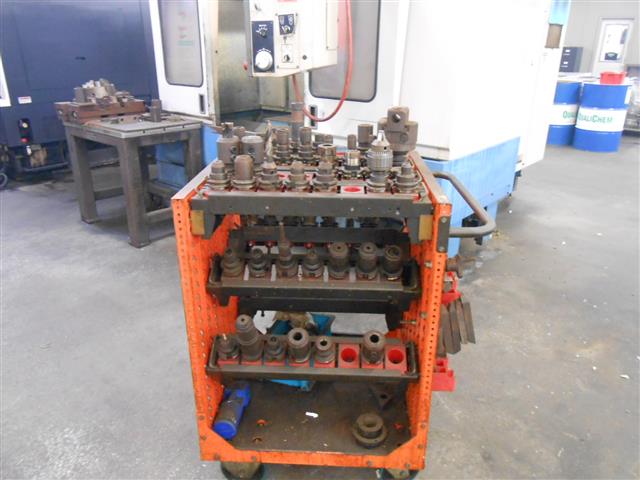

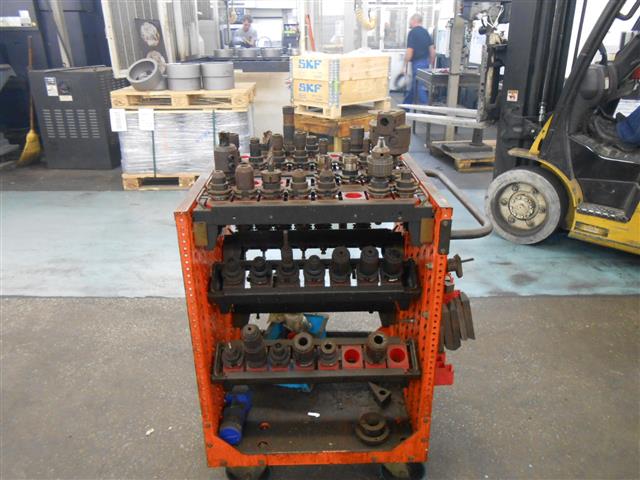

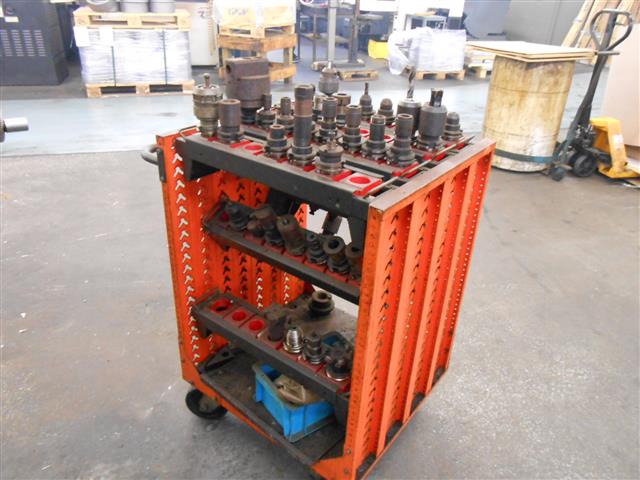

  • The tooling and cart are not including in the price I listed but we would sell the cart
  • tooling and Renishaw probe also
  • (NEEDS ENCODER NOT RUNNING) WILL SELL WITH TOOL CART AND
  • TOOLING WHICH INCLUDES RENISHAW PROBE)

Equipped With:

  • C-11E Control
  • 3R-27.2EX Maxi Dove Tail Holder
  • KX-111 Extended Work Tank
  • Halon Fire Extiguisher
  • FP100 Power Supply (120 Peak Amps)
  • Transformer
  • Includes all manuals

Comments:

  • Manufactured in 1998
  • Purchased and installed new in 2002
  • Only used for one year
