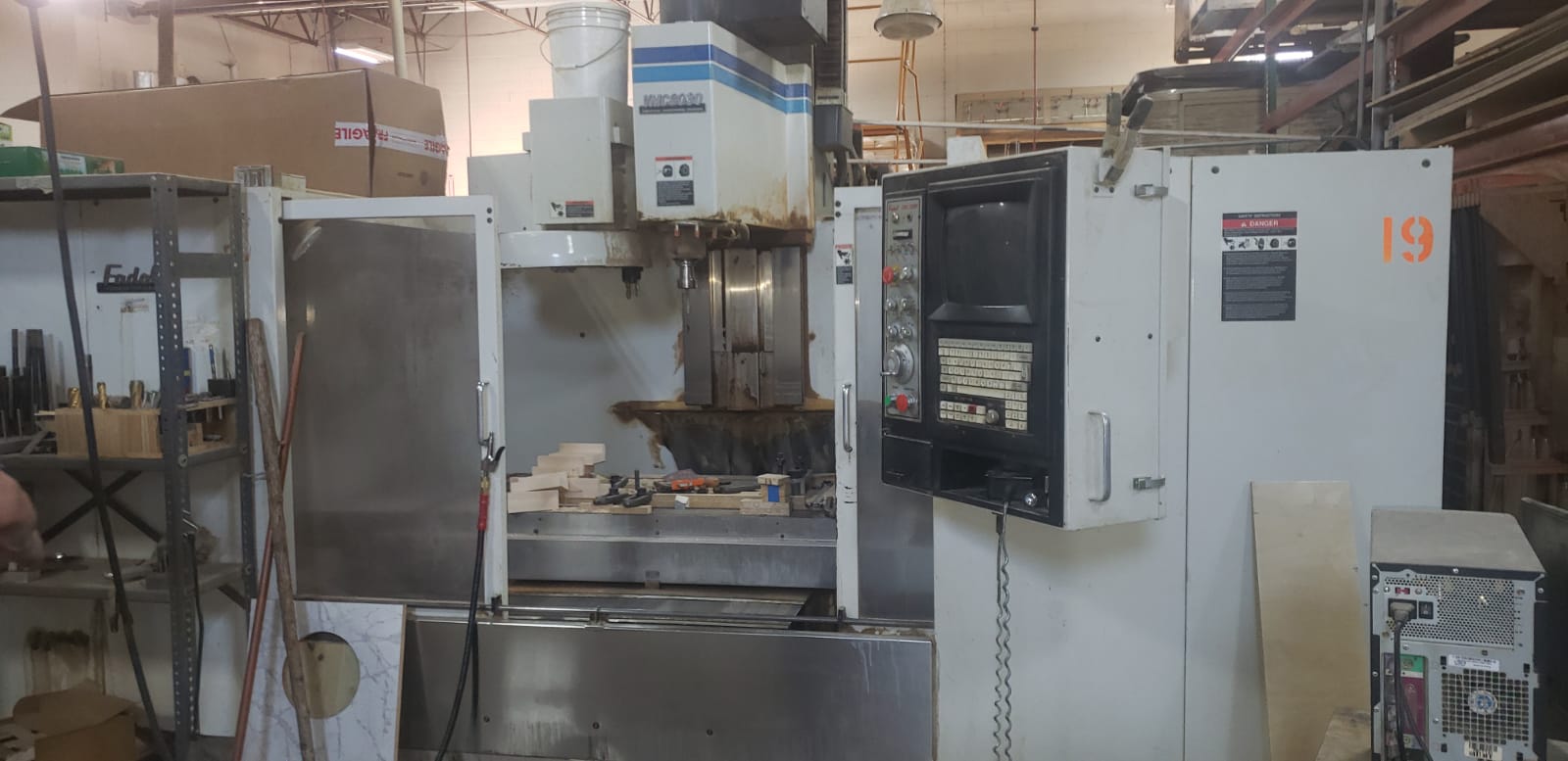

1994 FADAL VMC-6030HT MACHINING CENTER MACHINE # 8131

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images

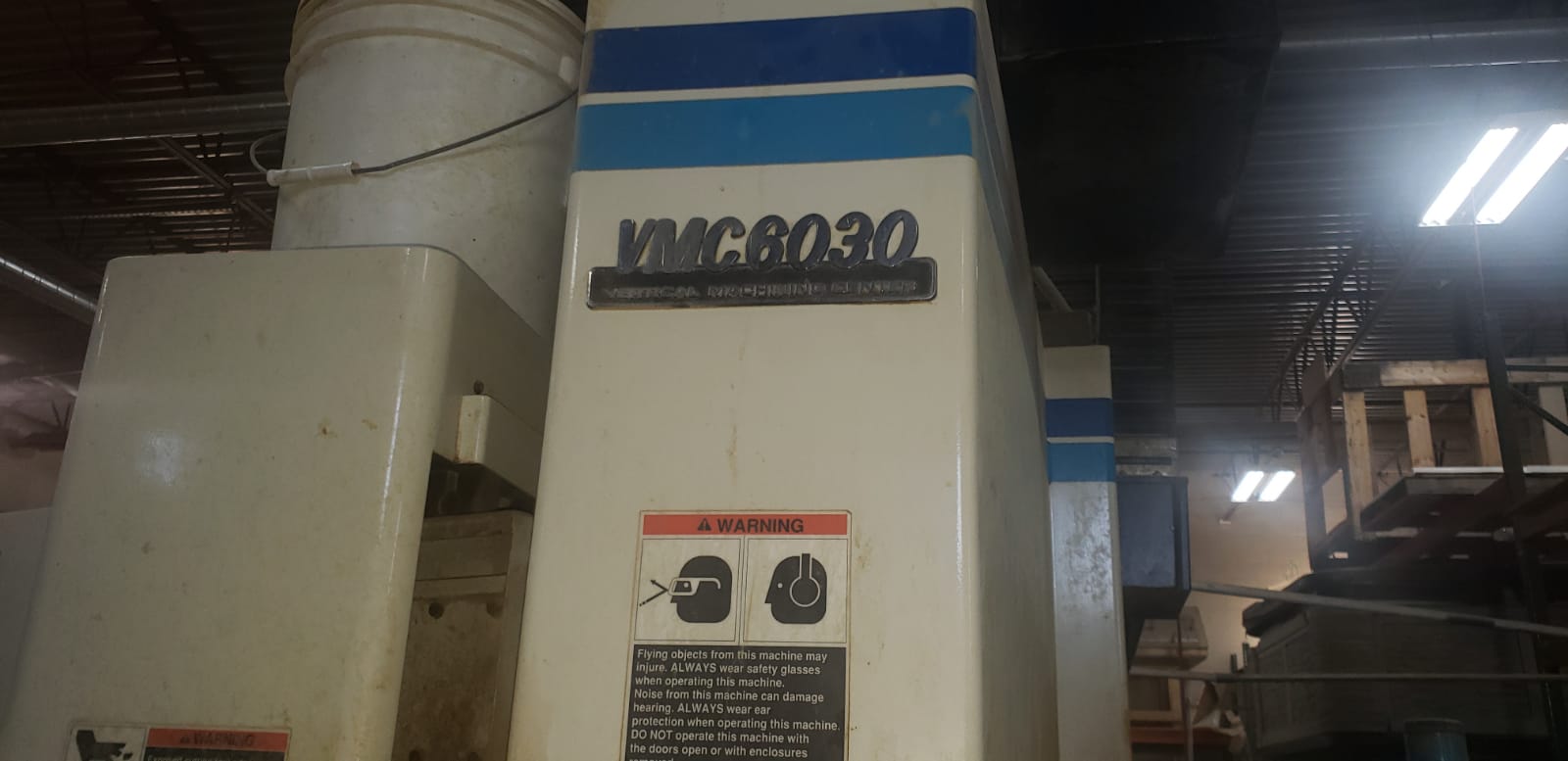

VMC-6030HT
Machining Centers Vertical Horizontal CNC
Vertical Machining Centers
used
17000 (LB)
1994
$0.00

Description

Reference #:8131
Machine Type:CNC Verticals
Year:1994
Manufacturer:Fadal
Model:VMC-6030HT

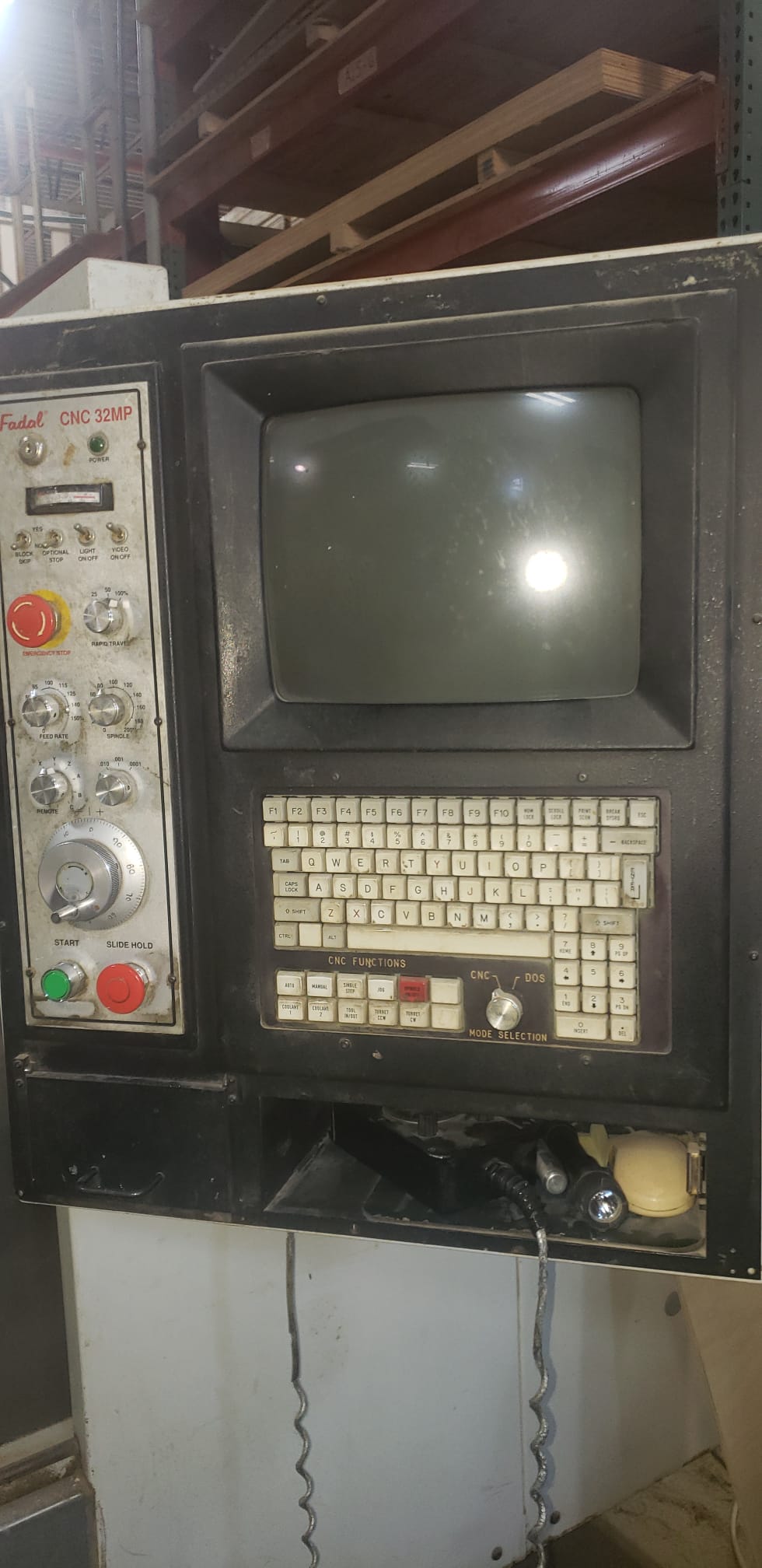

Control:Fadal 32MP CNC
Condition:Used
Under Power:No
Code:M0185

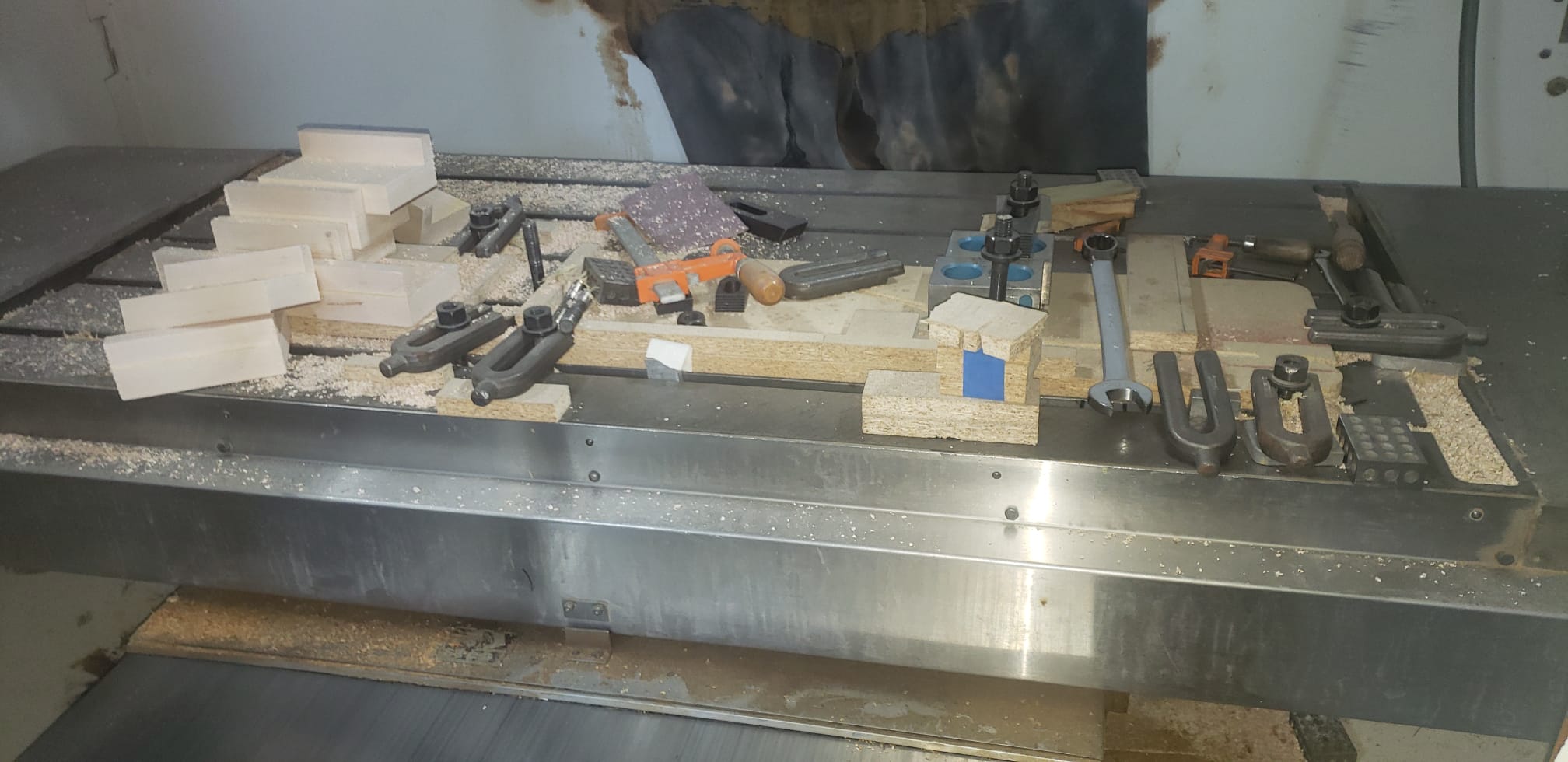

Table:

  • Table Size: 30" x 62.5"
  • Maximum Table Load: 2000 lbs.

Travels:

  • X-Axis Travel: 60"
  • Y-Axis Travel: 30"
  • Z-Axis Travel: 30"
  • Spindle Nose to Table Top: 5.5" - 35.5"

Spindle:

  • Spindle Speeds: 40 - 10000 RPM
  • Spindle Taper: 40 Taper
  • Main Motor: 22.5 HP

Tool Changer:

  • Tool Changer Positions: 21 ATC
  • Maximum Tool Length x Weight: 15" x 15 lbs.

Dimensions:

  • Floor Space: 103" x 158"
  • Height / Weight: 119" / 17,000 lbs.

Equpped With:

  • Manuals

Comments:

  • Has been cutting wood which is the soruce of the dust
  • Video available upon request
