1993 Matsuura MC-800VF

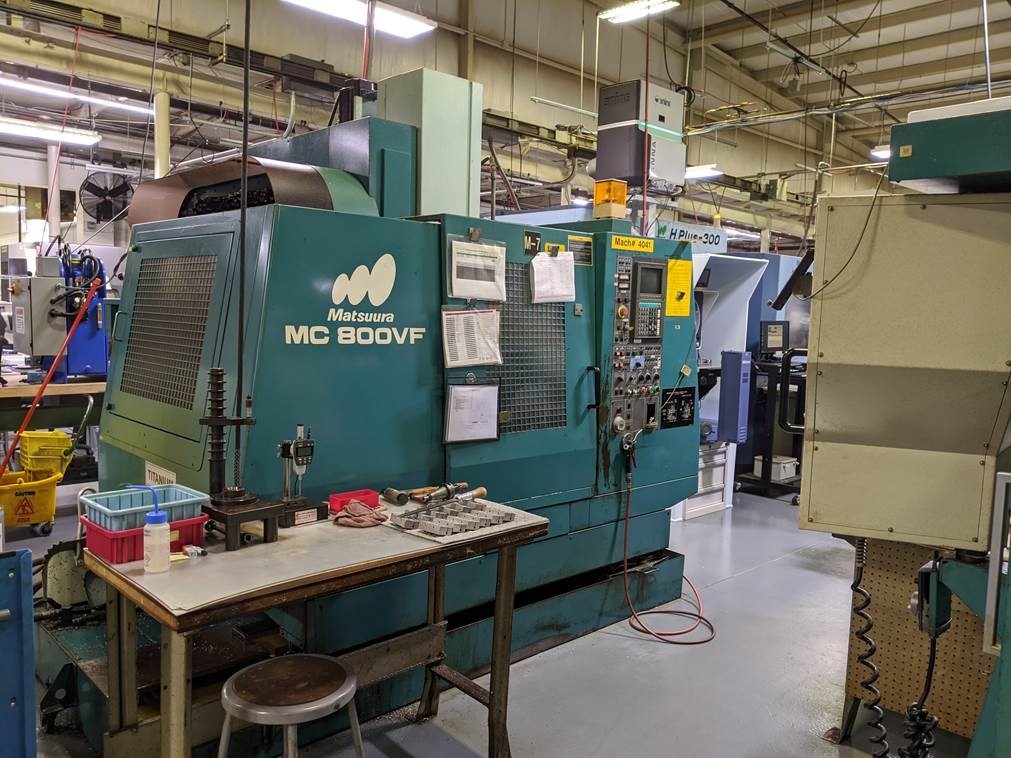

1993 MATSUURA MC-800VF

Add to Your File

Brand: 1993 MATSUURA MC-800VF

Model: MC-800VF

Serial No. : M0185

Category: Machining Centers Vertical Horizontal CNC

Sub Category: Vertical Machining Centers

Condition: used

Weight: (KG)

Year Built: 1993

Status:

Price: $0.00

Description

TABLE:

Table Length x Width: 45.27\" x 16.14\"
Max Table Load: 1102 Lbs

TRAVELS:

X-Cross/Long: 31.5\"
Y-Saddle: 17.32\"
Z-Spindle/Vert: 19.09\"
Spindle Nose To Table Min. - Max.: 5.9\" - 25\"

FEED RATES:

Rapid Rate (X, Y / Z): 945 / 710 IPM
Cutting Rate: 590 IPM

SPINDLE:

Speed Min. - Max. RPM: 8,000 RPM
Motor HP (30 Min.): 15 HP
Taper: BT 40 Taper

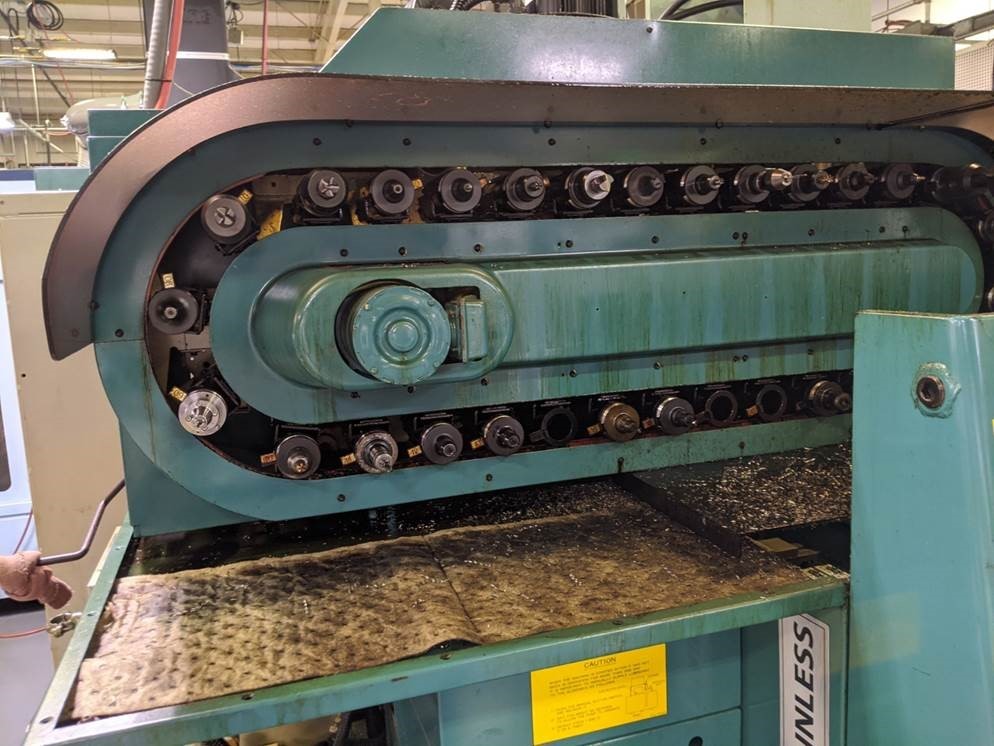

TOOL CHANGER:

Positions: 30
Tool Change Time (Tool to Tool): 2 seconds

Machine:

Floor Space: W10.0\ x D9.0\
Weight: 11,900 lbs

Comments:

Machine is in production now if someone wants to come in and see it running.
Rigging and trucking are buyer�s responsibility. This machine also has the
connections at the back with 4 extra M codes for running external
controlled Nikken & Yukiwa 5th axis indexer or Nikken & Koma 4th axis table
Indexers not included.
