1992 FARREL 192`` CNC VERTICAL BORING MILL

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


192`` CNC Vertical Boring Mill
B6150
Boring Mills
Vertical NC, CNC
used
(KG)
1992
$0.00

Description

Specifications:

  • Table Diameter: 199\"
  • Maximum Swing: 204\"
  • Maximum Height Under Tool: 80\"
  • Ram Stroke: 54\"
  • Ram Cross Section: .5 to 35 RPM
  • Table Weight Capacity: 120,000 Lbs
  • Main Motor: 100 HP

Equpped With:

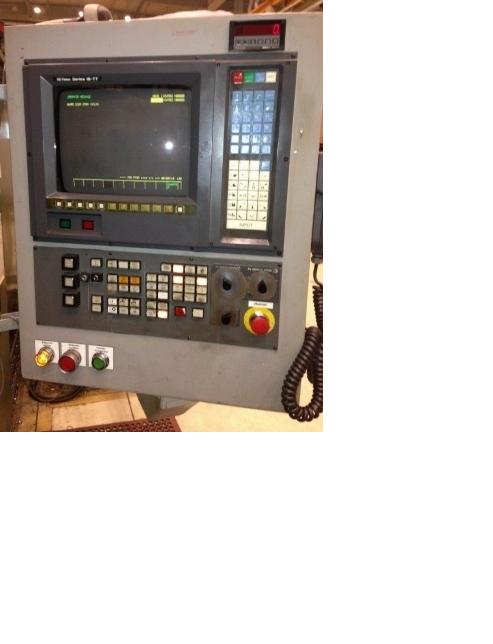

  • Fanuc 0iTD CNC Control Retrofit 2004
  • C-Axis Table with Live Milling
  • Ballscrews & Independent AC Drives
  • Bellow Type Way Covers on Cross Rail

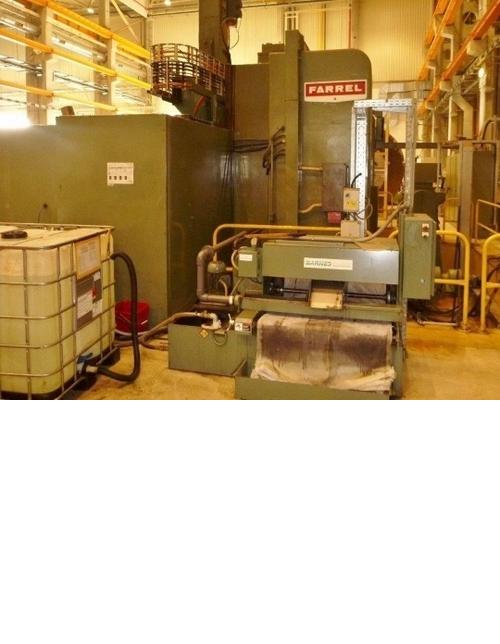

  • Barnes Filtration System
  • 100 HP Main Motor
  • Currently Floor Mounted On Leveling Pads
  • Both Rams CNC Controlled
  • Heidenhain Encoder For C Axis table (accurate for indexing)
  • Heidenhain Scales All Axis X,Z,C
  • Current Machine Height Above Floor As Currently Floor Mounted.. 18ft.
  • 4 Jaw Independent Table.. in T Slots (movable jaws)

Comments:

  • Includes loading on truck
