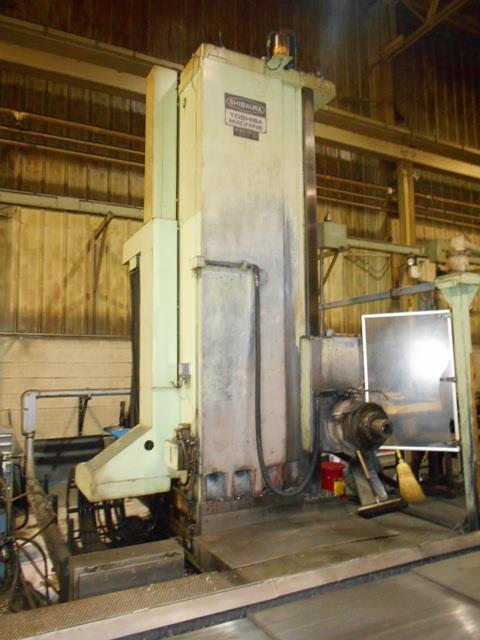

1989 TOSHIBA BP-13B-P7

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


BP-13B-P7
B5751
Boring Mills
Horizontal, Table Type NC, CNC
used
(KG)
1989
$0.00

Description

Spindle:

  • Spindle Diameter: 5.1\"
  • Spindle Speeds: 2500 RPM
  • Spindle Taper: 50 Taper

Travels:

  • X-AxisTravel: 157\"
  • Y-Axis (Vertical) Travel: 80\"

Table:

  • Table Size: 160\" x 60\"

Capacity:

  • Chuck Size: 12\"
  • Swing Over Bed Ways: 30\"
  • Swing Over Cross Slide: 14.5\"
  • Max. Turning Diameter: 17\"
  • Max. Turning Length: 34\"
  • Distance Between Centers: 39\"

Spindle:

  • Speeds: 3400 RPM
  • Bore: 3.5\"
  • Bar Capacity: 3.03\"
  • Nose: A2-6
  • Main Motor: 30 HP

Turret:

  • Number of Positions: 12
  • X-Axis Travel: 11.3\"
  • Z-Axis Travel: 34\"

Tailstock:

  • Stroke of Body: 33.5\"
  • Quill Taper: MT4

Rapids:

  • Rapid Traverse (X): 710 IPM

Dimensions:

  • Length: 40 Feet
  • Width: 20 Feet
  • Height: 15 Feet

Equippd With:

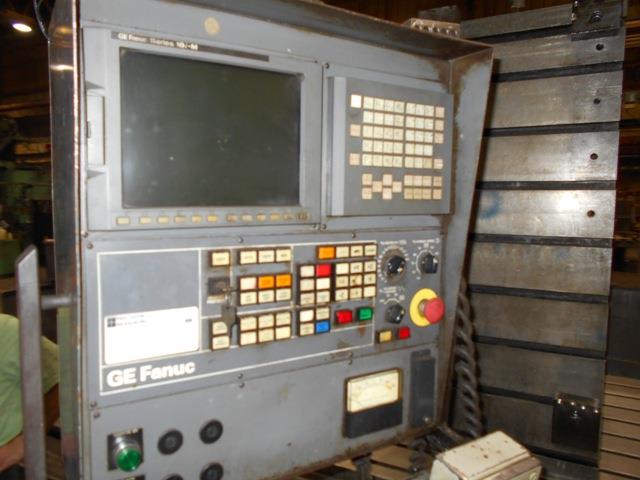

  • Fanuc 16iM
  • Power tool lock (retention knob)

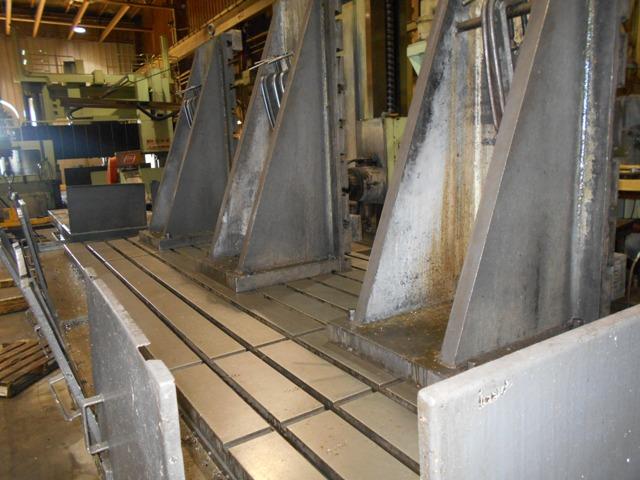

  • (2) Angle Plates

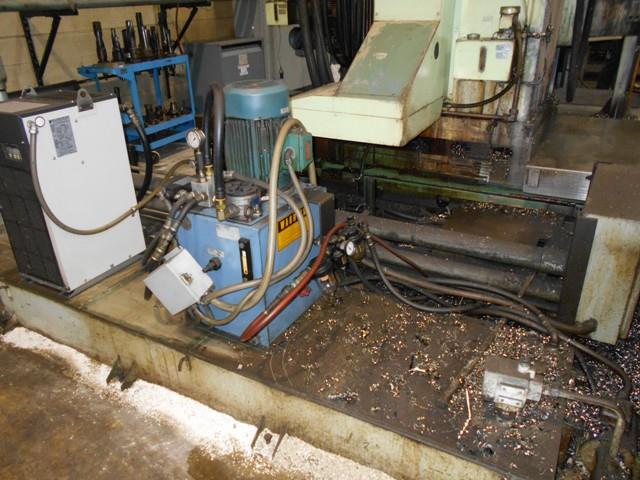

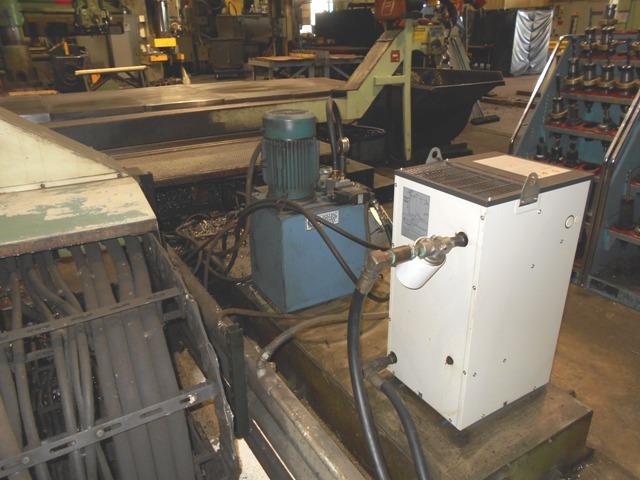

  • Chiller unit
  • Hard ways all axis

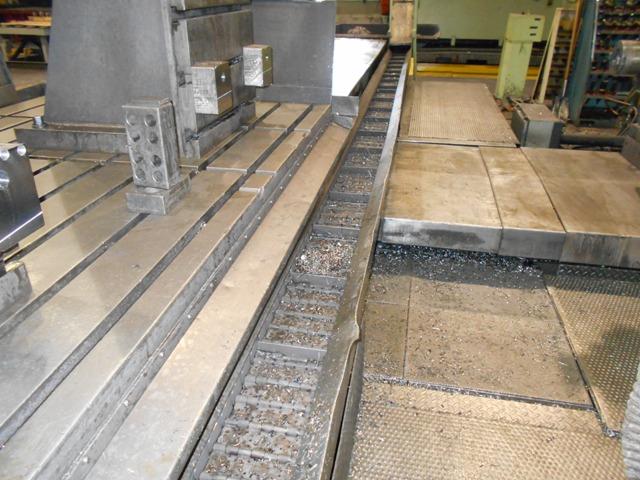

  • Full length chip conveyor

Comments:

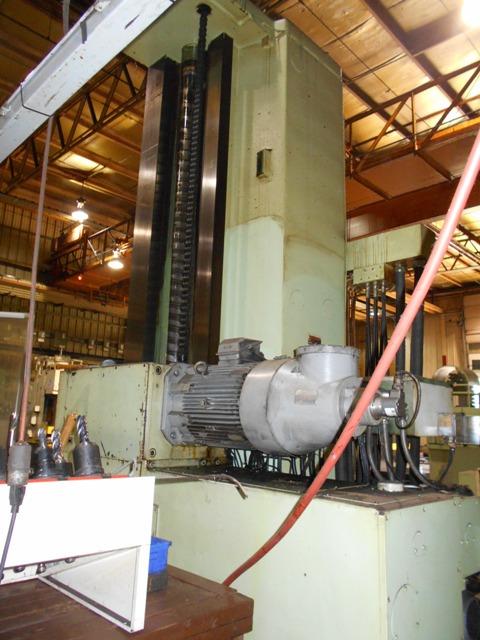

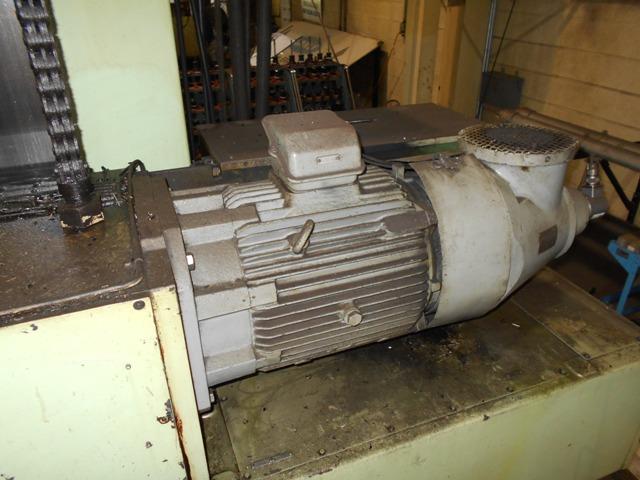

  • Spindle motor has been re-built
  • Gear box has been re-built
