Used Lathes (Manual) For Sale - 1943 Lehmann 3016 X 30 Ft C-C, Machine # 6240

Home »
Lathes (Manual) »
Engine Lathes »
1943 Lehmann 3016 x 30 Ft C-C, Machine # 6240

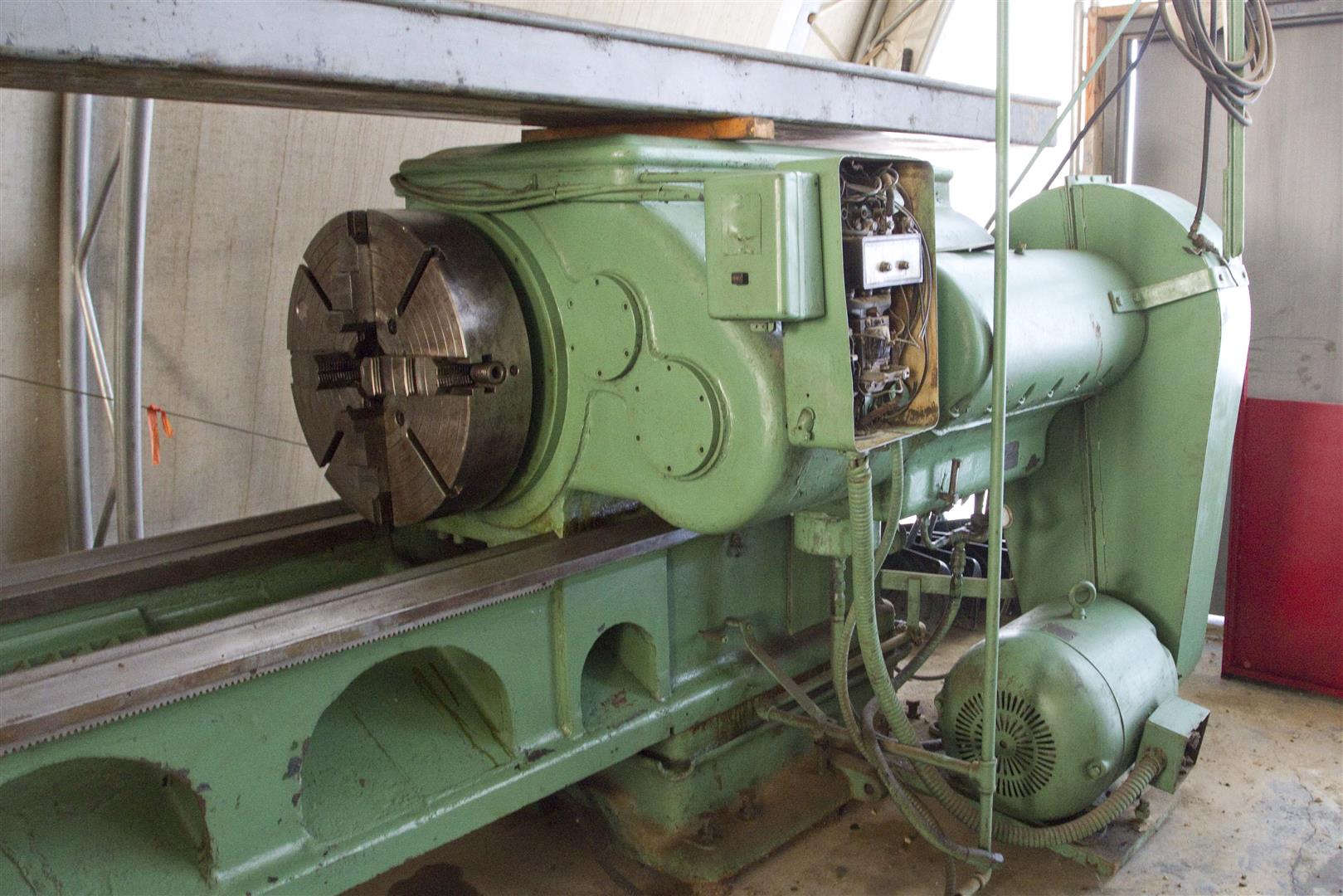

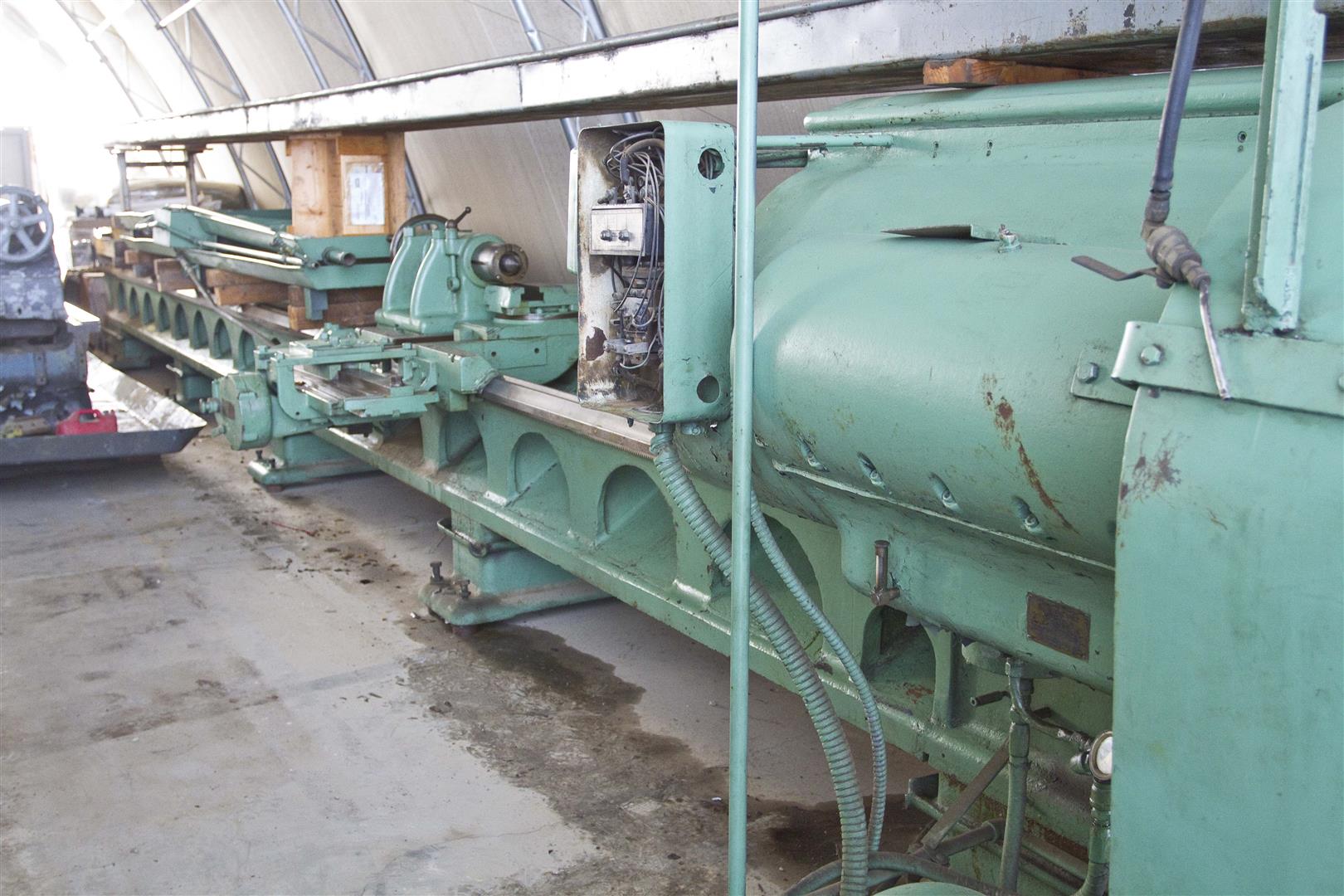

1943 LEHMANN 3016 X 30 FT C-C, MACHINE # 6240

Add to Your File

Brand: 1943 LEHMANN 3016 X 30 FT C-C, MACHINE # 6240

Model: 3016 x 30 Ft C-C

Serial No. :

Category: Lathes (Manual)

Sub Category: Engine Lathes

Condition: used

Weight: (LB)

Year Built: 1943

Status:

Price: $0.00

Description

Reference #:6240
Machine Type:Engine Lathes
Year:1943
Manufacturer:Lehmann
Model:3016 x 30 Ft C-C
Control:
Condition:Good
Under Power:No
Code:L3000

Capacity:

Swing Over Bed: 30"
Swing Over Cross Slide: 16"
Distance Between Centers: 360"

Spindle:

Spindle Speeds Min - Max: 5- 150 RPM
Main Motor (HP): 25 HP / 460 V / 3 P
Spindle Bore/Thru Hole: 9.570"

Threading:

Threading Cutting: 1-30 TPI

Equipped With:

Taper attachment
Tailstock

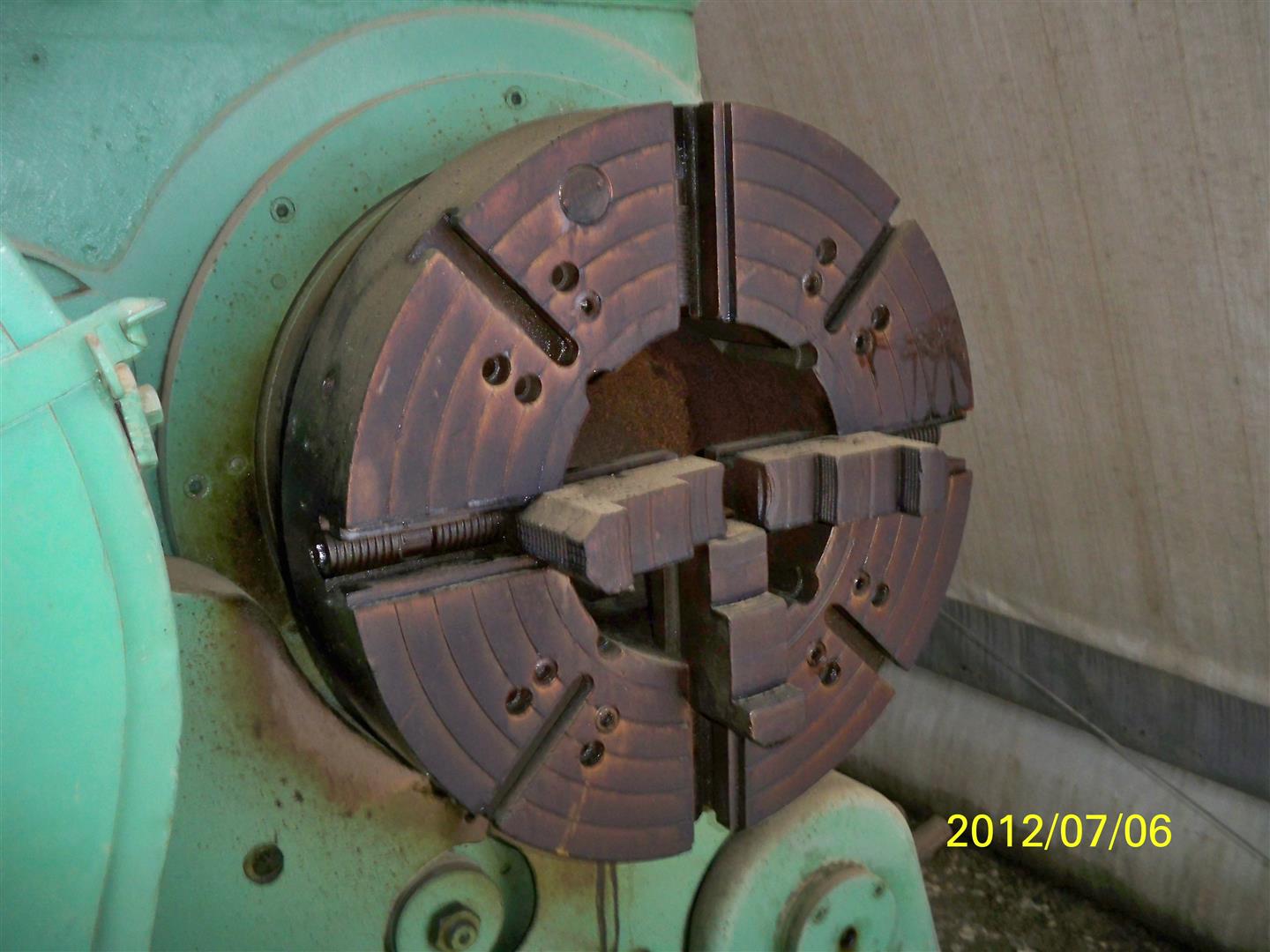

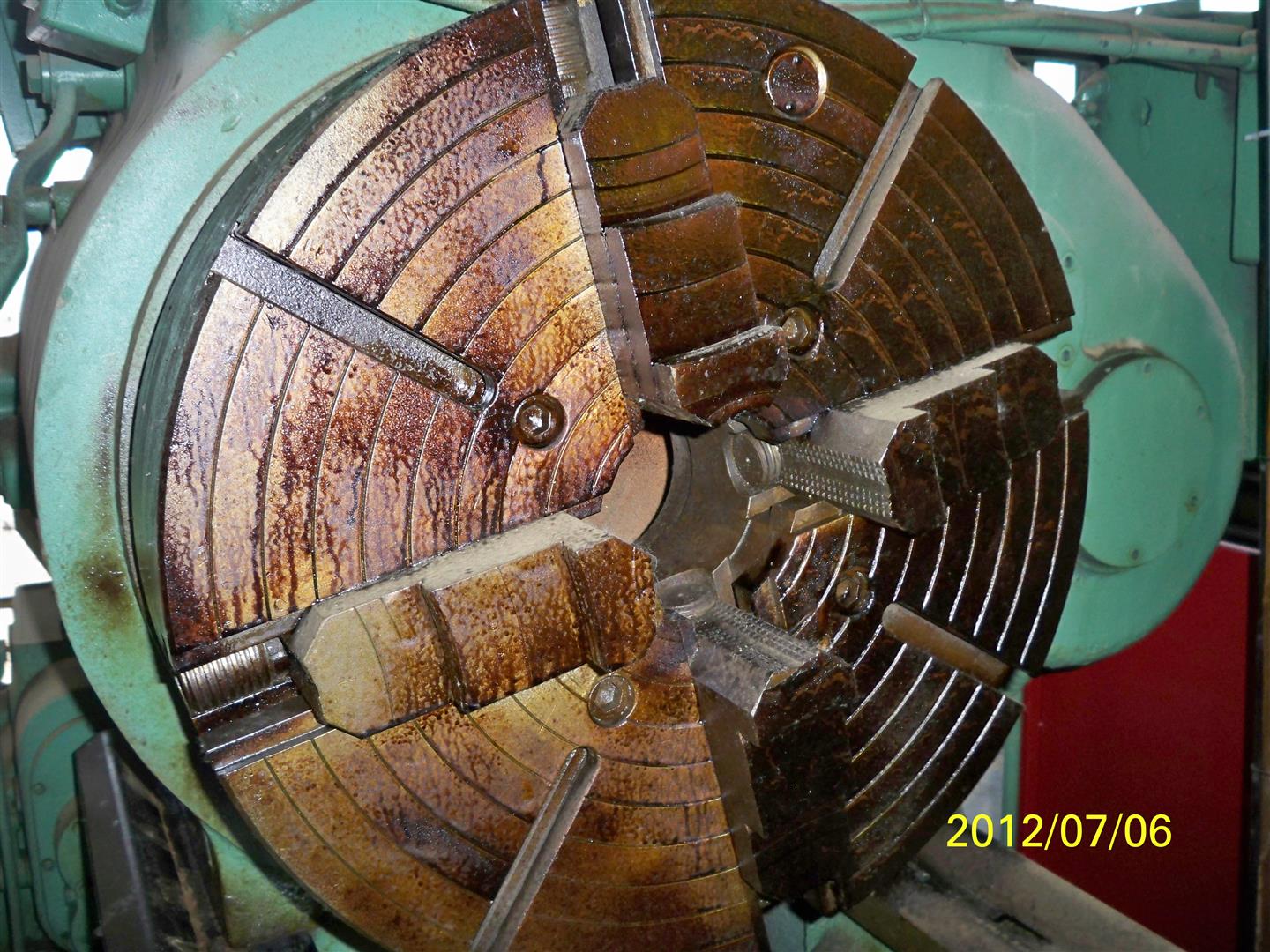

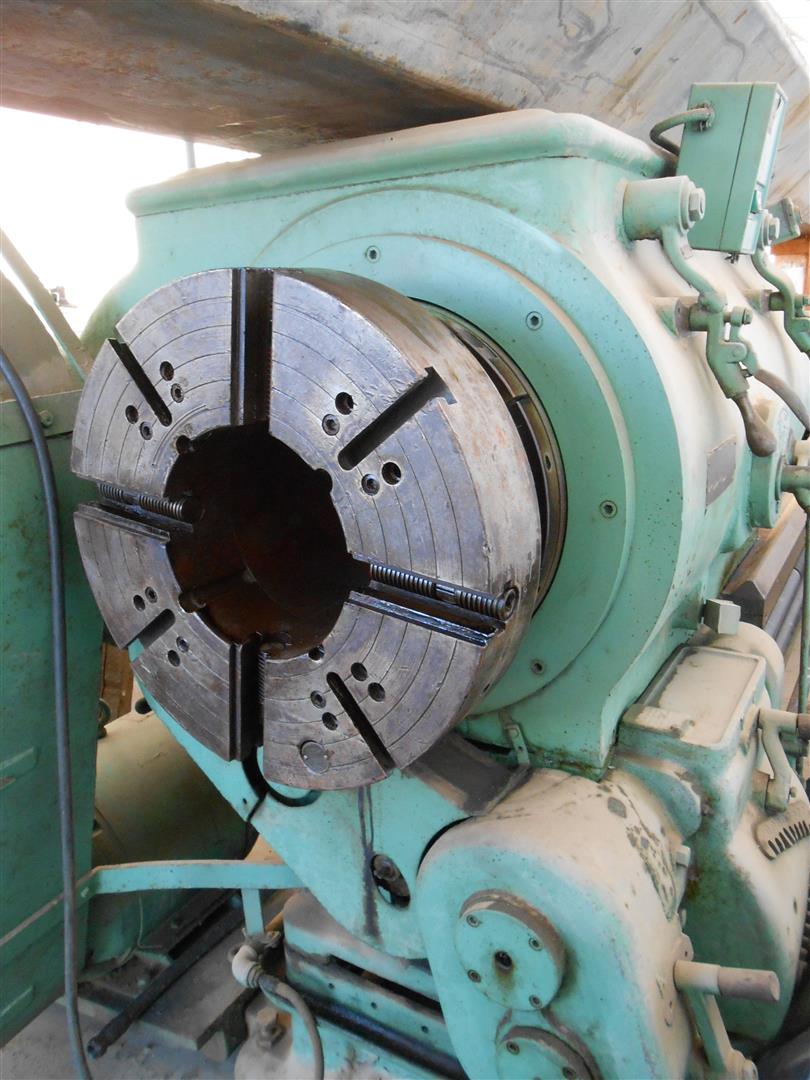

(1) 24" OD x 5" ID 4-Jaw Chuck (on front)
(1) 21" OD x 9.5" ID 4-Jaw Chuck (on rear)

Comments:

Soft bed in very good condition
Machine is in storage/not under power
No DRO
Inch threading
39 ft long, 70" wide, and 66" high. Approx 25000 lbs
Video available upon request
