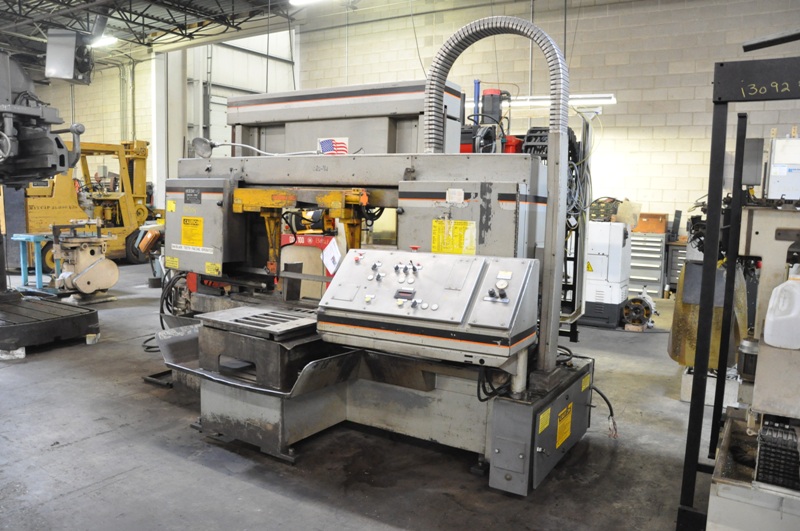

18" X 20" HEM SEMI-AUTOMATIC HORIZONTAL BAND SAW
PRICE: Loaded on Truck, Our Warehouse, York, PA $18,500.00
HMC Stock No. 18004
Machine Serial No. 596398
Machine Model No. H130HM-DC
New Date: 1998
Rated Capacity: 18" x 20"
Capacity Round: 18"; Rectangle: 18" x 20"
Blade Speeds (Variable): 60 to 400 FPM
Blade Size: 1-1/2" x 0.050" x 19
Variable Cutting Pressure: 0- 1,000 Lbs.
Variable Down Feed Rate: 0- 3 IPS
Variable Vise Clamping Pressure: 0- 1,500 Lbs.
Vise Jaw Size: 6" Wide x 8" High
Maximum Vise Opening: 22" Wide
Maximum Saw Blade Guide Arm Opening: 22" Wide
EQUIPPED WITH:

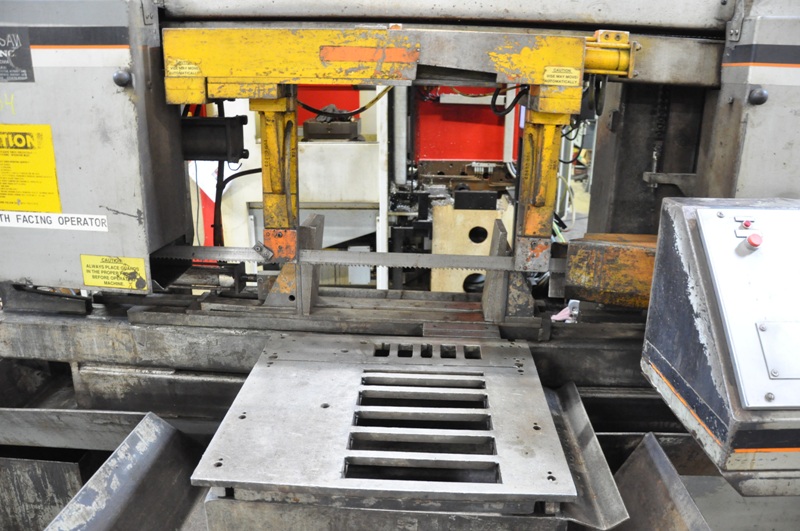

Full Stroking Hydraulic Vise
Powered Adjustable Saw Guide Arm
Powered Adjustable Blade Tension
Solid Blade Guides
Coolant Pump and Pan System
Auto Cycling Coolant System
Rapid Down Joystick Control

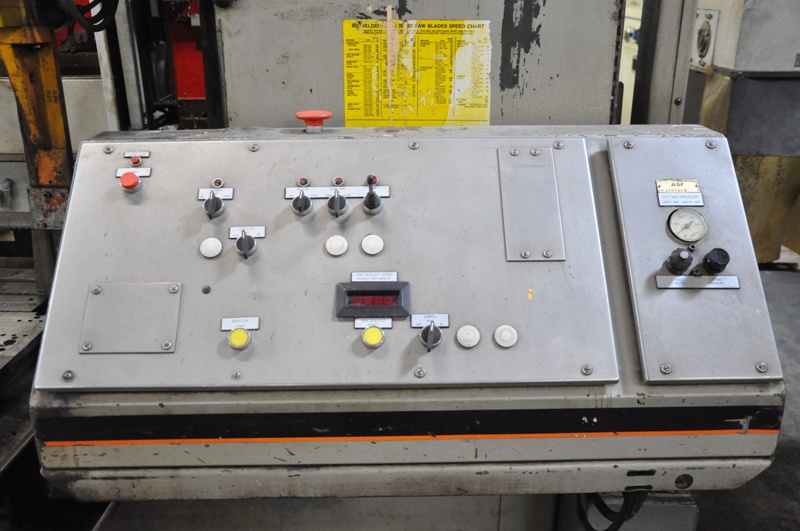

Swing Away Control Console
Custom Made Material Infeed Table, 20" x 30" Wide
Material Exit Table Size: 24" x 26"
Machine Work Light
2 HP Hydraulic Motor
10 HP Main Motor
Wired for 3 Phase, 60 Hz, 230 / 460 Volts
Presently Wired for 440 Volts
NO Bar Feed System
Overall Size: 118" L-R x 71" F-B x 100" High x 8,000 Lbs.
