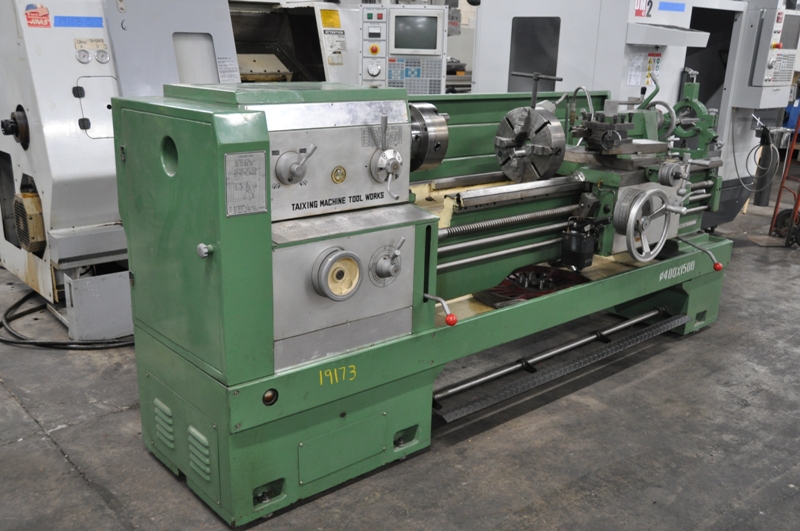

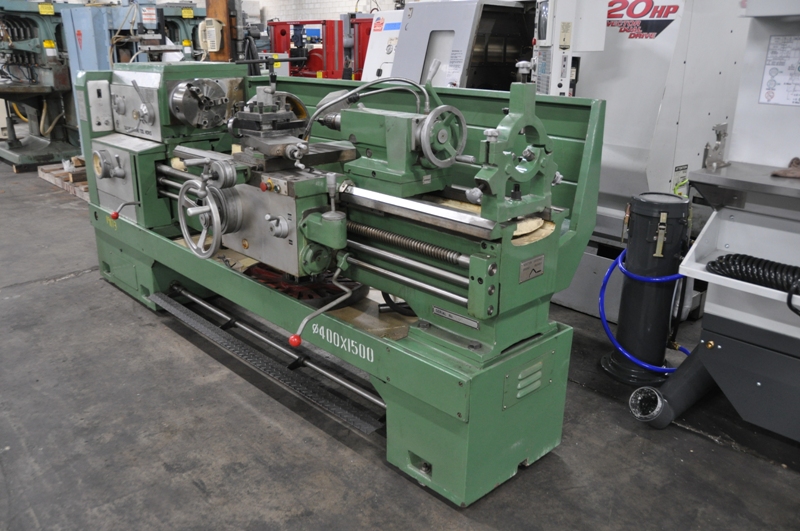

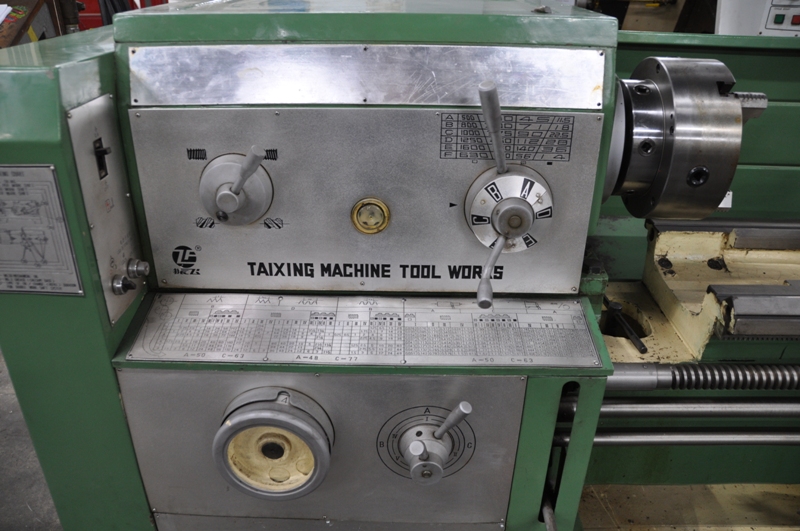

17" x 60" TAIXING GAP BED ENGINE LATHE

PRICE: Loaded on Truck, Our Warehouse, York, PA  $12,500.00

HMC Stock # 19173

Machine Serial No.: 93721

Machine Model No.: Unknown
New Date: Unknown

Swing Over Bed Ways: 17-1/4"
Swing Over Cross Slide: 8-1/4"
Swing in Gap: 26-1/2"
Length of Gap From 3-Jaw Chuck Face: 6"
Spindle Nose Type: D-1-6 Camlock
Spindle Thru Hole: 2-3/16"
Distance Between Centers: 60" Maximum
(24) Spindle Speeds: 14 to 1600 RPM
Threading for Inch, Metric, and Diametrial Pitch Threads

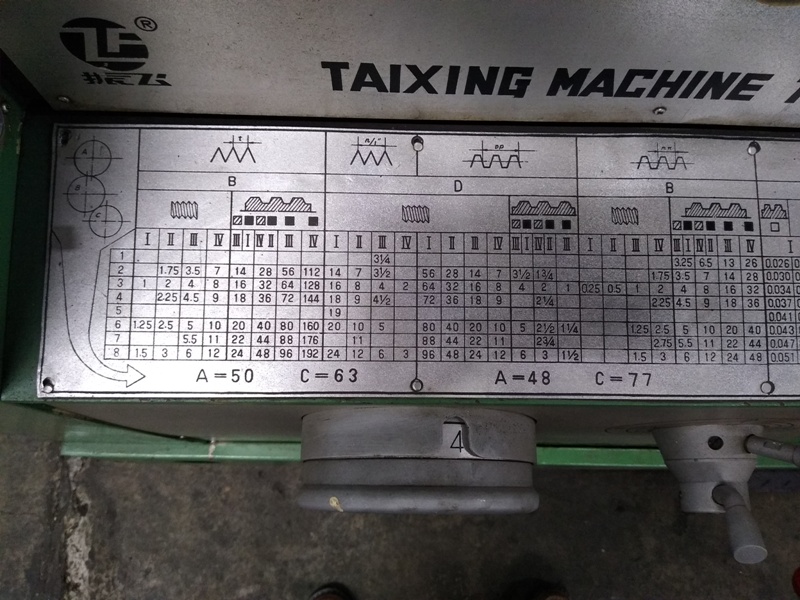

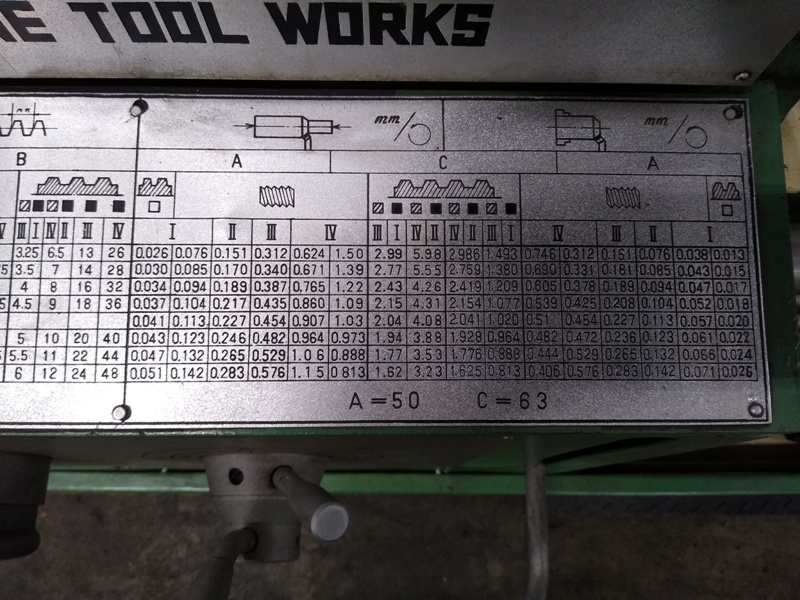

(See pictures for thread and feed chart information.)
Acme Style Lead Screw with Approx. 1/2" Pitch

EQUIPPED WITH:
Inch / Metric Graduated Dials on All Axes and Tailstock Quill
4-Way Rapid Traverse and Feed Control System
Machine Work Light
Removeable Chip Pan
Induction Hardened and Ground Bed Ways
Thread Chasing Dial
One Shot Carriage Lubrication System
Full Length Rear Splash Guard
Assorted Miscellaneous Wrenches

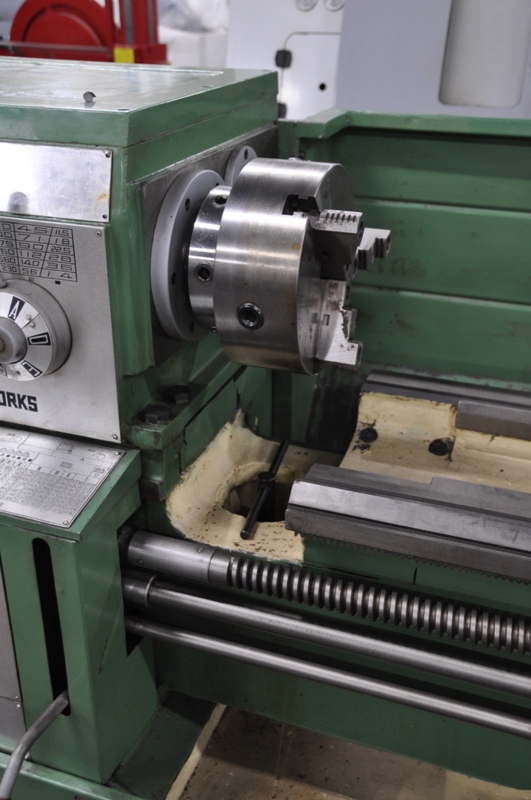

(1) 10" 3-Jaw Chuck with 2-Piece Jaws and Hard Reversible Top Jaws
(1) 12-1/2" 4-Jaw Chuck with 1-Piece Hard Reversible Jaws
(1) 6" Square Built in 4-Sided Turret Tool Post
Height of Tool Post Tool Slot: 1-1/2"
(1) 23-3/4" Diameter Face Plate
(1) 5" Capacity Steady Rest with Solid Supports
(1) Live Center #5 Morse Taper
(1) Dead Center #4 Morse Taper
(1) Headstock Reducer Bushing
Tailstock Quill Taper: #5 Morse
(1) Jacobs Key Type #16N Drill Chuck 1/8" to 5/8" Capacity with Key, #2 Morse Taper Shank
(1) #5 to #2 Morse Taper Sleeve
Full Length Foot Treadle Spindle Brake
Coolant Pump and Piping
Machine is in EXCELLENT Condition
7-1/2 HP (5.5 KW) Main Motor

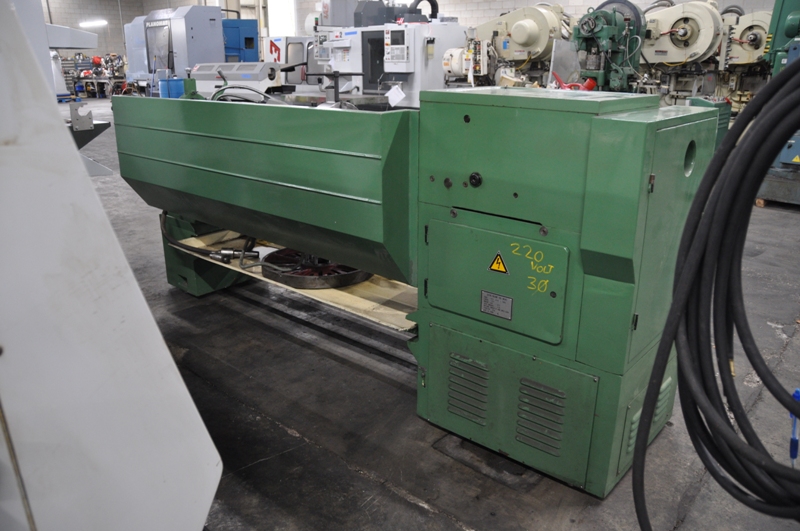

Wired for 3 Phase, 60 Hz, 220 Volts ONLY, 23 Total Amps

Overall Size: 120" LR x 45" FB x 52" High x ? Lbs.
