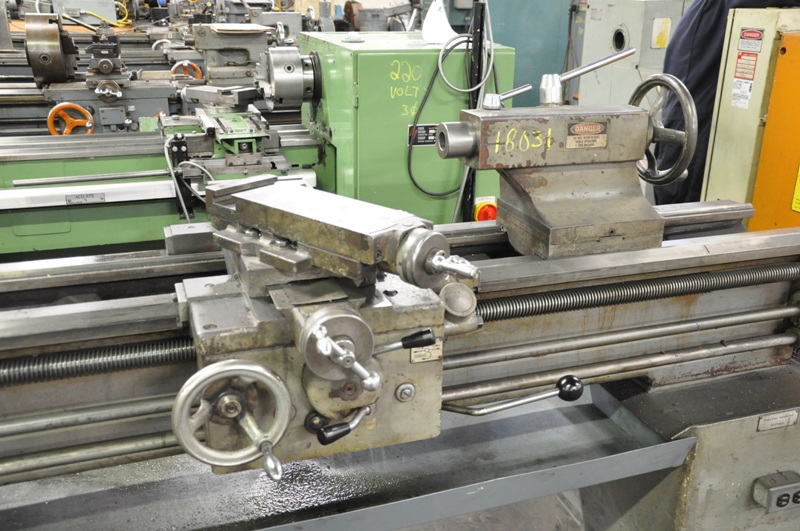

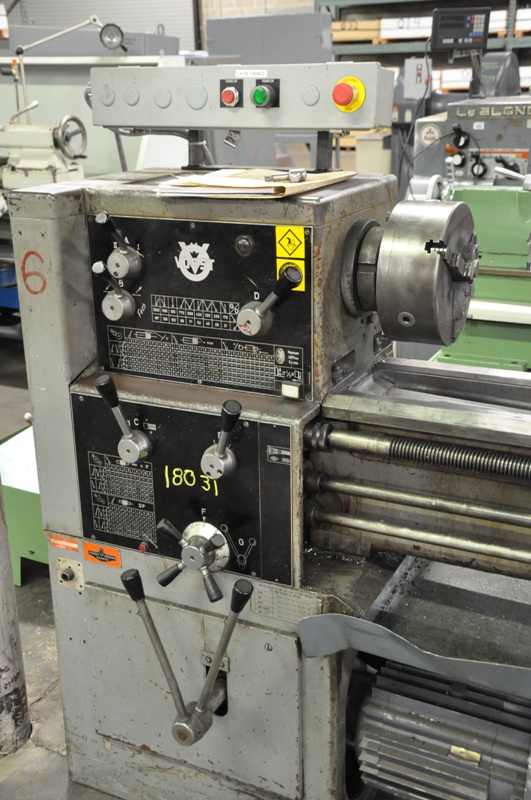

17" X 59" VOEST GAP BED ENGINE LATHE

PRICE: Loaded on Truck, Our Warehouse, York, PA …… $3,950.00

HMC Stock #18031
Machine Serial No. 1-037/1.5/5488
Machine Model No. DA-226
New Date: Unknown
Built in Austria

Swing Over Bed: 17"
Swing Over Cross Slide: 10-1/2"
Swing in the Gap: 22-1/2"
Distance Between Centers: 59"
Spindle Bore: 1-13/16"
Spindle Nose: L-0
Tailstock Spindle Taper: #4 Morse
(12) Spindle Speeds: 21 to 1,500 RPM
(66) Longitudinal Feeds: .0027 to .150 IPR
(66) Cross Feeds: .0014 to .075 IPR
(66) Thread Range Inch: 1 to 56 TPI
(66) Thread Range Metric: .5 to 28 MM
No Drive Gear Changes Required for the Above Threads and Feeds
Can Cut Diametral and Module Threads with Special Gear – NOT Supplied

EQUIPPED WITH:
Hardened and Ground Bed Ways in Good Condition
9-3/4" Lathe Chuck, 3 Jaw with 1 Piece Hard Reversible Jaws
(1) Chuck Wrench
Taper Attachment But has PARTS MISSING

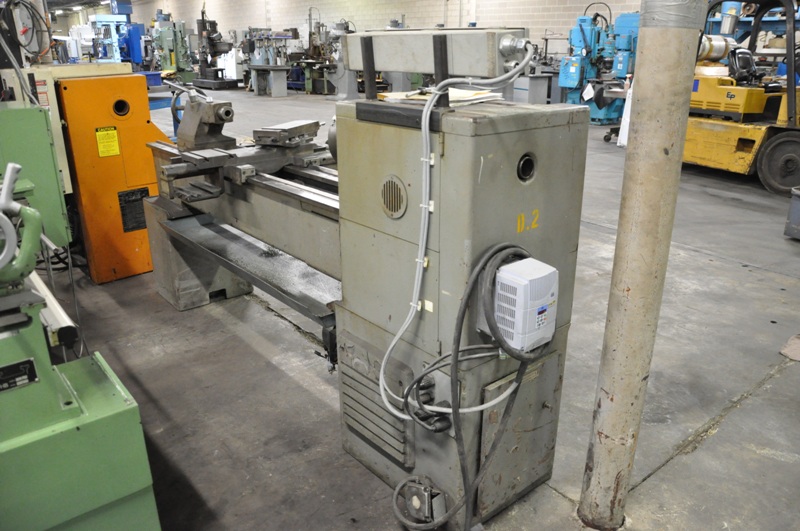

Updated Electrical Controls: Weg Inverter Motor Control, Model CFM 08 Plus
Removable Chip Pan
Factory Service Manual
NO Coolant System or Pump
NO Tool Post
7-1/2 HP Main Motor
Wired for 3 Phase, 60 Hz, AC Electrics
Overall Size: 112" L-R x 38" F-B x 58" High
