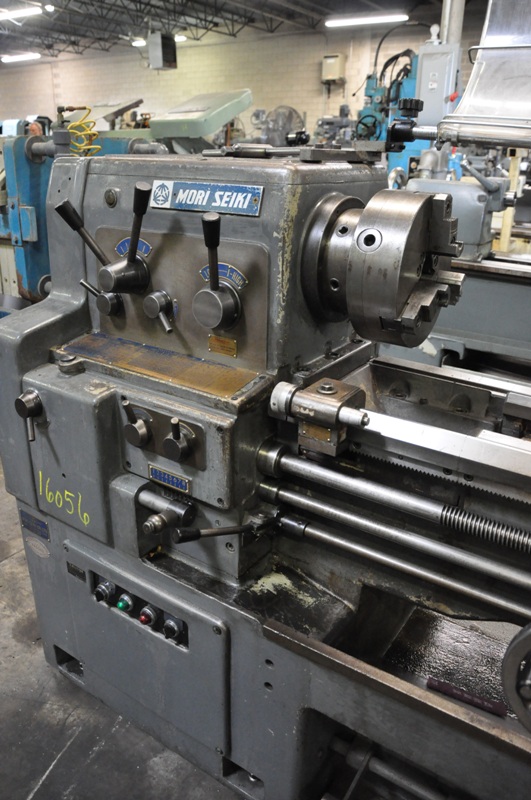

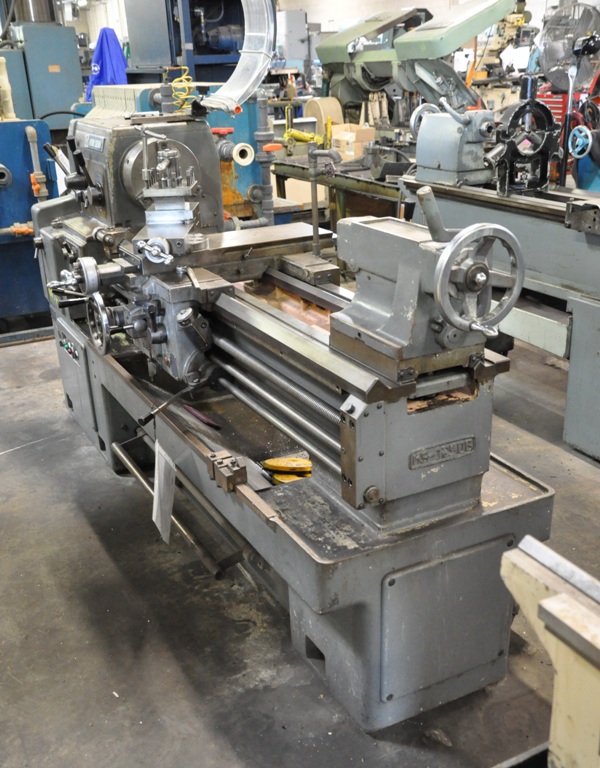

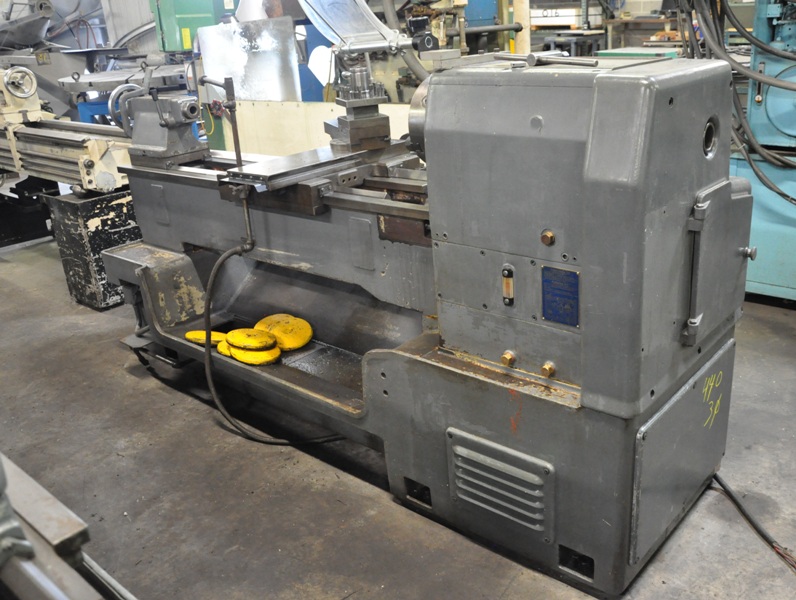

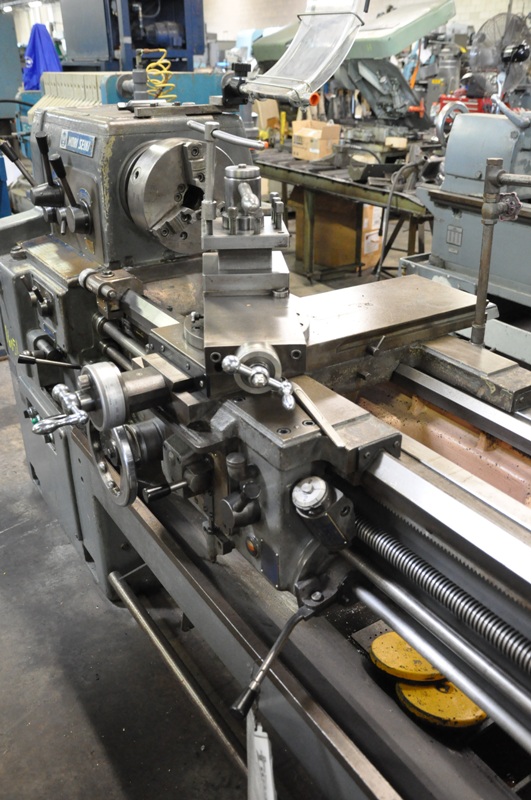

17" X 47" MORI SEIKI GAP BED ENGINE LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA $9,500.00
Stock # 16056
Machine Serial No. 12457
Machine Model No. MS-125OG
New Date: Unknown
Swing Over Bed: 19-1/8"
Swing Over Gap: 25-9/16"
Width of Gap: 8-1/2"
Swing Over Cross Slide: 9-3/4"
Distance Between Centers: 47"
Spindle Nose: D6 Cam Lock
Spindle Bore: 2-3/64"
Taper of Spindle Bore: Morse #6
Taper of Center: Morse #4
(12) Spindle Speeds: 32 to 1800 RPM
(40) Feeds:
Longitudinal: .0018 to .050 IPR (.045 to 1.254 mm/rev)
Cross: .0018 to .050 IPR (.045 to 1.254 mm/rev)
Threads:
Inch: 80 to 4 TPI
Metric Threads: .5 to 7 mm
D.P. Threads: 112 to 8
Module Threads: .5 to 3.5
Cross Slide Travel: 9-5/8"
Compound Rest Travel: 5-7/8"

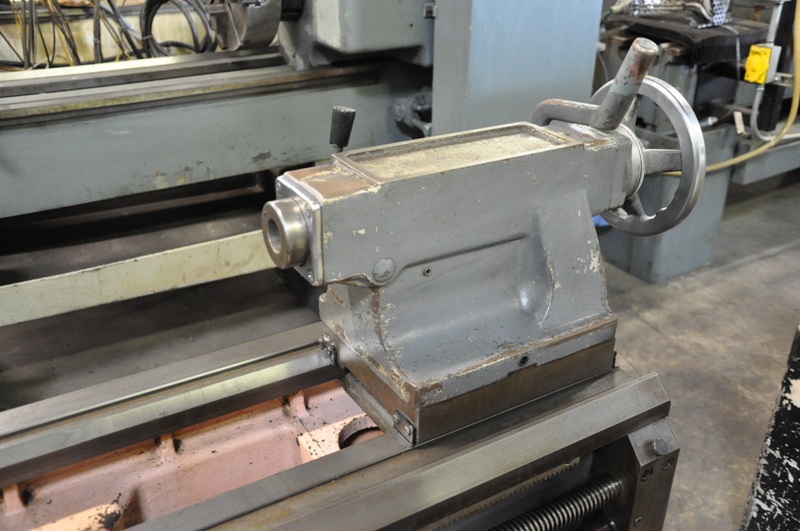

Tailstock Spindle Travel: 6"
Taper in Tailstock: Morse #4
EQUIPPED WITH:

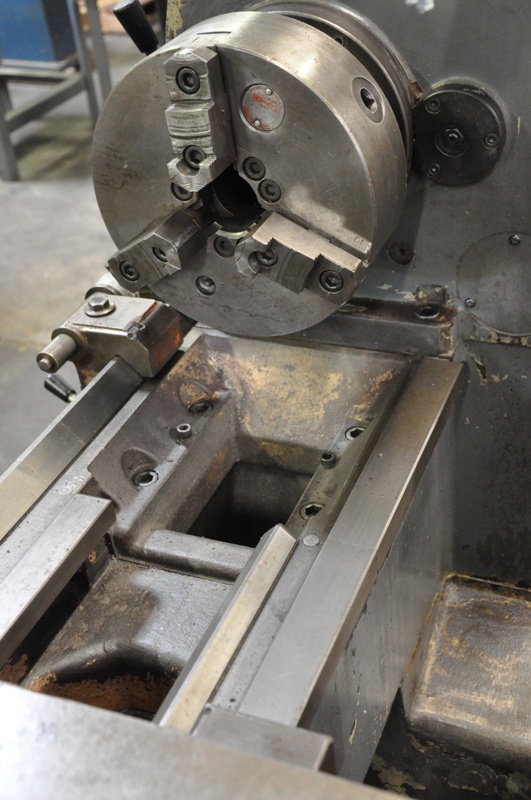

10" Cushman 3-Jaw Chuck

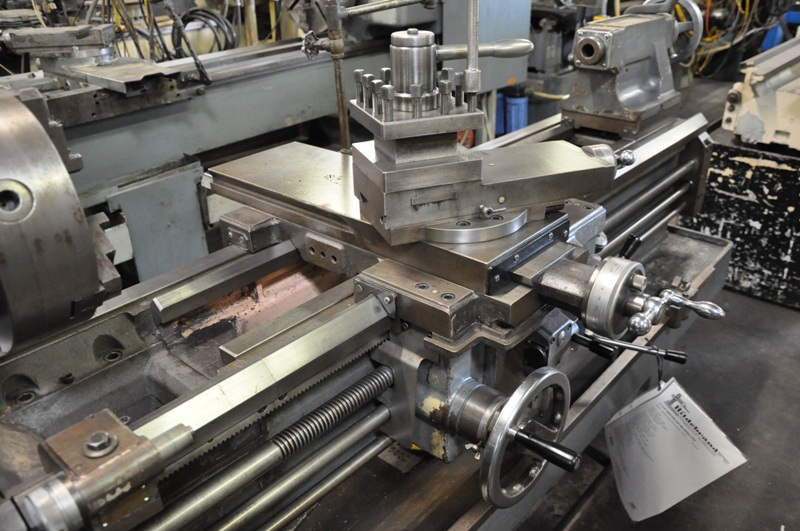

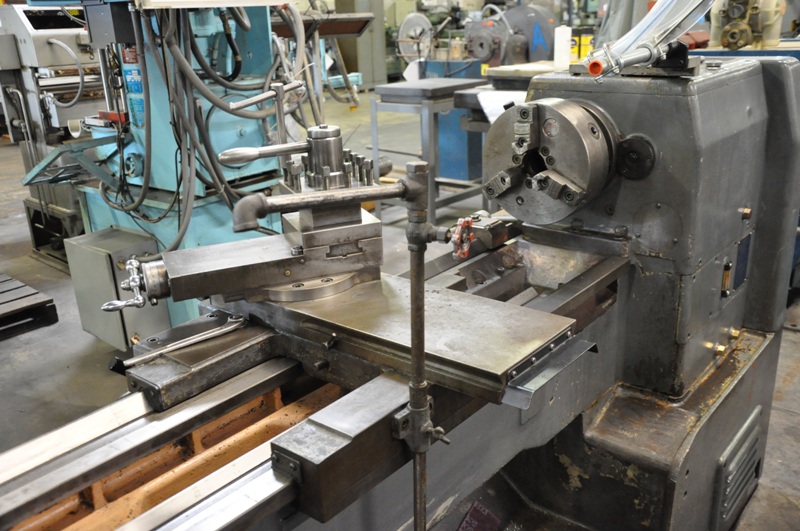

4-Position Turret Type Tool Post
Automatic Feed Wick-Out
Micrometer Carriage Stop
Spindle Brake
5 HP Main Motor, Wired for 3 Phase, 60 Cycle, 440 Volts
Overall Size: 96" L-R x 48" F-B x 48" H x 5,200 Lbs.
