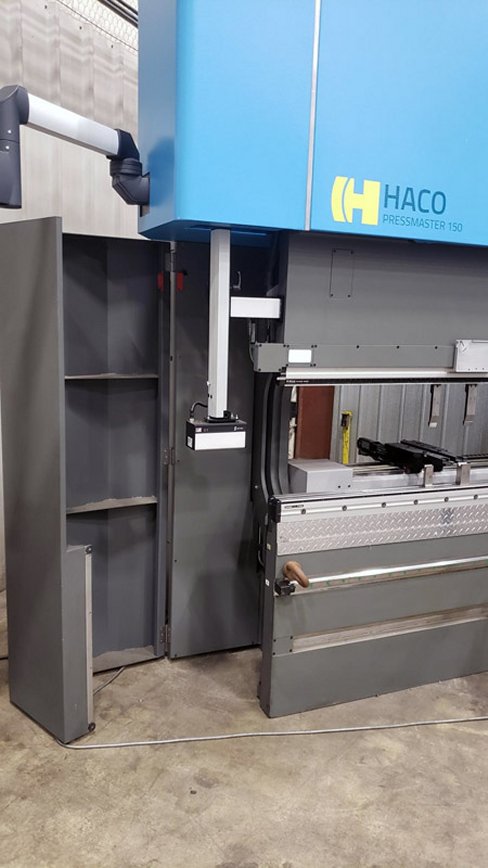

165 TON X 12 HACO PRESS MASTER MODEL:165-12-10,MFG:2019 OUR STOCK NUMBER: 12113

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


PRESS MASTER MODEL:165-12-10
Press Brakes
CNC Pressbrake
used
26455 (LB)
2019
$0.00

Description

Technical Data
Model: 165-12-10
Bending length: 144"
Capacity: 165 Ton
Distance between housings: 124"
Gap: 15.75"
Daylight opening: 21.25"
Stroke: 14.56"
Table height: 36"
Fast approach speed: 472 inches per minute
Maximum bending speed: 23.60 inches per minute
Fast return speed: 401 inches per minute
Motor power: 20 HP
Machine length: 163"
Machine width: 67"
Height: 117"
Weight: 26,455 lbs.

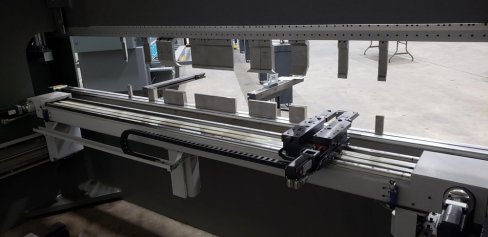

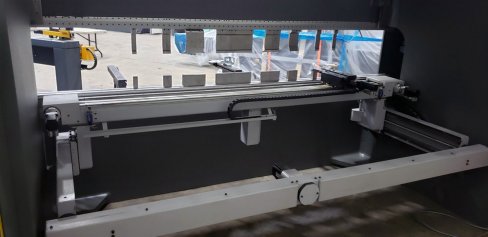

5-Axes Backgauge Data
Axes: X,R, Z1-Z2 plus X3 Axes
Synchronized CNC controlled finger depth: X-axis
Synchronized CNC controlled finger height: R-axis
Independent CNC Controlled finger width: Z1-Z2
Synchronized CNC controlled finger depth of one finger: X3
Stroke X-axis: 800 mm
Speed: X-axis: 1000 mm per second
Stroke R-axis: 130 mm
Speed R-axis: 250 mm per second
Stroke Z1-Z2 axes are according to machine length
Speed Z-Z2 axes: 1000 mm per second
Stroke X3-axis: -50 mm to + 50mm

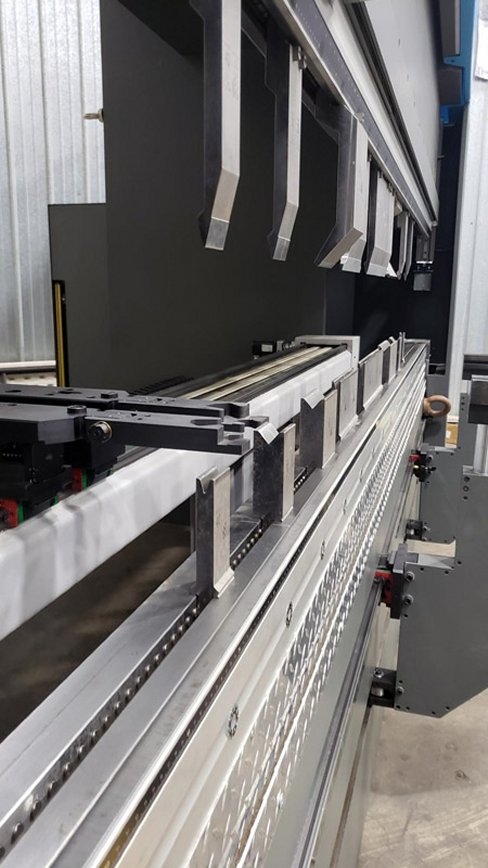

*Equipped with "break" fingers for perfect gauging of work pieces placed an

angle or 3D components
Equipped with:
Wila New Standard PRO hydraulic clamping
CNC New Standard PRO crowning
Fast and Accurate backgauge
Bend zone and back gauge illumination
Variable inverter drive
SYNCHRO system (electro-hydraulic leveling and depth stop)
Beam foot pedal
FastBEND 3D MT premium 24" control
