16"X16" MAZAK HCN NEXUS 4000-III 4-AXIS PRECISION HORIZONTAL MACHINING CENTER - MAZAK NEXUS 4000-III

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


HCN NEXUS 4000-III
Machining Centers Vertical Horizontal CNC
Horizontal Machining Centers
used
23584 (LB)
2016
$0.00

Description

SOLD                      SOLD                   SOLD

Specifications:

Stroke: X Axis stroke (column travel right/left) 22.0" Y Axis stroke spindle head travel up/down 25.2" Z Axis stroke (pallet forward/backward) 25.2" Distance from pallet center to spindle nose 2.8"-28.0" Table indexing time 1.3 sec each 90 deg Spindle: Max. Spindle speed 18,00 RPM Spindle bearing size 70mm Feedrate: Rapid traverse rate (X,Y,Z Axes) limited w/cont. axis mov. 2,362 IPM Axis acceleration/deceleration 1G Automatic Tool Changer: Tool storage capacity 60 Tools Max. Tool diameter/length (from gauge line)/weight 6.7" Tool selection method (Random selection @) Shortest path Tool change time (chip to chip) 2.4 sec. Motors: Spindle motor 25/23 HP Flood coolant pump motor 50/60 HZ

Machine size:

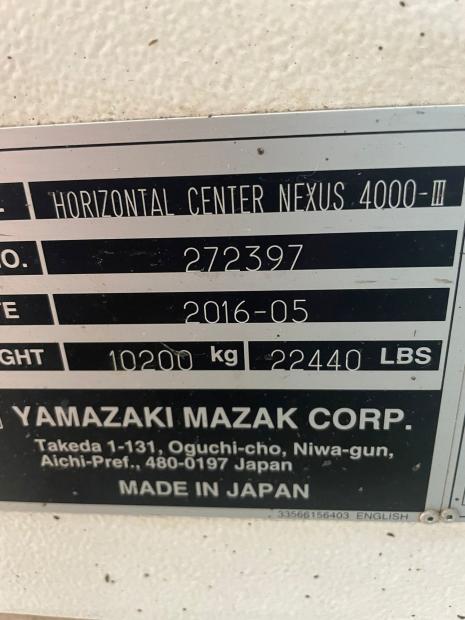

87"x207"x106.8"H Machine weight 23,584 lbs

MOTOR SPECIFIFCATIONS:

25 HP Main Spindle Drive Motor

Equipped With:

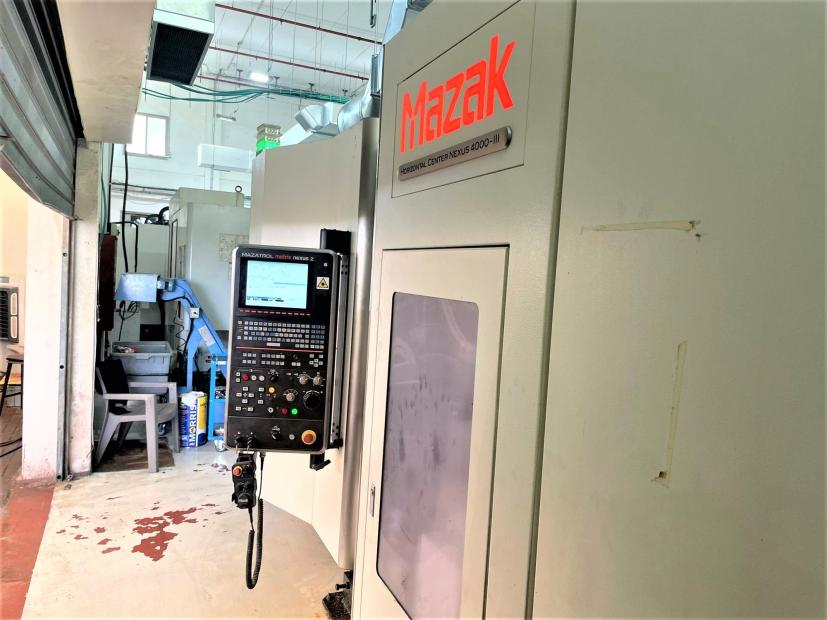

Mazatrol Matrix Nexus 2 CNC Control Flood Coolant System Work Light One set of Adjusting Tools Foundation kit (Block, Fixture) Mazak Standard Color (F Whites/s Black) The safety Measures on worldwide level Y Axis Travel 25.20" & 2 Pallet changer 19" Color LCD (Touch Screen) Power Transformer for other Markets Main Spindle Motor AC 18.5 Kw (25 HP) Spindle Chiller Unit, Absolute Positioning System Standard Tap Pallet (w/o Edge Locators) Safety cover for 2 Pallet Changer Coolers for Ball Screw (X,Y,Z-Axis), Roller Guides Air Through Spindle Systems (Spndl Stop), Niagara Coolant (Recommended Equipment) Operator Door Interlock with Lock-Switch, Auto Power on/off + Warm-up ATC & APC Auto Recovery, Tool ID Magazine Panel (Touch panel) Enclosed Coolant & Splash Cover Prep. for Chip Conveyor Rear (Consep-1) Smooth Standard Software, User macro (Common variables; 600 pairs) Mazak Tapping/Boring Tornado (Mazatrol & EIA/ISO) EIA/ISO Code Input Function (Standard), Add. EIA/ISO Functions (Re.IEA/ISO) Inverse Time Feed, G37.Automatic Tool-length Measurement Sequence number comparison Stop Function Background Tool Path Check, Add. Workpiece Coordinate Sys. 300-Pairs Thread Cutting Function, EIA Pattern Cycle (Grid, ARC) USB I/F (1-Port), Lan Port, Accuracy Inspection Relocation Detector & Additional Reinforcement for transport OPTIONAL EQUIPMENT: Auto Tool length measure. & Break Detector Manual pulse generator (wired/detachable), Hi-Press Coolant thru sys (15KG (213 PSI)) Chip Conveyor side Dispo, (CONSEP-1) N/A6PC B)Synchronized Tapping & B) Cylindrical Interpolation (RQR.NCRT) Signal Tower (3 Colors lights, Square), 60 Tool Drum magazine (Random Memory) Spindle Speed 18,000 RPM (Random memory) & NC Rotary Table (360,000 Positions)

16"X16" MAZAK HCN NEXUS 4000-III 4-AXIS PRECISION HORIZONTAL MACHINING CENTER

Stock Number 12834
