15" X 54" LEBLOND SERVO SHIFT ENGINE LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $5,500.00
HMC Stock No. 16118
Machine Serial No. 8C3867
Machine Model No. 8C
New Date: 1972
Swing Over Bed: 15-1/2"
Distance Between Centers: 54"
Swing Over Cross Slide: 9-1/2"
Spindle Bore: 1-25/64"
Spindle Nose: L-O
(12) Spindle Speeds: 45 to 1,800 RPM
Feeds: .0018 to .104 IPR
(48) Threads (Inch): 4 to 224 TPI
Taper in Tailstock: #3 Morse
Tailstock Quill Travel: 5"
EQUIPPED WITH:

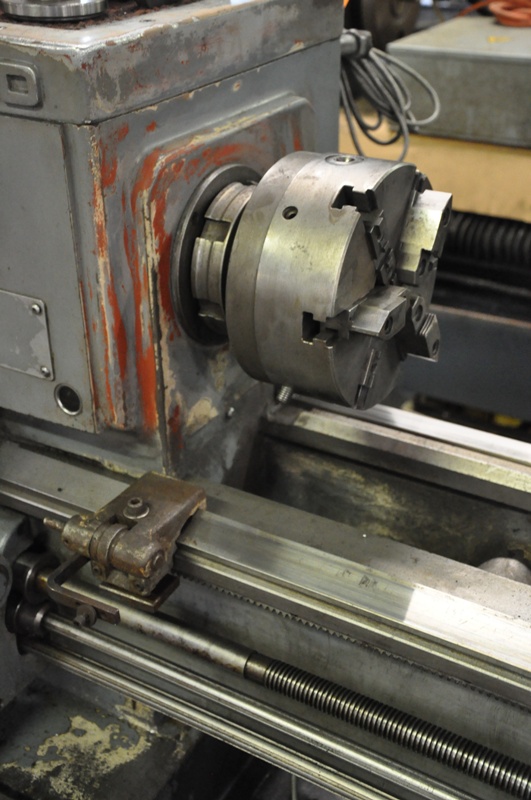

Self-Centering 8" 6-Jaw Cushman Chuck (Missing 3 Top Jaws)
Collet Draw Tube
Sargon 2-Axis Digital Readout

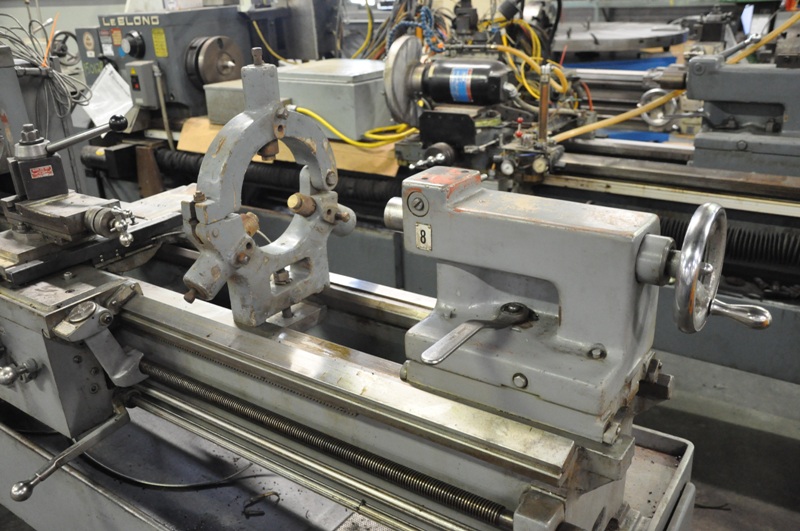

7" Solid Bushing Steady Rest

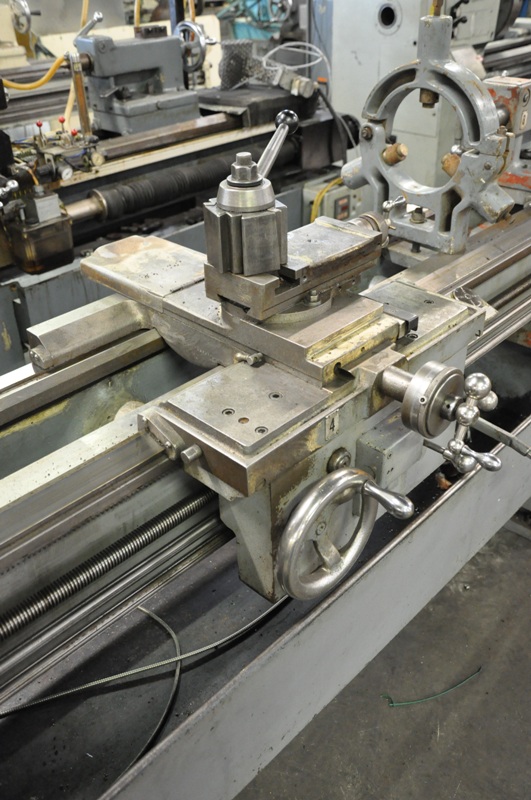

Aloris Quick Change Tool Post
Assorted Change Gears
Removable Chip Pan
Manual
7-1/2 HP Main Motor, Wired for 3 Phase, 60 Cycle, 220 Volts
Overall Size: 100" L-R x 40" F-B x 62" H x 2,500 Lbs.
NOTE: This Lathe is Not Equipped with Reverse. It is Forward Only. There is No Starter for Reverse.
Also Missing the 127 Tooth Gear for Standard Feeds and Threads.
