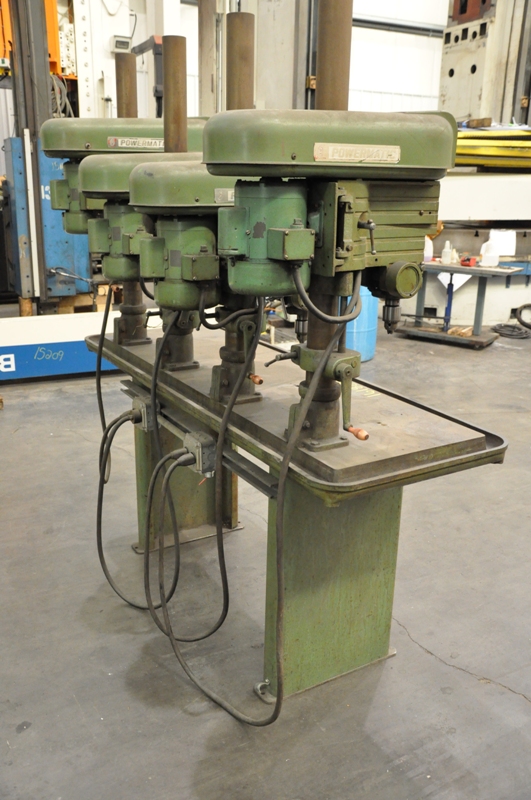

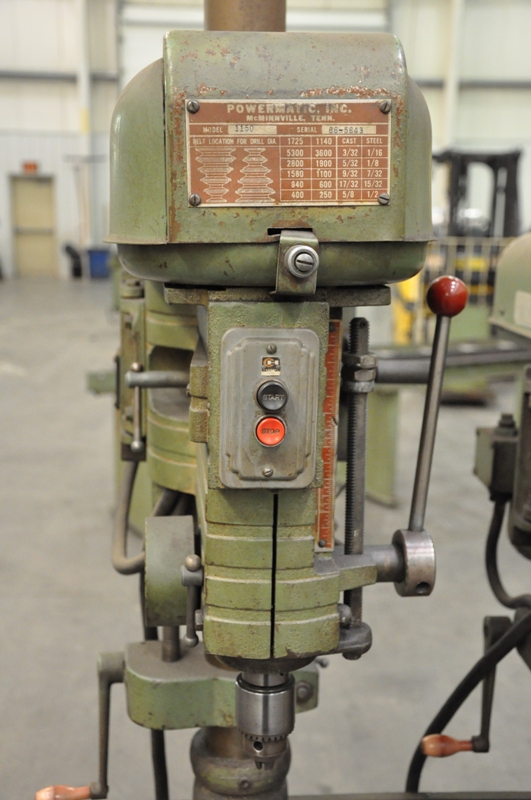

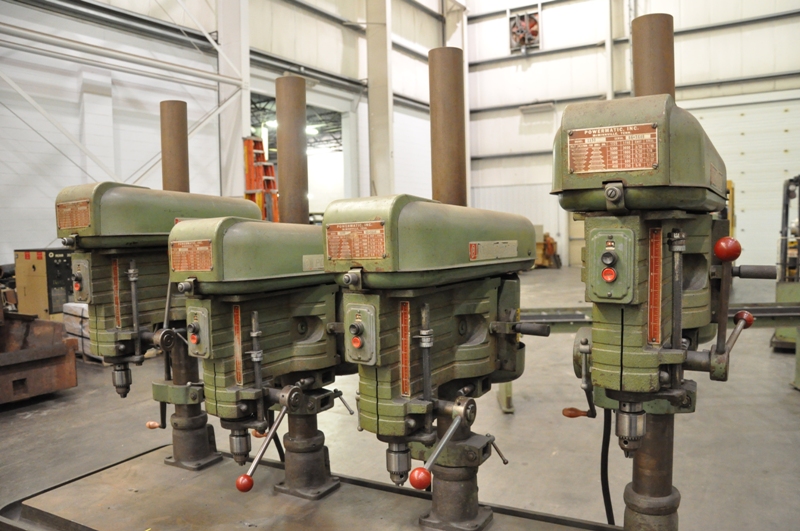

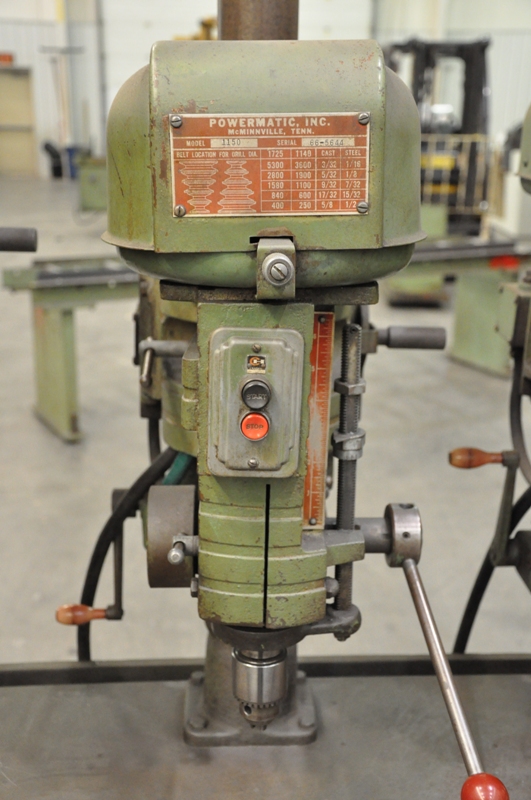

15" POWERMATIC 4-SPINDLE DRILL
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $2,950.00
HMC Stock No. 16188-P
Machine Serial No. 66-5643, 44, 45, 46
Machine Model No. 1150
New Date: 1966
Table Surface Work Area: 14-5/8" F-B x 65-3/4" L-R
Table Overall with Coolant Trough: 25-1/4" F-B x 71" L-R
Distance Spindle Nose to Table: 0" to 26" Approx.
Distance Between Heads: 17"
Floor to Table Height: 33-1/2"
Spindle Center to Column Collar: 7"
Manual Crank Adjustment of Each Head on Column Post
Column Posts: 3" Diameter
Quill Travel: 6" Manual Only
Adjustable Quill Depth Stops on Each Spindle
Jacobs Taper Spindle Noses with 0-1/2 Jacobs Chuck, Key Type
Manual Quill Clamp on Each Head
On-Off Switch on Each Head
(5) Spindle Speeds: 400 to 5300 RPM via 5-Position V-Belt Pulley
with Manual Belt Change
Each Motor is Single Phase, 60 Hertz, 115/230 Volts, 1725 RPM
(1) Chuck Key
Overall Size: 71" L-R x 26" F-B x 75" H
