Description

SPECS:

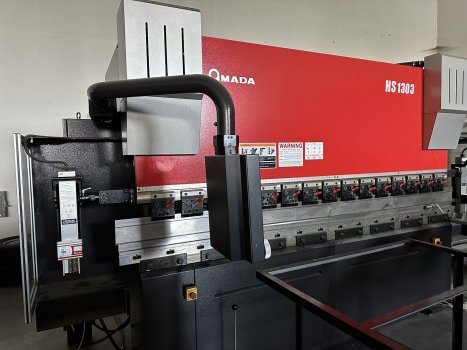

Built on the solid foundation of the HFE M2 Series, Amadas HS

Press brake sereis included addional production-enhancing

features and an innovative touchscreen NC Control. Overall

design improvements result in an eco-friendly series that provide

maximum performance and ease of use. Equipped with an energy

saving drive -- the inverter on the HS Series reflects Amadas

ongoing commitment to environmental protetion. The new drive

system uses a frequency inverter that controls the motor pump and

ensures efficiency by operating only when necessary. The system

continually monitors and self-regulates beding requirements --

this translates to using 20% less energy, a significant reduction

in maintenance requirments, less oil consumption, lowere noise

levels and an incease in reliability.

Features of the HS 1303 include:

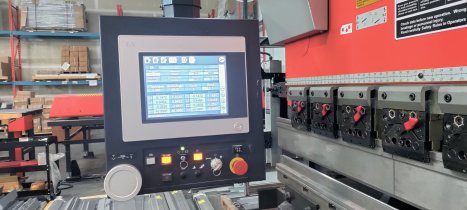

Numberica Control (NC) - The AB PAD is equipped with an intuitive

touchscreen interface. Users can also remotely monitor the

operation of the machine, transfer prgrams and perform

diagnostics.

Multiple Axis Backguage - The light weight but rigid design

allows for high speed and precise positioning. With the gauging

capacity of up to 40", large components can be easily processed.

In the 6-axis version, the modules L1 L2 and Y1 Y2 and

programmable independently, offering greater backgauge flexiblity.

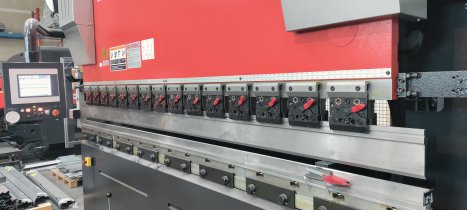

SGRIP Punch Holders - Allows the brake operator to change punches

on the press brakes quickly and safely without requiring a

wrench. The patented SGRIP design dramatically decreases tool

changeover time, thereby increasing bending productivity.

Tonnage - 146

Working Lenght - 122"

Table Width - 3.54"

Working Height - 38.6"

Open Height - 18.5"

Stroke Length - 7.87"

Throat Depth - 16.5"

Distance Between Frames - 106"

Oil Capacity - 39.6 Gallons

Total Lenghth - 157"

Total Depth - 111"

Total Height - 104"

Total Weight - 18,077 lbs.

Nominal Supply Current - 30A

Power Requirements - 21kVA

Maximum Approach Speed - 3.94"/sec

Maximum Bending Speed - 0.39"/sec

Maximum Return Speed - 3.94"/sec
