Specifications HG 1303
Tonnage (US) 146 tons
Maximum Bend Length 122.4"
Distance Between Frames 106.3"
Stroke Length 9.8"
Open Height (no holders) 20.5"
Throat Depth 17.7"
Machine Stroke 9.8"
Table Height 37.4"
Approach Speed 8.7" per second
Bending Speed 0.79" per second
Return Speed 9.8" per second
Number of Cylinders 2
Hydraulic Fluid Capacity 19 gallons
Machine Length 159"
Machine Width 95"
Machine Height 121"
Machine Weight 25,355 lbs.
Nominal Supply Current 60 A
Provided Power 21 kVA

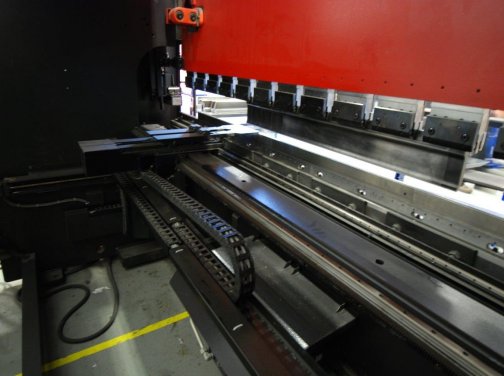

Backgauge Range 27.5"

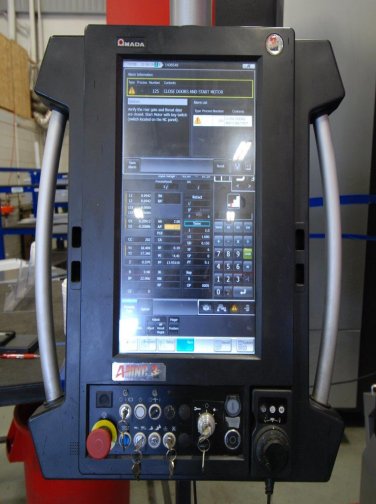

Control Type AMNC 3i
Program Capacity Unlimited via net
Possible Axis Under CNC Control 11
RAM D1 & D2
Backgauge L1 & L2
Backgauge Horizontal Y1 & Y2
Backgauge Vertical Z1 & Z2
Ram Repeatability 0.00004"
Backgauge Speed (L-axis) 1,181" per minute
Backgauge Speed (Y-axis) 3,543" per minute
Backgauge Speed (Z-axis) 787" per minute
Click on link for video under power:
https://youtu.be/_TB-uz2uEMw

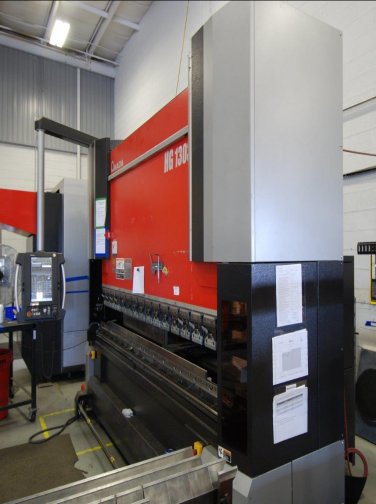

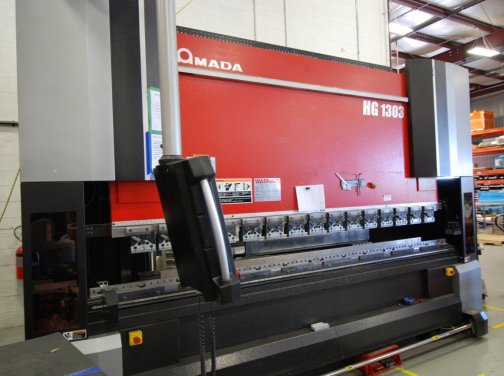

To view more information on the 146 TON X 122" AMADA HG 1303 SERVO-HYDRAULIC CNC PRESS BRAKE, MFG:2015 OUR STOCK NUMBER: 11784, including reviews, brand information, photos, videos, and more,
