WAHLI FRERES DIXI W100 4 AXIS HORIZONTAL MACHINING CENTER

PRICE: Loaded on Truck, Our Warehouse, York, PA …… $19,500.00

Stock # 13092-P
Serial # 15
New 1995
Model # 100
Order # 31009

MACHINE CAPACITY:
X Axis: 19.7", Y Axis: 15.7", Z Axis: 19.7"
Distance Spindle Axis and Pallet: .8" Min. to 16.5" Max.
Distance Spindle Nose and Pallet Axis: 3.9" Min. to 16.5" Max.

PALLET CHANGING SYSTEM:
Pallet Dimensions: 12.6" x 12.6"
Pallet Locations: 4
Programmable Indexing: 360,000 x 0.001 Degrees
Permissible Load Per Pallet: 660 Lbs.
Pallet Changing Time: 7 Seconds

FEED RATE AND THRUST POWER:
X, Y & Z Linear Axes, Rapid Feed Rate: 787 IPM
X, Y & Z Linear Axes, Work Feed Rate: .04 to 472 IPM
Thrust X, Y & Z Axes: 1572 Ft. Lbs.

WORK SPINDLE:
Spindle Motor: 20 HP
Speed Range: 50 to 20,000 RPM (not verified)
Spindle Taper: CAT 40
Machine Spindle Rebuilt January 2012

TOOL CHANGER:
External Floor Mounted
Number of Tools: 48
Max. Tool Weight: 26.4 Lbs.
Max. Tool Diameter: 3.15"
Max. Tool Length: 11.8"
NO Tool Holders with Machine

EQUIPPED WITH:

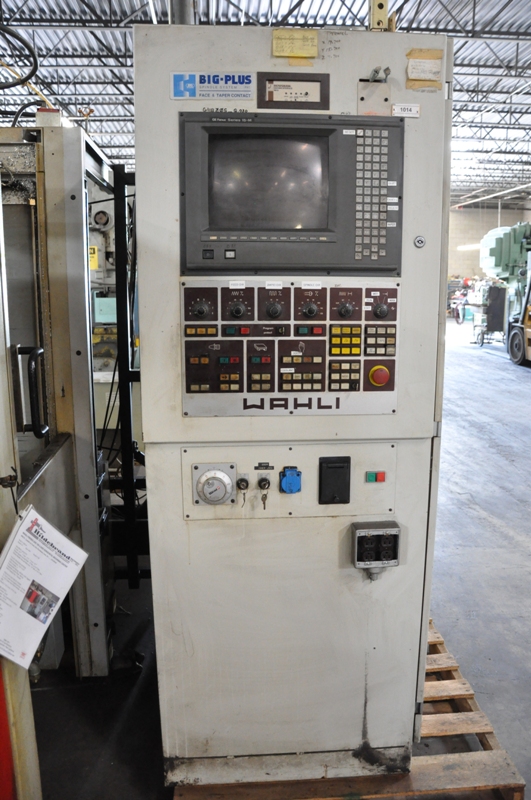

GE-Fanuc 15MB CNC Control with Color CRT
Fanuc Japan Drives

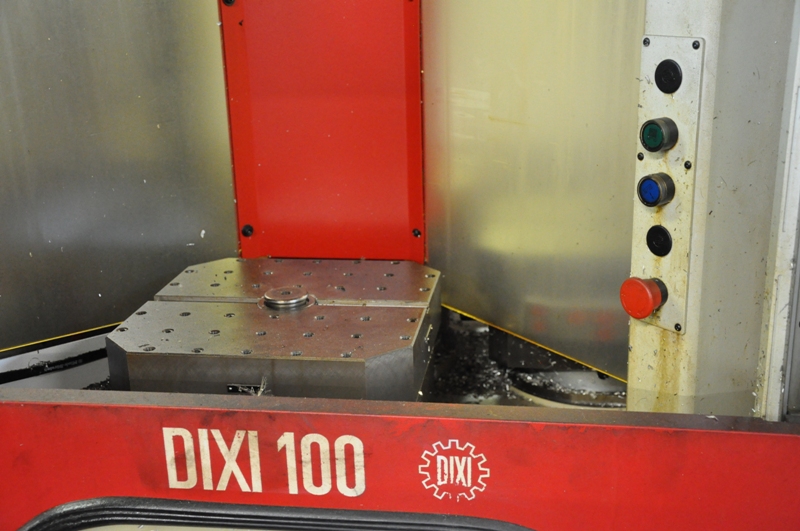

(4) 12.6" x 12.6" Pallets
BIG PLUS Tool Holder System (www.bigkaiser.com )
Renishaw Touch Probe System with Machine M112 Interface
Renishaw Touch Probe MP700, serial no. . 8G4941 ( probe tip broken)
Hardened and Ground Box Style Ways in Excellent Condition

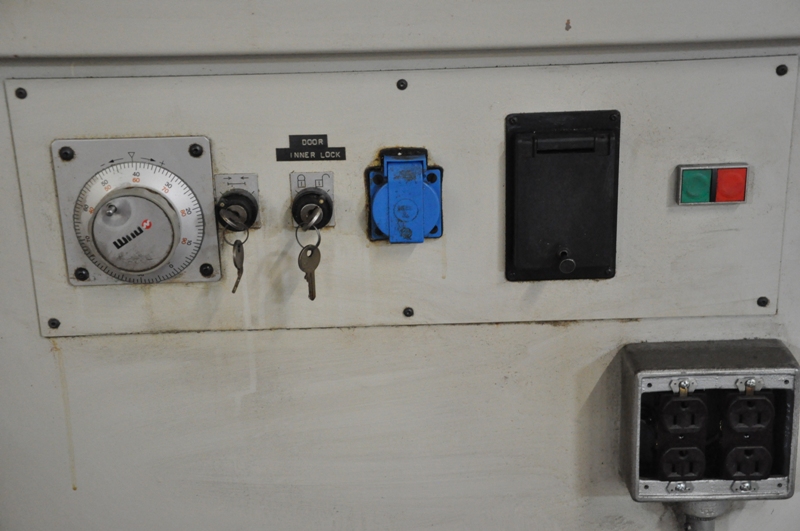

Full Work Area Enclosure Guarding
25 Female Pin Com Port
Hydraulic Oil Tank Capacity: 26.3 Gal.
Coolant Tank Capacity: 131 Gal.
Air Pressure (Clean & Dry): 84 PSI

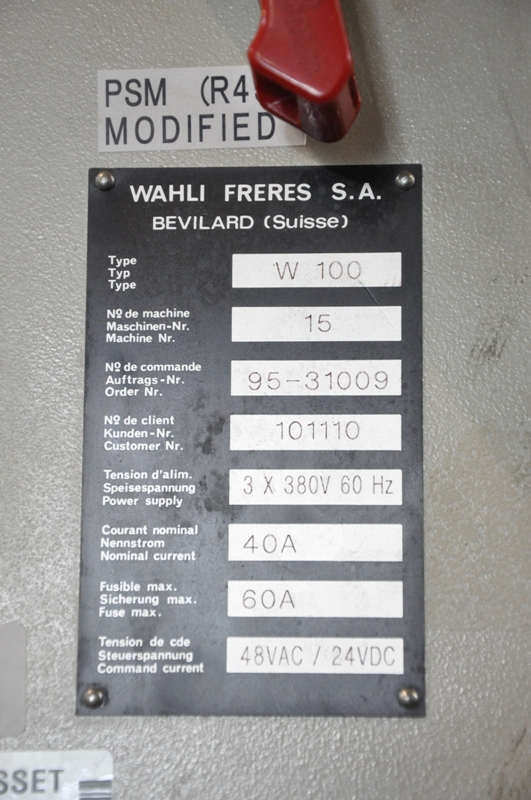

Power Supply: 380 Volts, 3 Phase, 60 Hz.
Max. Power Rating: 35 kW
With Electrical Transformer for Power Conversion to 380 Volts

OVERALL SIZE OF COMPONENTS FOR SHIPPING:

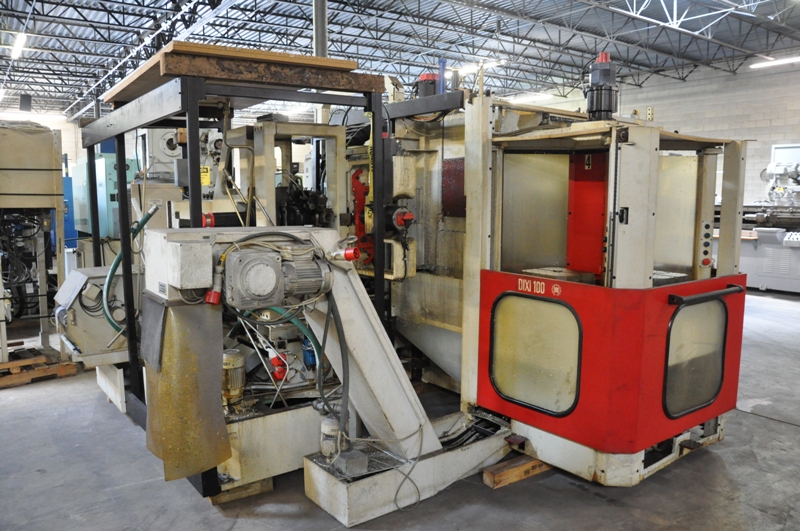

Base Machine: 126" Long x 80" Wide x 100" High on 3 ½" Blocks x 18,700 Lbs.
Electrical Panel /Control: 98" Long x 31" Wide x 82" High

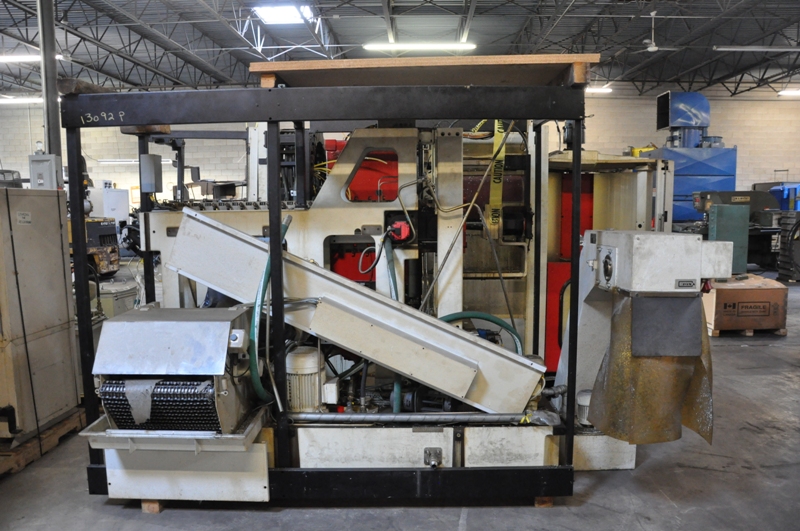

Chip Conveyor: 115" Long x 18" Wide x 55" High
Tool Changer Unit: 105" Long x 60" Wide x 81" High
Skid w/ Oil Cooler Unit: 48" x 41" x 83" High
Skid w/ Misc. Parts: 100" Long x 46" Wide x 25" High
Skid w/ Misc. Piping: 162" Long x 85" Wide x 24" High
Skid w/ Manuals and Misc: 36" x 32" x 22" High
