110 TON AMADA HG1003ATC SERVO-HYD CNC PRESSBRAKE W/AUTO TOOL CHANGER,MFG:2015 OUR STOCK NUMBER: 12335

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


HG1003AT
Press Brakes
CNC Pressbrake
used
26840 (LB)
2015
$0.00

Feature Video

Description

Specifications:

HG 1003 ATC

Tonnage (US) 110

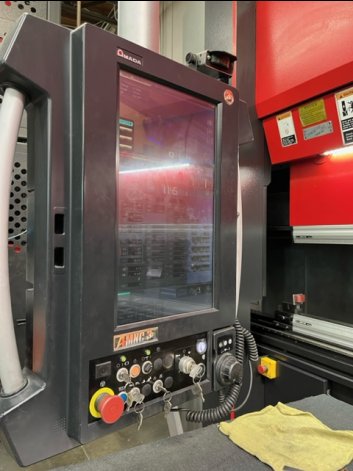

CNC Control AMNC 3i

Max. Bend Length 118.1"

Max. Stroke Length 9.8"

Open Height 23.4"

Distance Between Housings 106.3"

Crowning System (2) Hydraulic crowning cylinders

Ram Repeatability 0.00004"

Approach Speed 8.7"/sec.

Bending Speed 0.78"/sec. (max.) programmable

Return Speed 9.8"/sec.

Backgauge (8) axes including L-Shift

Overall Machine Dimensions (L) 238.1" x (W) 126.6" x (H)

Hydraulic Oil Capacity 12.7 gal.

Total Weight 26,840 lbs.

Supply Power 200V, 22kVA 200V, 41kVA

Foot Pedal (2) auto slide and remote

Bend Angle Control Auto Bi-S (Single)

Safety

Safety device, safety gate (tool change), light guard (slide pedal),

PILZ PSENvip P (operation)

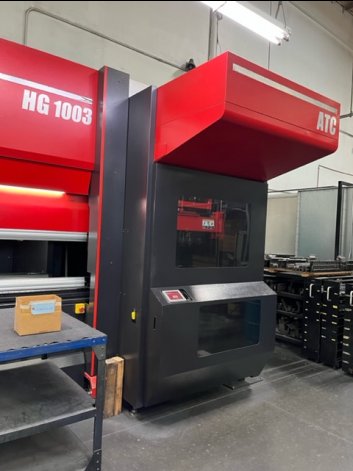

ATC Specs 1003

Tool Style AMTS ATC

Punch Stockers 15

Die Stockers 18

ATC Location Right hand

Max. Tool Layout Length 120.47"157.5"

Minimum Tool Pitch 0.196"

"V" Range0.157" - 1.57"

Punch Reversal Unit Yes

Punch Height 6.7" standard

Please click on links to view videos in operation:

https://youtube.com/shorts/BNRc6MdGzPw?feature=share

https://youtube.com/shorts/LS0oBMgiTbw?feature=share


https://youtu.be/fkSkrimNOpg
