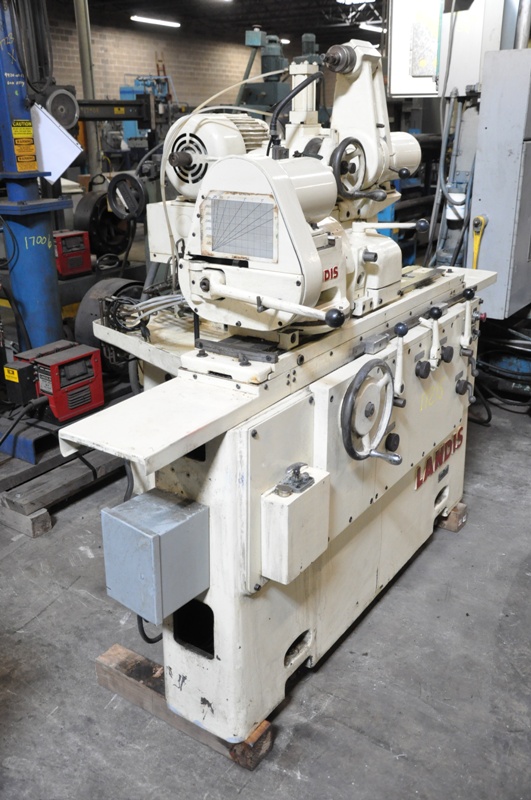

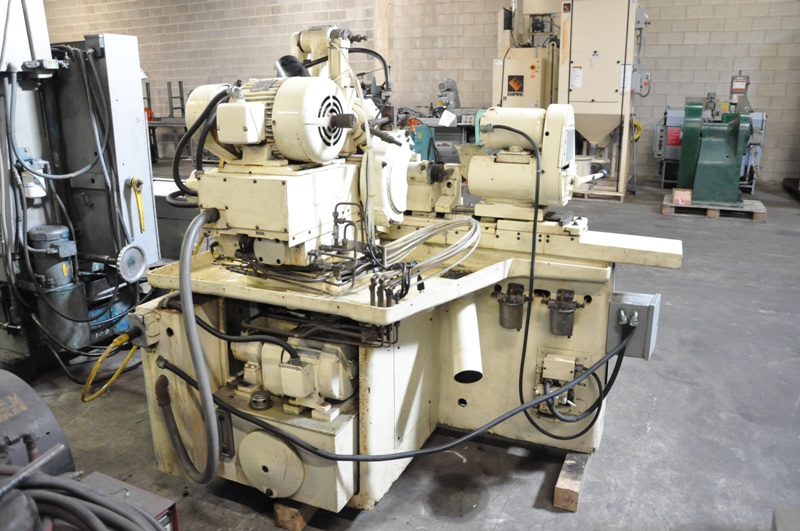

10" X 20" LANDIS UNIVERSAL CYLINDRICAL GRINDER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $5,500.00

HMC Stock No. 17215
Machine Serial No. 846-42
Machine Model No. 1R Universal
New Date: 1969

Nominal Work Swing: 10"
Distance Between Centers: 20"
Max. Dia. Work that can be Ground with Full Size Standard Wheel: 10-7/8"
Min. Dia. Wheel to Grind Zero Dia. Work on Centers: 10-1/2"
Height from Floor to Work Centerline: 41-3/4"
Traverse Speed: 2" to 240" Per Minute
Carriage Traverse per Turn of Hand Wheel: .200"
Swivel Table: 4" per Foot Graduation
20 Degree Included Angle
Work Rest Capacity: 1/4" to 4"
Grinding Wheel Size: 12" x 1" x 5" Hole Standard
Grinding Wheel Max. Width: 1-1/2"
Grinding Wheel Spindle Speeds: 2000 and 2530
Min. Diameter of Worn Grinding Wheel: 7-1/2"
Max. Distance Wheel Centerline to Work Centerline with Hydraulic Infeed: 12-1/2"
Min. Distance Wheel Centerline to Work Centerline with Foot Stock Removed: 3-1/2"
Work Dia. Reduction per Revolution of Hand Wheel: .100"
Work Dia. Reduction per Revolution of Fine Feed Knob: .001"
Min. Feed Graduations on Diameter: .000050"
Grinding Wheel Swivel Range: 90 Degrees Each Way
Internal Grinding Spindle Speed: 18,500 RPM
Headstock Work Center: #10 Jarno
Footstock Work Center: #6 Jarno
Headstock Swivel Range: 120 Degrees
Work Speeds: 60, 90, 150, 225, 400, 600 RPM
Diameter Hole Through Spindle: 1"
Headstock Spindle Nose: 5A2

EQUIPPED WITH:

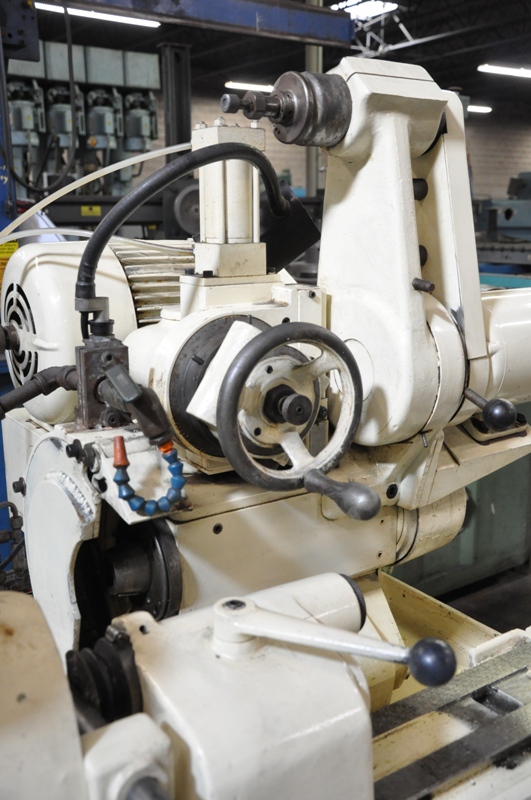

Swing Down Internal Attachment
Table Mounted Wheel Dresser
NO Wheel Arbor
NO Coolant System
5 HP Main Motor
Wired for 3 Phase, 60 Cycle, 230/460 Volts

Overall Size: 80" L-R x 60" F-B x 70" H
Weight: 5,000 Lbs.
