10" X 18" GER UNIVERSAL CYLINDRICAL GRINDER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


RH-L-450
UNKNOWN
Grinders
Cylindrical, Universal
used
4550 (LB)
0
$4,950.00

Description

Description & Specifications

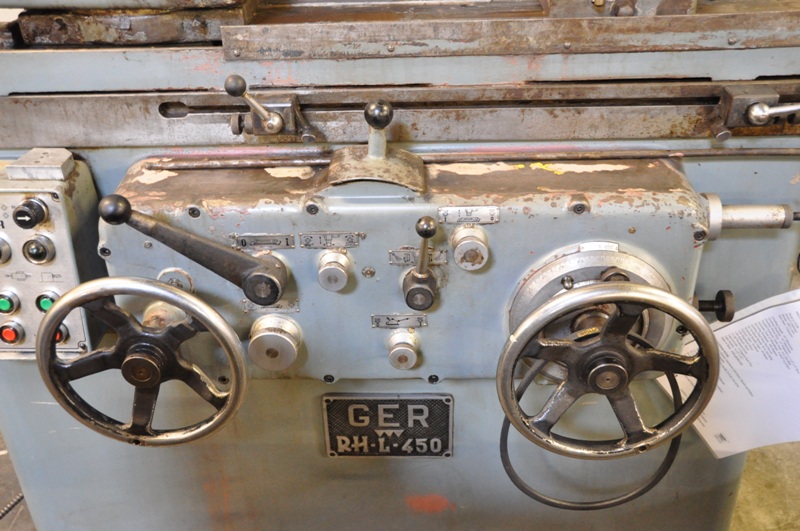

10" X 18" GER UNIVERSAL CYLINDRICAL GRINDER

PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $4,950.00


Stock # 15199
Serial # Unknown
Model: RH-L-450
New Date: Unknown

Grinding Length: 18" Maximum
Grinding Diameter: 10" Maximum
Grinding Wheel Size: 12" Diameter x 1-1/2" x 5" Bore
Variable Hydraulic Table Feed: 4 to 240 IPM
Automatic Feed of Wheelhead: 0.0002" to 0.003"

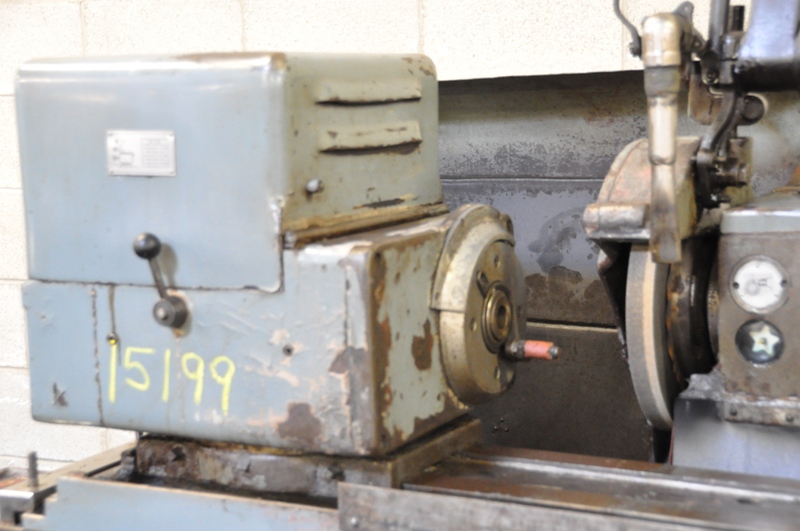

Swiveling Workhead: 360 Degrees
Grinding Head Does Not Swivel
(6) Workhead Speeds: 40 to 260 RPM
Workhead Spindle Taper: #4 Morse
Tailstock Taper: #4 Morse
3 HP Wheelhead Motor
1 HP Hydraulic Motor
1/2 HP Workhead Motor
Table Swivels: 10 Degrees Each Way
Table Surface: 6-1/2" x 43"
Made in Spain www.germh.com

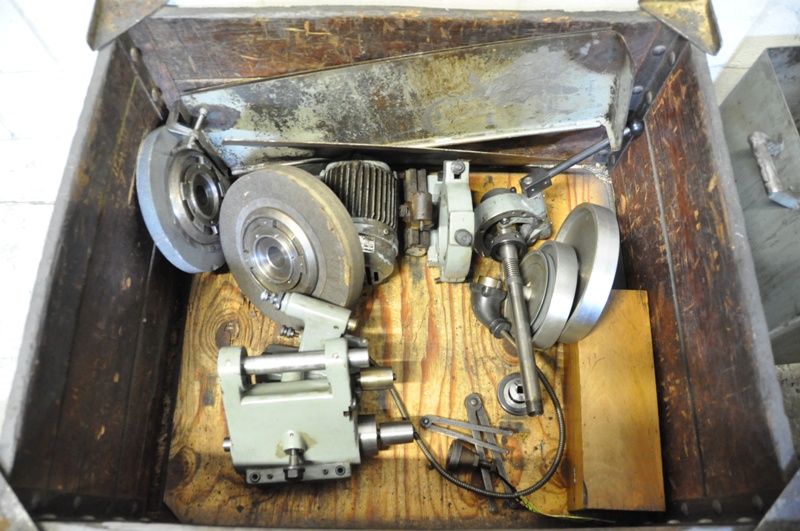

EQUIPPED WITH:
Swing Down Internal Attachment with Motor, Spindle and Pulleys
(3) Assorted ID Spindles
(2) ID Spindle Pulleys for Speeds 2118 & 2740 RPM
Plunge Grinding Cycle
(3) Wheel Mounting Hubs
Table Mounted Wheel Dresser with Diamond
(1) Work Support Rest
5C Lever Type Collect Closer System for Workhead
Hydraulic System is Built into Base of Machine
Separate Coolant Tank & Pump on Wheels
Table Splash Guard
(2) Adjustable Table Traverse Stops
(2) Spanner Wrenches
Machine Operation, Parts and Schematics Manual

DIMENSIONS:
Overall Machine Size: 69" LR x 50" FB x 64" High x 4,400 Lbs.
Coolant Tank Size: 25" x 17" x 30" High x Estimated 150 Lbs
